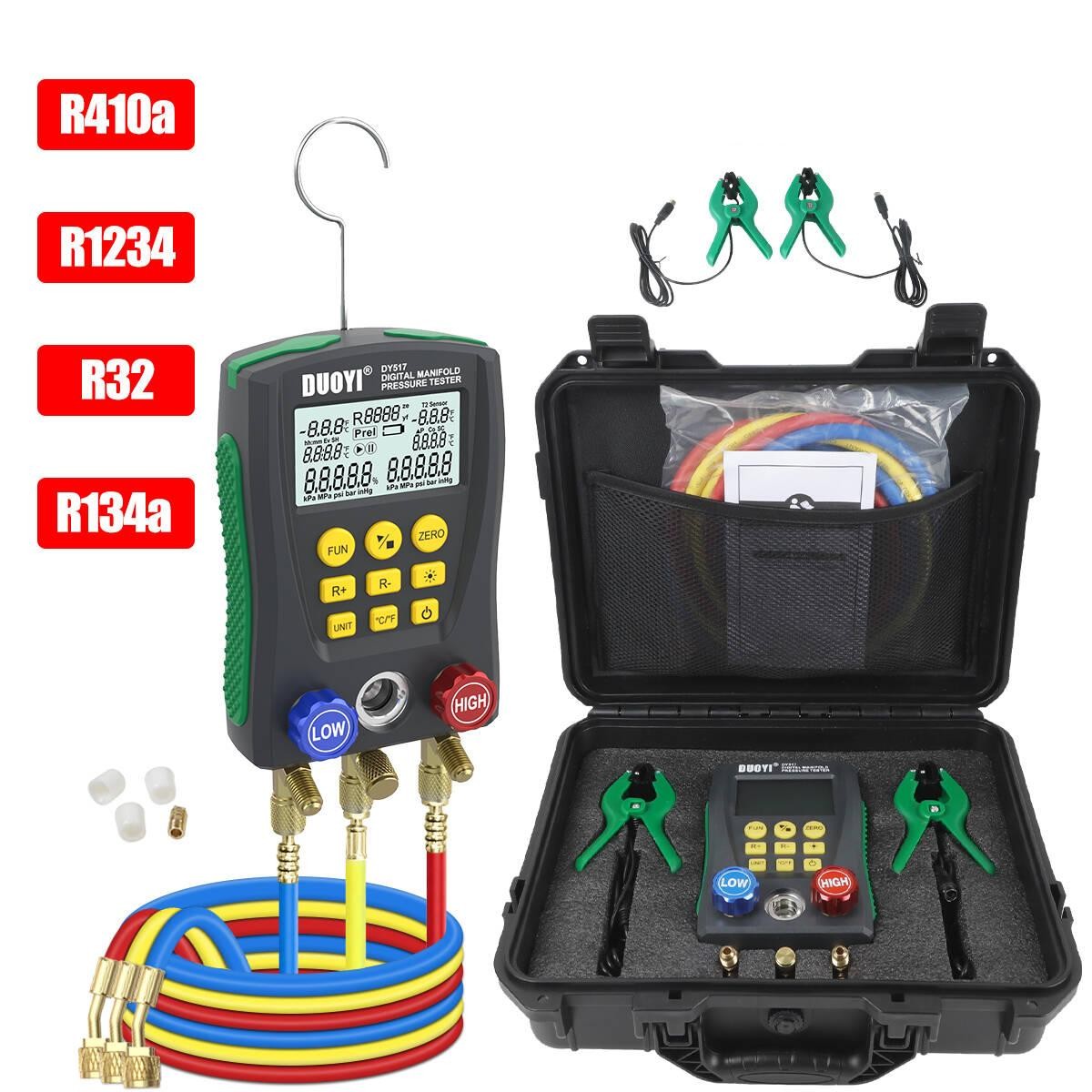

HVAC Digital Manifold Gauge Set Refrigeration Vacuum Pressure Temp Test w/Hoses For Sale

HVAC Digital Manifold Gauge Set Refrigeration Vacuum Pressure Temp Test w/Hoses:The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage. It can measure double pressure at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.Feature:
Double pressure test, double temperature testDigital reading, multi-unit switchingLarge-size LCD display, LCD backlight supportCalculate the degree of subcooling and superheatingTest the percentage of vacuum measurement; pressure leak measurement, leak time speed record Long-life valve switch, 1/4 inch standard interface designBuilt-in 32-bit digital processing unit and high-precision data acquisition unitBuilt-in 89 kinds of refrigerant pressure-evaporation temperature databaseEvaporation / Condensation Pressure &Temp TestThe lower the pressure and temperature of the evaporation(Ev) / condensation(Co) are, the more efficient the refrigeration cycle and the greater the refrigeration capacity will doHigh / Low-pressute Temp Test
Test the temperature of the refrigerant in the high / low-pressure pipes of the air conditioning systemPressure Leak Test
Calculate the pressure difference between the initial test
pressure and the second test pressure to determine if the
refrigerant is leakingSuperheat ＆Subcooling Test
The higher the degree of superheat, the smaller the opening of the expansion valve (the refrigerant filling is less) can be determined.89 Refrigerant Types Setting & Observation Window
Built-in 89 kinds of refrigerant database, you can set different types of working refrigerants according to the car needs to fill. The refrigerant filing status can be observed through a visible windowDual Pressure & Dual Temperature Test
With automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needsBuilt-in Data Unit & Refrigerant Database
32-bit digital processing unit and high-precision data acquisition unit, high data and stabilityViewable Window & Lcd Display
It can be set according to the type of refrigerant that the car needs to fill, the refrigerant filing status can be observed through a viewable window.Applicable Scene
This digital manifold gauge is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage.Compatible with 89 Kinds of Refrigerants:
R11 R113 R114 R115 R116 R12 R123 R124 R125 R1270 R13 R134A R14 R141B R142B R143A R152A R170 R21 R218 R22 R227EA R23 R236EA R245CA R245FA R290 R32 R401A R401B R401C R402A R402B R403A R403B R404A R405A R406A R407A R407B R407C R407D R407E R408A R409A R41 R410A R410B R411A R411B R412A R413A R414A R414B R415A R415B R416A R417A R418A R419A R420A R421A R421B R422A R422B R422C R422D R423A R424A R425A R426A R427A R428A R50 R500 R501 R502 R503 R504 R507A R508A R508B R509A R600 R600A R717 R744(Co2) R1234Note: This pressure guage will read random numbers when it is powered on. You must press the ZERO key to clear the numbers after you power it on, and then you can use it normally.Specification:
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 KpaTemperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C–150°C test resolution: 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C), 0.1°F (-40°F–99.9°F), 1°F test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgtPackage Include:
1x Digital Manifold Gauge2x Temperature Clips1x Red High Side Hose
1x Blue Low Side Hose
1x Yellow Service Hose
1x Suitcase
1x User Manual
Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not includeNote:1.) The pressure measured by the digital manifold pressure tester is gauge pressure. Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar). The limit pressure is 10 Mpa (100 bar).
2.) The maximum operating pressure of the standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximately 20.68 Mpa, 206.8 bar.
3.) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. If the packed hoses do not match the pressure requirement, you can use suitable replacements for testing. Do not use and store the instrument in high temperature, high humidity, flammable, explosive, and strong electromagnetic fields.
4.) Please do not change the instrument\'s internal circuit, to avoid any damage to the instrument or danger occurring.
5.) Please wear qualified protective equipment to protect the user during testing.PaymentDelivery detailsTerms of salesAbout usContact usPayment1. We accept PayPal only.
