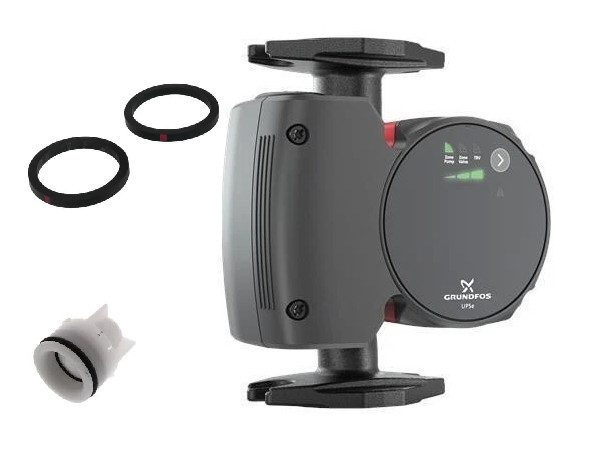

Grundfos UPMS 20-78 F High Efficiency ECM Circulator Pump ✦ Grundfos UPMS 20-78 F
High Efficiency ECM Circulator Pump
ECM Variable Speed · Cast Iron · Flanged Connection · MFG #5800056
Brand New 3-Speed ECM Efficiency Manufacturer Warranty Same-Day Dispatch Available Condition Brand New in Box | Includes: Pump · Manufacturer Documentation Product Images Product Overview
Key Features ⚡ ECM Permanent Magnet Motor
Electronically commutated motor with permanent magnet rotor and integrated frequency converter delivers high efficiency and lower energy use.
🔄 3-Speed Settings
Selectable speed settings let you dial in the exact performance curve your heating system needs.
🛡️ Dry-Running Protection
Built-in protection guards the motor against damage from air pockets or low-liquid conditions during startup.
🔧 Flanged Connections
Cast iron flange-to-flange connections provide a secure, reliable fit for standard hydronic piping configurations.
🌬️ Self-Venting Design
Robust startup and self-ventilating ability purges trapped air automatically, reducing service callbacks.
🖥️ Intuitive User Interface
Simple on-pump controls make selecting the right speed setting and monitoring performance straightforward.
Technical Specifications Model Number UPMS 20-78 F Manufacturer Part # 5800056 Motor Type ECM Variable Speed Permanent Magnet Max. Flow Rate 16 GPM (3.6 m³/h) Max. Head 25.6 ft (7.8 m) Voltage 115V, 60 Hz, Single Phase Speed Settings 3-Speed Electronic Control Max. System Pressure 174 psi (1.2 MPa) Min. Inlet Pressure 7 psi (0.05 MPa) at 203°F (95°C) Liquid Temperature Range 36°F – 230°F (2°C – 110°C) Pipe Connection Flanged, Cast Iron Casing Material Cast Iron Typical Applications Hydronic Heating, Outdoor Wood Boilers Restriction Not for use with flammable liquids (diesel, gasoline, etc.) Warranty Manufacturer Warranty What's Included ✔ Grundfos UPMS 20-78 F Circulator Pump ✔ Original Manufacturer Packaging ✔ Flange Gaskets ✔ Flow Check Valve Compatible Applications › Outdoor Wood Boilers › Hydronic Heating Systems › Radiant Floor Heating › Domestic Hot Water Recirculation › Zoned Circulator Systems › Residential Boiler Systems › Light Commercial Applications › Closed-Loop Heating Circuits
Replaces / Cross-References
GrundfosUPMS 20-58 F GrundfosUPS15-58FC Taco007e ECM Series Why Buy From Us 📦 Fast Shipping
Orders processed same day or next business day. Securely packed to arrive in perfect condition.
🏭 100% Genuine
Brand new, genuine Grundfos product — not a knockoff or aftermarket substitute.
💬 Responsive Support
Questions before or after purchase? Message us anytime — we respond quickly and stand behind every sale.
🌟 Trusted Seller
Thousands of satisfied buyers. Check our response — we've built our reputation on quality and reliability.
