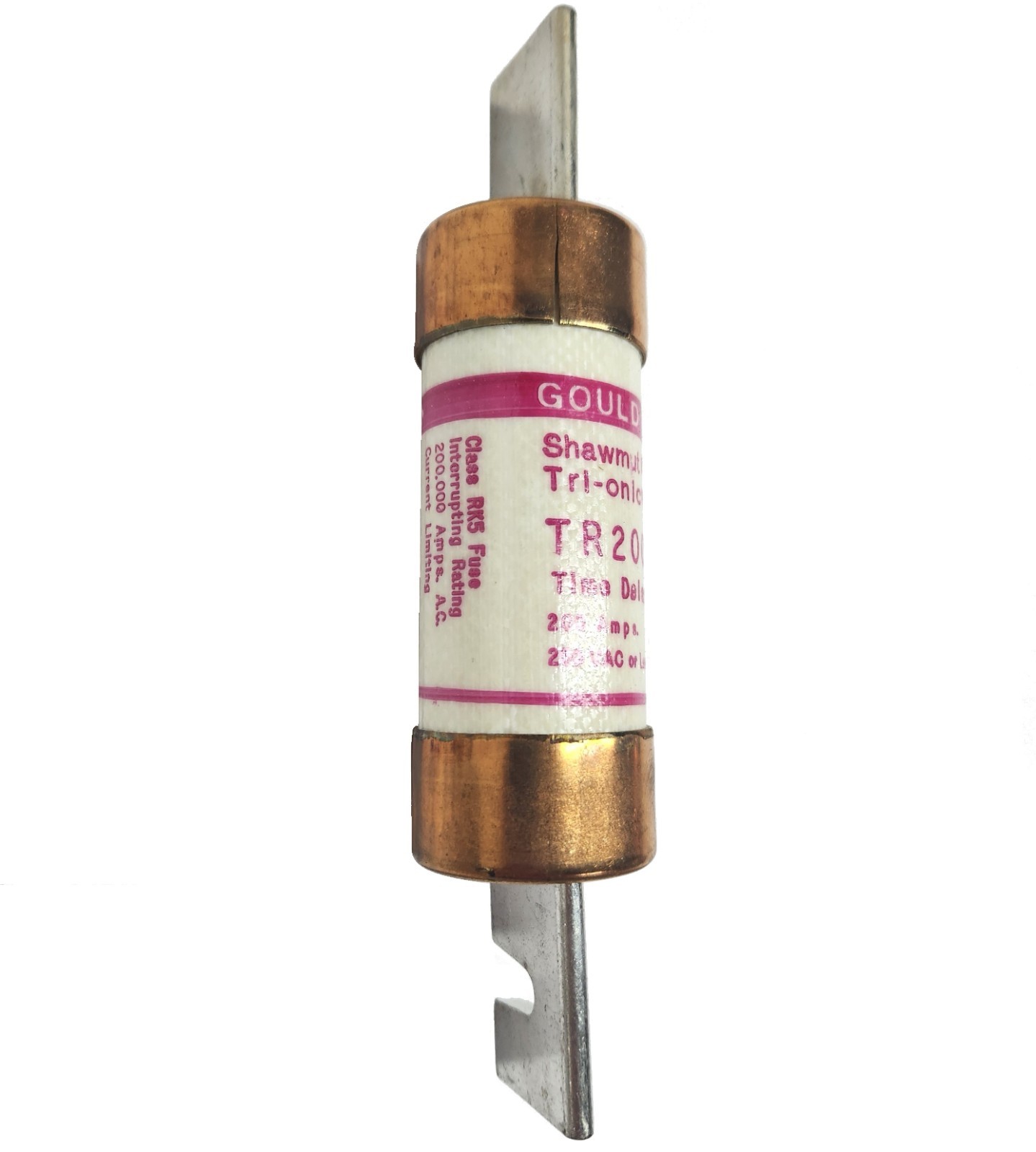

Gould TR200R Shawmut Tri-onic 200A 250Vac RK5 Blade Time Delay Fuse
Made In Mexico
.84 lbs
The Gould/Ferraz Shawmut TR200R is a 200A, 250VAC Class RK5, dual-element, time-delay fuse designed for motor and transformer protection. It features a current-limiting design to minimize fault current and a rejection-style body for safe installation, measuring approximately 7.125\"x1.56\"
Key Specifications:Manufacturer: Gould / Ferraz Shawmut (now Mersen)Model: TR200R (Tri-Onic)Amperage Rating: 200 AVoltage Rating: 250 VAC / 250 VDCInterrupting Rating: 200kA AC / 20kA DCClass: RK5 (Time Delay)Dimensions: ~7.125\" x 1.56\" (7 1/8\" x 1 9/16\")Construction: Dual Element, Fiberglass Body
Features and Applications:Time-Delay: Engineered for motor start-ups and transformer inrush currents to prevent nuisance tripping.Rejection Feature: Designed to prevent replacement with non-rejection type fuses.Applications: Ideal for protection of motors, transformers, and feeder circuits.
