BALDWIN A PARKER HANNIFIN BRAND | HEAVY-DUTY FILTRATION
OD1 147.6mm / OD2 220.7mm | H 736.6mm | ID 2-3/16\" (55.6mm) | Ford F8HZ-9601-A | GMC 8997221
🔗 CROSS-REFERENCE — 170 CONFIRMED CROSSES | FORD / GMC / IHC / MACK / FLEETGUARD / DONALDSON / WIX / MOTORCRAFT / AC-DELCO / LUBER-FINER / MANN / HENGST / PUROLATOR / CAT / CASE / GRADALL & MORE

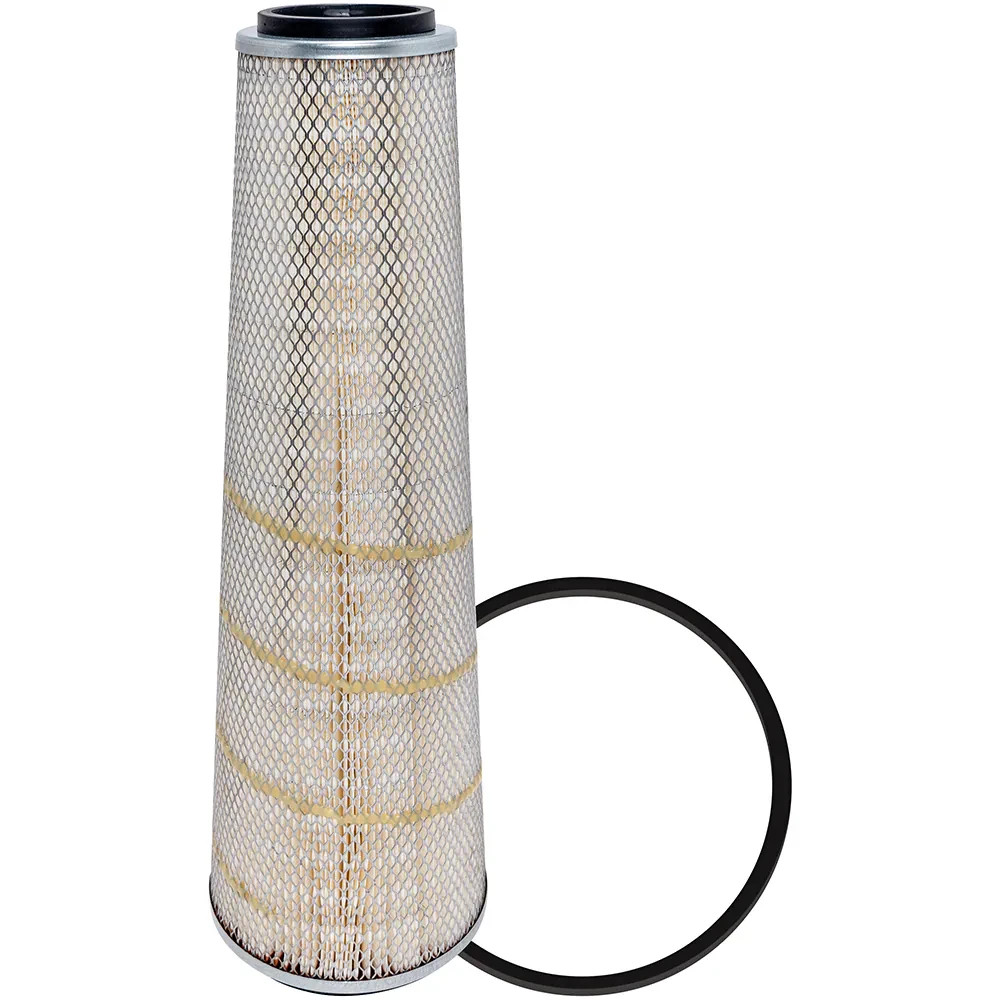

ⓘ PA2500 is a large Axial Seal Air Element (Inside-Out Flow, One End) for Ford, GMC, International, White-GMC Trucks and Advance Mixer, Gradall Equipment. Replaces Ford F8HZ-9601-A, GMC 8997221, International 503634-C91, Mack 57MD29503. Key crosses: Fleetguard AF931M/AF4527M, Donaldson P129472/P185025, WIX 42611, NAPA 2611, Motorcraft FA665, AC-Delco A759C/A2159C, Luber-Finer LAF9472, Mann C22835, Hengst E840L, Purolator A83058, CAT 3I0223/7W7426, IHC 503634C91, Gradall 46981590, Oshkosh 120854B, Mercedes-Benz 9570940004, Volvo 3131435. OD 5-13/16\" (147.6mm) to 8-11/16\" (220.7mm) × H 29\" (736.6mm) × ID 2-3/16\" (55.6mm). Conical shape, inside-out flow, one end. [2] attached gaskets + [1] included. 6.8 lbs. Related short version: PA2540. MSRP $172.71. Parker Hannifin Brand. 170 confirmed crosses.
WHY THIS FILTER
● Baldwin PA2500 — Large Axial Seal Air Element (Inside-Out Flow) for Ford / GMC / International / White-GMC Trucks and Advance Mixer / Gradall Equipment — directly replacing Ford F8HZ-9601-A / D8HZ-9601-A, GMC 8997221, International 503634-C91, and Mack 57MD29503 — axial seal air element; conical shape; inside-out flow direction; one end; [2] attached gaskets + [1] included; OD tapers 5-13/16\" (147.6mm) to 8-11/16\" (220.7mm); H 29\" (736.6mm); ID 2-3/16\" (55.6mm); 6.8 lbs; related short version PA2540; 170 confirmed crosses; MSRP $172.71; Parker Hannifin Brand.
● 170 confirmed cross-references spanning Ford Motor, GMC/GM, International/IHC, Mack, Fleetguard, Donaldson, WIX, Motorcraft, AC-Delco, Luber-Finer, Mann, Hengst, Purolator, Hastings, CAT, Case/IHC, Gradall, Oshkosh, Mercedes-Benz, Volvo, Hyundai, Leyland, Foden, Sisu, Gardner Denver, Hifi, Gonher, Nelson, Guardian, and more — Ford F8HZ-9601-A/D8HZ-9601-A, GMC 8997221/15586918/2010760, IHC 503634C91/587425C1/483316C1, Mack 57MD29503, Fleetguard AF931M/AF4527M/AF1837, Fleetrite AFR8931M/AFR81837, Donaldson P129472/P185025/P132324 + multiple EBA/ECG series, WIX 42611, NAPA 2611, Carquest 87611, Fram CA3518, Motorcraft FA665, AC-Delco A759C/A759CF/A2159C/ACA121, Luber-Finer LAF9472/LAF8044, Champion LAF9472/AF9472, Mann C22835, Hengst E840L, Purolator A83058/A84463, Sakura A8583, CAT 3I0223/3I0342/7W7426, Gradall 46981590, Oshkosh 120854B, Mercedes-Benz 9570940004, Volvo 3131435, Hyundai 2811343600; MSRP $172.71 — available here at $59.99 with free shipping.
● 29\" tall axial seal air element — one of the largest in the heavy truck market; inside-out flow; conical shape; PA2540 is the short version — the PA2500 at 29\" (736.6mm) is a large-format axial seal air element used in heavy truck cab-over and conventional applications with high-capacity air housings; the conical shape with inside-out flow direction means air enters through the outer surface and exits through the inner core; [2] gaskets are pre-attached for convenient installation; if your application has insufficient clearance for the 29\" length, the PA2540 is the related short version; this element spans Ford conventional and cab-over trucks, GMC medium/heavy duty trucks, International 9600/9700 series, White-GMC trucks, and Gradall excavator/construction equipment and Advance Mixer concrete trucks.
● Parker Hannifin Brand — genuine Baldwin quality — MSRP $172.71.
● Free shipping to all 48 contiguous US states — no handling fees, no hidden charges, no surprises at checkout.
2010760 / 2009540 / 587425C1 /
483316C1
(Trucks incl. 9600/9700)Mack: 57MD29503Case: 483316C1 /
587425C1
(Case-IHC shared)White-GMC trucksCross References:
Fleetguard: AF931M /
AF4527M / AF1837
Donaldson: P129472 /
P185025 / P132324
WIX: 42611
NAPA: 2611
Carquest: 87611
Fram: CA3518
Motorcraft: FA665
AC-Delco: A759C /
A759CF / A2159C
Luber-Finer: LAF9472
Hastings: AF583 / AF740
Mann: C22835
Hengst: E840L
Purolator: A83058 /
A84463
Guardian: G129472
(excavators & equipment)Oshkosh: 120854B
(municipal trucks)Advance Mixer
(concrete mixer trucks)CAT: 3I0223 / 3I0342 /
3I0387 / 7W7426
(construction Denver:
2010760
(compressor 3131435Hyundai: 2811343600Leyland: BBU5860 /
RDK9018Sisu: 1293400121Foden: Y04526110
Shape: Conical
Flow: Inside-Out
Seal: One EndOD1: 5-13/16\" (147.6mm)
OD2: 8-11/16\" (220.7mm)
H: 29\" (736.6mm)
ID: 2-3/16\" (55.6mm)
Weight: 6.8 lbsGaskets:
[2] Attached
[1] IncludedRelated Short Version:
PA2540
(same application,
shorter length;
verify housing
clearance before
ordering PA2500
vs PA2540)Hifi-Filter: SA10881
Gonher: GA372
SF-Filter: SL8880
Refilco: AF2611
Nu-Tech: N0191
AP Lockheed: LK3669MSRP: $172.71
Parker Hannifin Brand
170 confirmed crosses
✓
