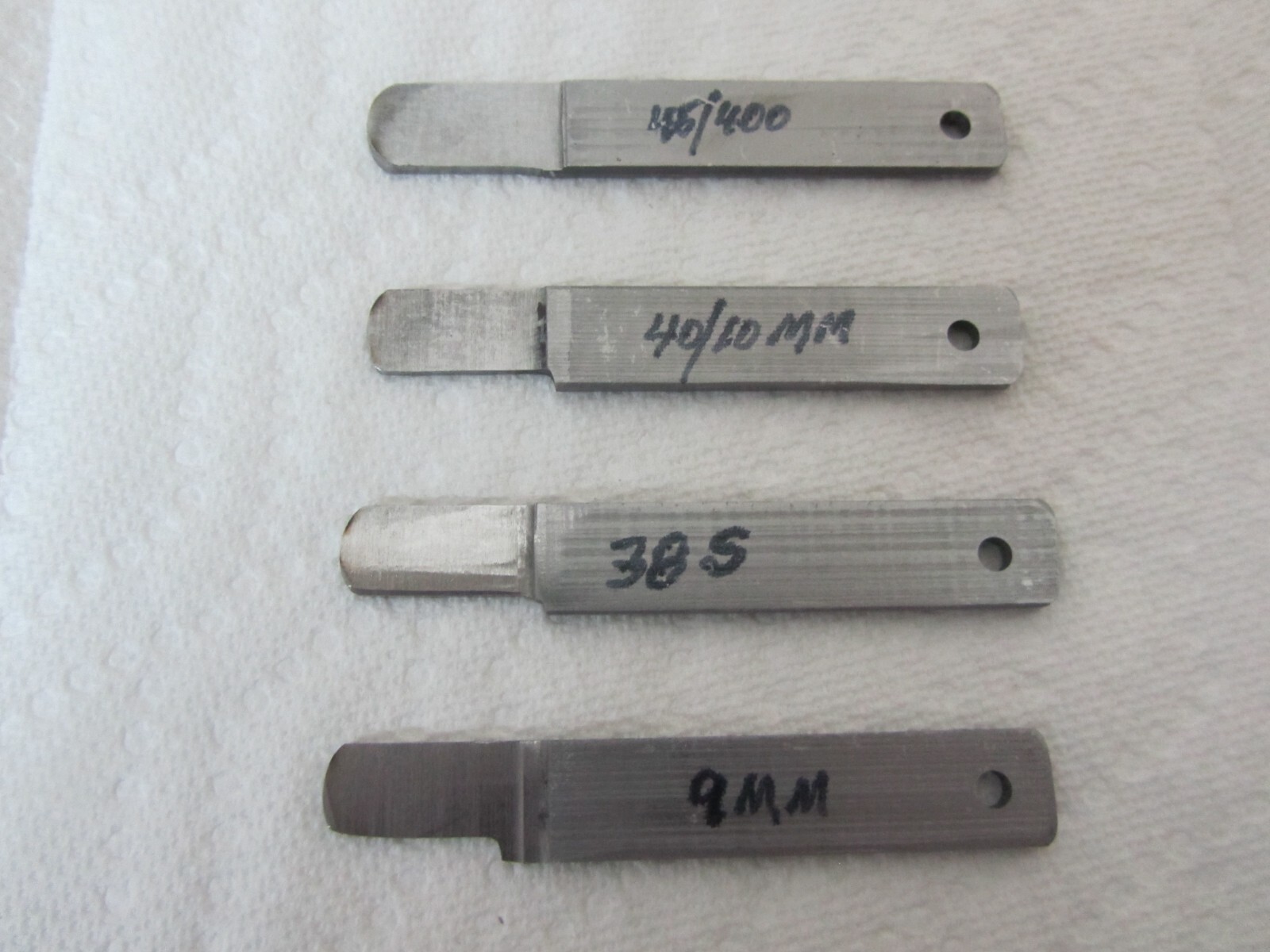

Galloway #4 1911 Extractor Gauge Set of 4 Gauages:
$25.99
The Galloway #4 1911 extractor gauge set of 4 in 45ACP/400 Corbon--40/10MM--38Super--9MM. These gauges are hand made in our shop, marked and tested. The 45/400-gauge thicknessis 0.0.750 0+/-0.003 The width is 0.4740 +/-0.005. The 40/10MM thickness is 0.0650 +/-0.003 width is 0.4190 +/-0.005. The 38Super is 0.0650 +/-0.003 width is 0.4130 +/-0.005. The 9MM thickness is 0.0650 width is 0.3930+/-0.005.
We recommend using an extractor tension setting tool and if replacing your extractor using one for your caliber from EGW also we recommend checking your firing pin stop for a good fitting in the extractor slot, too much slop can cause your extractor to do what's called Clocking and cause feeding problem's. We also recommend use a trigger pull gauge to test the tension on the extractor hook. you would be looking for around 24 to 28 ounces of pull. If you don't have a trigger pull gauge you can still set your tension you would want to feel some tension on your gauge when you slide it into place it should stay, there without falling out testing with dummy rounds cycling them slowly would help you determine the correct setting.You are buying a set of 4 extractor gauges all other items shown in pictures do not come with the set and are used to demonstrate these gauges and how to use them. As with all Galloway tooling if you're not satisfied there is a 30-day return on . We include a sheet of information to help you with setting your extractor. Thanks for looking 1911"s Forever
