Automatic In-Line Labeling Machine · Technical Documentation Automatic In-Line Labeling Machine
Automatic Page-Feeding Labeling Machine

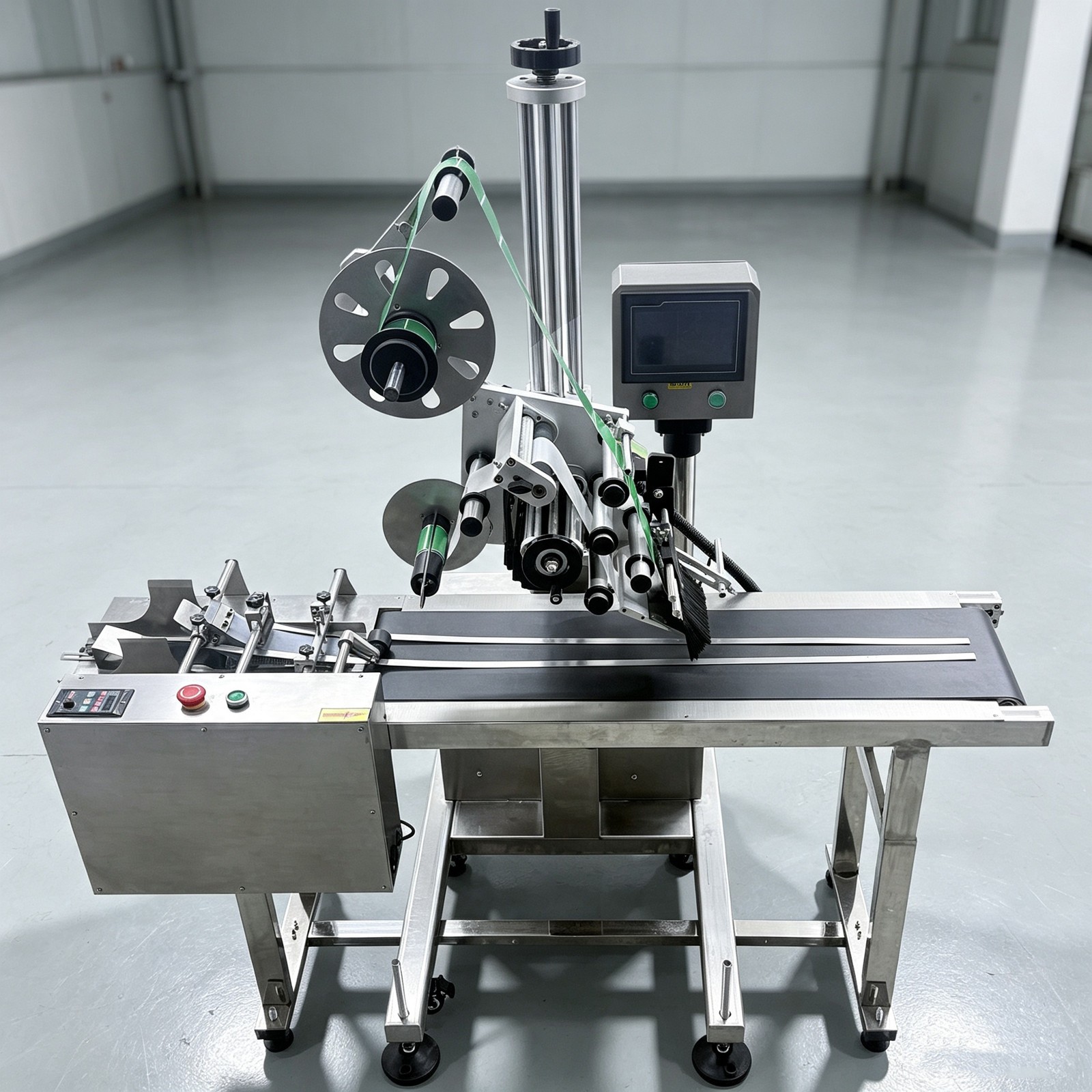

Automatic online flat labeling machine equipped with conveying equipment, suitable for automatic continuous plane labeling of boxes, plates and blocks. It has a wide range of applications, such as information labels on outer packaging boxes of products in food, daily chemicals, pharmaceuticals and other industries. It adopts man-machine interface touch screen operation and digital control over labeling actions, contributing to easy operation, automatic labeling, and stable and accurate positioning.
This machine can be equipped with a coder or inkjet printer to print dates of manufacture, batch numbers, bar codes and other information on the labels before labeling.
The flat bottle labeling machine adopts the sticker sticker paper, and the sticker adopts the rolling stick to finish the labeling process. The sticker machine has the advantages of clean sanitary and non mouldy. After the labeling, the sticker is beautiful and firm, and it will not fall off itself, and the production efficiency is high.
The function and characteristics of the flat bottle labeling machine: to improve the efficiency of the labeling and sticker, to attach the exact position, the quality and the high stability; to add the counting function of the production; to avoid the artificial labeling, the low efficiency of the sticker, the sticker and folds, the irregularity of the attached position, and to reduce the cost of the product effectively. Enhance product identification aesthetics and increase product competitiveness. The main material of the equipment is made of all aluminum alloy material, the whole structure is firm and beautiful, and the standard micro PLC+ standard sensor is used to control the electronic control system, and the equipment performance is stable.
Product Parameters Full-automatic In-line Labeling Machine Labeling Machine Voltage110V, 60Hz Page-feeding Machine Voltage220V, 50/60Hz Labeling Machine Power700W Body MaterialStainless-steel housing Conveyor Belt Width235 mm (9.25\") Conveyor Belt Length1 m (3.28 ft / 39.37\") Conveyor Belt Speed20 m/min (65.62 ft/min) Label roll inner diameter≥75 mm (≥2.95\") Label roll outer diameter≤250 mm (≤9.84\") Applicable label sizeWidth 150 mm (5.91\") × Length 180 mm (7.09\") Label output directionLeft-side output or front-rear output, determined by bag-placing orientation Production speed20–50 bottles/min (varies with bottle dimension and label length) Applicable bottle diameter / Bag width80–300 mm (3.15\"–11.81\") Labeling accuracy±0.039 inch (1 mm) Desktop Page Labeling Machine Output Speed20–50 PCS/min Label HeightW150 × L180 mm (5.91\" × 7.09\") Labeling Precision1 mm (0.039\") Roll Inner Side≥75 mm (≥2.95\") Roll Inner Side Diameter≤250 mm (≤9.84\") Power Supply220V, 50/60Hz Weight62 kg (220.46 lb) Package Size1570 × 54 × 51 cm (618.11\" × 21.26\" × 20.08\") Product Details and Advantages
1. High Labeling Accuracy
The labeling operation is stable and reliable, with neatly fitted labels. The equipment adapts to the labeling needs of various products and ensures consistent labeling results.
2. Intelligent Recognition
Equipped with a label detection sensor, it can accurately identify the label position, stably sense products, and effectively reduce missing and wrong labeling issues.
3. Automatic Counting
It can automatically count the number of labeled products, making production data intuitive and traceable. It facilitates production control and helps you keep track of the processing progress.
4. Adjustable Labeling Structure
The position of the labeling head can be flexibly adjusted, supporting up-down and front-back movement. It is compatible with labels of various specifications and adapts to different product labeling working conditions.
5. Adjustable Speed
The labeling operation speed can be set as required to match the capacity of different assembly lines. The speed adjustment operation is simple, making it easy to match the rhythm of the preceding and subsequent processes.
6. Intelligent Touch Screen
It is a high-definition touch panel with a simple and easy-to-understand operation interface. The parameter setting is convenient and efficient, which greatly improves the production debugging efficiency.
7. Label Pressing Device
Equipped with a brush-type label pressing structure to re-compact the labels, which can avoid label bubbling and make the labels firmly and flatly attached to the product surface.
8. Adjustable Feet
The frame is equipped with adjustable supporting feet, which can adapt to uneven ground, adjust the level of the whole machine, and make the equipment run more stably.
9. On-line Labeling for Assembly Line
It can be used in conjunction with conveyor tables and page separators and integrated into the production line to realize continuous on-line labeling and improve automatic production efficiency.
Operating Instructions
1.1 Configure power supply
1.2 Adjustment of Labeling Position
(1) Touch the screen manually to change the number to adjust the labeling position (front and rear);
(2) Turn the handwheel to adjust the labeling position (horizontal) through the horizontal guide rail.
1.3 Adjustment of Labeling Tape Tension
For continuous labeling, the label tape should have a suitable and continuous tension. If the tension is too small or slack, it will affect the stability of the label output.
1.4 Adjust the tension of the brake belt of the label tape disc. The tighter the brake belt is, the greater the label tape disc’s rotating resistance will be and also the greater the label tape\'s tension will be.
Label detection photoelectric initialization adjustment (usually does not require adjustment unless the label color is very similar to the label base paper color)
1. Press the \"+\" and \"-\" buttons simultaneously, and the small light will flash.
2. Move back and forth 5-7 times between the two labels.
3. Press the \"-\" key. Settings completed.
Test whether the label detection photoelectric is successfully set
When the label detection photoelectric is aligned with the label, the small light remains on.
When the label detection photoelectric is aligned with the label base paper, the small light goes out.
Represents successful set up.
1.5 Electric eye adjustment
A: Sensitivity coarse adjustment
B: Sensitivity fine adjustment
When the bottle passes through the Sensor Electric Eye, the small light on the fiber optic amplifier should light up.
If the small light does not light up, it is necessary to adjust the sensitivity of the Sensor Electric Eye.
Firstly, align the Sensor Electric Eye with the bottle, then use the blue small screwdriver inside the accessory bag to roughly adjust the Sensitivity coarse adjustment and rotate it counterclockwise to the end, then slowly rotate it clockwise. Stop rotating until the small light on the fiber optic amplifier lights up. Then slightly rotate the Sensitivity fine adjustment adjust it clockwise.
Note
The adjustment of the Sensor Electric Eye will be completed before the machine leaves the factory, unless the Sensor Electric Eye is not working, otherwise there is no need to adjust it.
Precautions
- Do not put your hands or foreign objects into the conveyor belt, labeling head, or roller area while the machine is running.
- Before adjusting the labeling position, replacing labels, or performing maintenance, you must press the emergency stop switch and cut off the power.
- Do not wear loose clothing or jewelry during operation. Long hair must be tied back and a protective cap must be worn to prevent it from being caught in the machine.
- The machine is equipped with an emergency stop switch. In an emergency, press it immediately and the machine will stop quickly.
- After the emergency stop switch is pressed, the fault must be cleared and the switch must be reset before the machine can be restarted.
- Do not press the emergency stop switch unnecessarily while the machine is running, as this may affect the normal service life of the machine.
Desktop Page Labeling Machine:
- The opening / closing time should be greater than 30 seconds, otherwise it will easily damage electrical components.
- The parameters of the servo driver and inverter in the chassis cannot be changed. If there is any change, the machine may not be able to move.
- When you operate the machine, you cannot bend the optical fiber. If it is bent, it may cause a labeling error, and you will need to replace the optical fiber. When replacing the optical fiber, make sure the optical fiber specifications are consistent.
- Do not change wires, data lines, or air hose interfaces at random, and protect them from damage.
- During formal start-up and labeling, make sure the \"rush\" button on the touch screen is in the released state. If it is pressed, the machine cannot \"start\" or \"label\", although the other buttons will still work normally.
- The touch screen should avoid scratching, so as not to cause poor touch response.
- The main rubber wheel should be cleaned with alcohol. If the surface is sticky, do not remove it with sharp tools, so as not to cause damage.
- The conveyor belt should be kept clean. If the dirt is hard to wipe off, use a brush to remove it.
- The driving belt of the main labeling motor should be checked once a month. If it is too loose, adjust it accordingly. When adjusting, loosen the fixing screws of the servo motor and tighten the belt. Note that the belt should not be stretched too tightly, as being too tight will cause mechanical resonance noise from the motor.
- Bearing parts should also be checked regularly to prevent screws from loosening and affecting operation.
The labeling section operates at 110V and can be directly connected to a 110V power supply.
The conveyor belt section requires a 220V power supply. A step-up transformer is supplied with the machine to boost the 110V power to 220V for the conveyor belt.
The two sections are powered independently and separately.
Please wire the machine strictly in accordance with the wiring manual. It is strictly forofferden to connect the 110V labeling head to a 220V power supply.
Item Included (160048): Automatic In-Line Labeling Machine, Automatic Page-Feeding Labeling Machine *1
You can make order with no worry.
Any concern just feel free to let us know, we\'ll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months\' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
