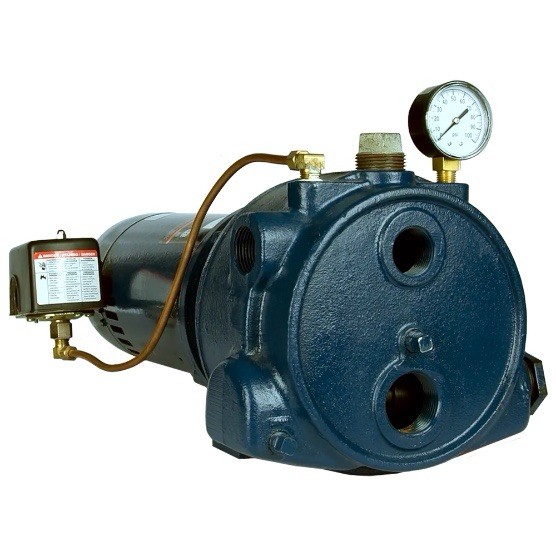

The Franklin Electric 91140007 Model FP07CI-C RM2 Pro Series Cast Iron Convertible Jet Pump is designed for depths up to 100'. A strong cast iron pump casing and stainless steel impeller ensure minimum downtime. Designed and engineered by Franklin Electric - a brand you know and trust.
** Image is stock photo and may not match exactly **
Pump Specifications:
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 3/4 HP, Single Phase, ODP
Impeller Material: Stainless Steel
Ports: 1-1/4" x 1" Female NPT
Maximum Water Temperature: 140 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
The convertible jet pump Pro (RM2) series is equipped with a stainless steel impeller for high performance and longevity. Capable of lifting from 100' and delivering up to 23 gallons per minute from either shallow well or deep well make this convertible jet pump series the perfect choice.
RM2 Series Features & Benefits:
Heavy-duty cast iron case with 1-1/4" inlet and (3) 1" outlets
Stainless steel impeller ensures optimum durability
Thermoplastic diffuser is precision molded for optimum efficiency
Each pump factor equipped with internal shallow well injector easily replaced with bypass plugfor deep well operation
Shaft coupling designed for easy removal of keyed shaft motor
Carbon/ceramic faced mechanical shaft seal with nitrile elastomer ensures positive sealing at allpressures
High service factor 56C-frame motor for maximum performance
Adjustable pressure switch is factory installed and set at 30/50 psi
Maximum temperature of 140 °F/60 °C; 150 PSI maximum working pressure
NSF/ANSI/CAN 372 Certified
Ratings
HP 60Hz 3/4 hp
Frequency 60 Hz
Phases Single-Phase
Volts 115 VAC / 230 VAC
Amps at 230 Volts 7.4 A
Operation
Motor Enclosure ODP
Liquid
Maximum Fluid Temperature 140 °F
Materials of Construction
Pump Body Material Cast Iron
Impeller Closed
Impeller Material Stainless Steel
Seal Material Carbon/Ceramic, Nitrile
Seal Mechanical Seal
Dimensions
Discharge Threaded - FNPT
Discharge Diameter 1 "
Suction Diameter 1.25 "
Suction Threaded - FNPT
Pump Length 19.15 "
Product Weight 51 lb
Product Weight with Pack 51.5 lb
Carton Length 25.75 "
Carton Width 12.38 "
Carton Height 14.88 "
Pump Height 8.76 "
Pump Width 8.13 "
Other
Drinking Water Agency Approvals NSF/ANSI 372
Warranty Standard Time 12 Month Install / 24 Month Manufacturing
Applications Ideal for supplying fresh water to homes, cabins, farms that can be configured for a variety of pressures and flow choices
