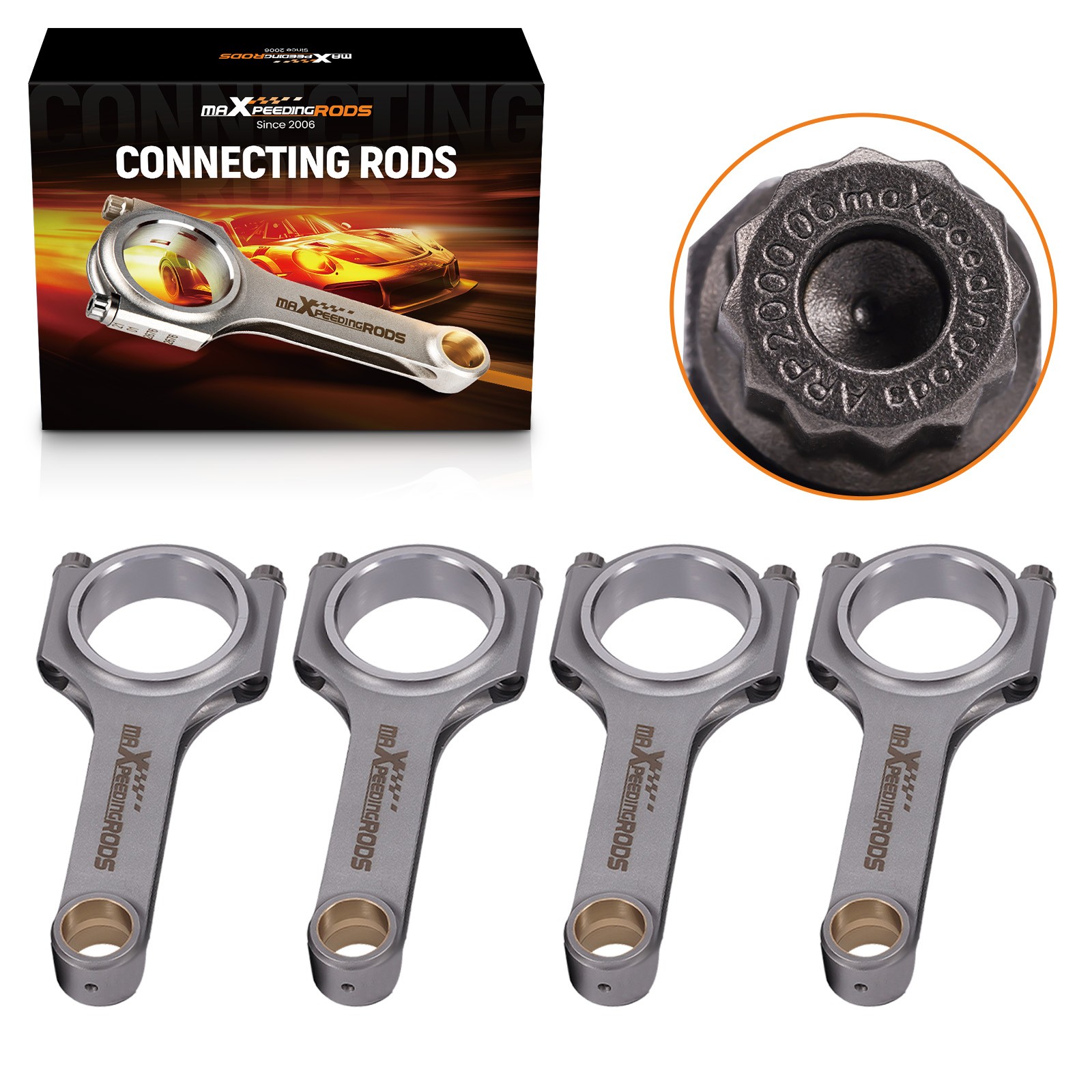

Forged 4340 H-Beam Connecting Rods+ARP Bolts For VW 1.8T Audi TT Quattro 20mm
All modifications must be installed by licensed mechanics and in compliance with your local modification
ARP Bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Forged 4340 Steel
Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.
H-Beam Design
H-Beam helps improve stiffness, reduce stress risers and weight.
Horsepower Rating
200HP/piece
High Precision Control
Balanced within:+/- 1 gram per rod,
Bores finished to:+/- .005mm or .0002".
ARP 2000 Bolts
With Standard Original ARP 2000 Bolts.
Upgradable ARP L19 Bolts
Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.
Application
For Audi / Volkswagen 1.8L 20V DOHC Turbocharged Engine Engine Family For EA113 1.8T (1781cc I4) SUPPORTEDENGINECODES: For AEB, AGU, ARZ, AUM, APY, AMK, BAM, ANB, ATW, AVC For Audi A3 1.8 20vT AGU/ARZ/ARX/AUM/AQA 1996–2003 For Audi S3 1.8 20vT APY AMK 1999–2001 For Audi S3 1.8 20vT BAM AEB 2001–2003 For Audi A4/A6 1.8 20vT (AEB ANB APU ARK) For Audi TT Quattro 1.8T BAM AEB For VW Golf 1.8T (GTi AGU ARZ) For VW Jetta New Beetle 2001–present For VW Passat 1.8T (AEB ANB ATW) For VW Beetle 1.8T (AVC) For VW Bora 1.8T (AGU) For Seat Ibiza 1.8T (AYP AQX) Dimension
Connecting Rod Length Center to Center 144.00mm/5.669in Approximate Connecting Rod Weight 623g Big End Bore Diameter 50.60mm/1.992in Pin End Bore Diameter 20.00mm/0.787in Big End Width 24.90mm/0.980in Small End Width 24.90mm/0.980in Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
Packaging
Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
