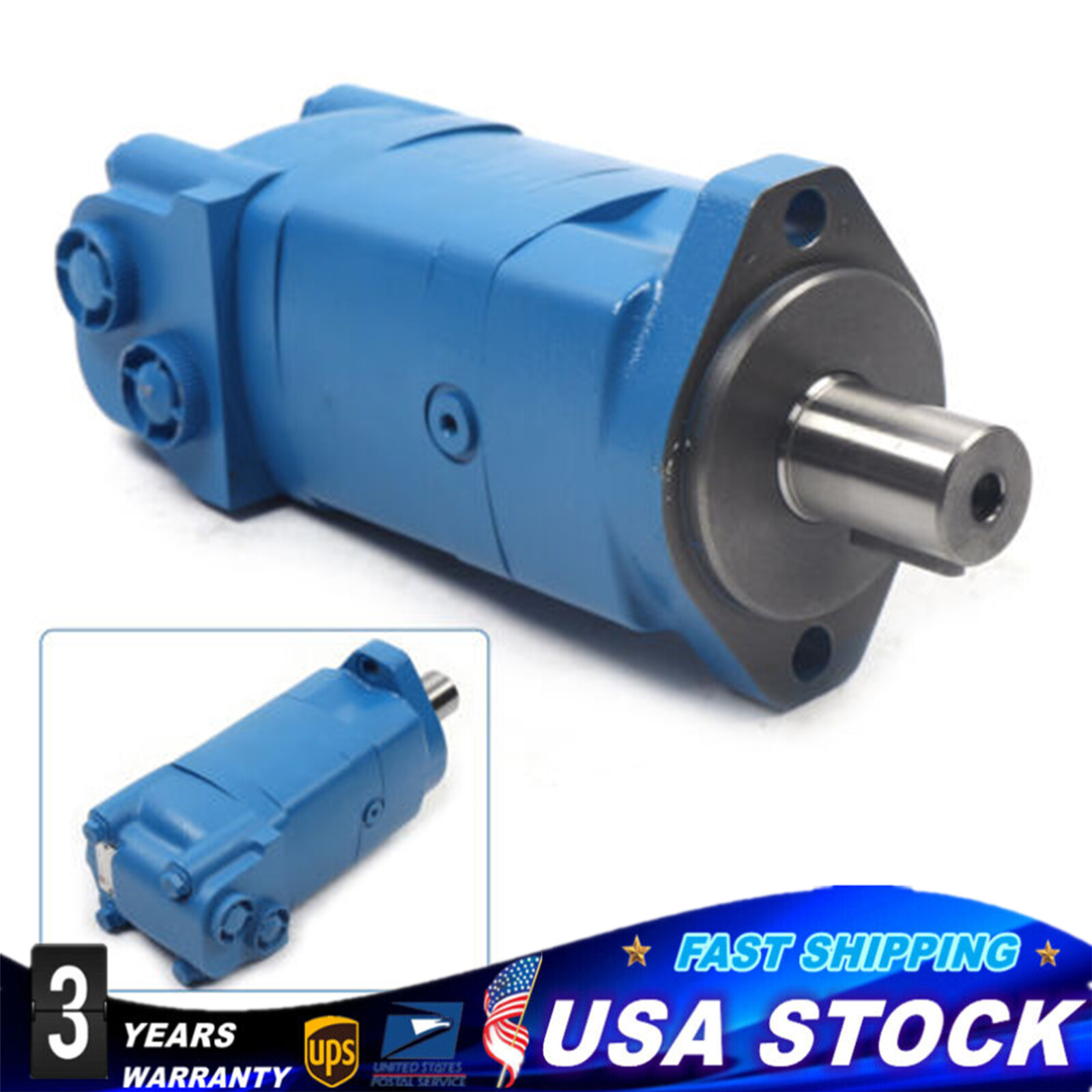

For Char-lynn 104-1028-006 Eaton 104-1028 Motor Hydraulic Motor Staggered Ports
Specifications
Applicable Models: For Eaton Char-Lynn 2000 Series
OEM: Char-Lynn 104-1028-006, Eaton 104-1028
Condition: New
Color: Blue+ Silver
Material: Carbon Alloy Steel
Type: Hydraulic Motor
Shaft Type: Straight
Mounting: Standard, 2 Bolt
Shaft Length: 1-1/4"
Inlet Diameter: 7/8-14 O-Ring Staggered
Outlet Diameter: 7/8-14 O-Ring Staggered
Flow Rate: Maximum 75L/19.8Gal/ Min
Power: Maximum 11.2KW
Displacement: 305CC
Torque: Maximum 700N·m
Specified Pressure: Maximum 16mpa
Working Oil Temperature: 20-60℃/68-140℉
Maximum Working Temperature: 80℃/176℉ (Not Exceeding 1 Hour )
Way of Use: Direct Replacement
Product Size: 27.5*14cm/10.83*5.51in
Package Size: 32*17*17cm/12.6*6.69*6.69in
Gross Weight: 13.5kg/29.76lbs
Net Weight: 13kg/28.66lbs
Key Features
Build to Last: The hydraulic motor adopts a low-carbon alloy steel output shaft, after carbonitriding and cyanide treatments, it is more wear-resistant, and corrosion-resistantand has a longer service life. It has a built-in seal ring to bear pressure and a three-layer seal to prevent oil leakage. As well, the S-type three bearings can ensure strong radial force and high-pressure resistance.
High Precision: It adopts a precision machining stator and rotor, the flatness error is not more than 2μm. With a metallurgy valve disc, it is more wear-resistantand has higher precision.
Outstanding Performance: It can provide up to 19.8 GPM flow and a maximum power of 11.2 kW, which makes it widely used in applications where space is limited but strong power output is required.
Highlights
High-quality and Reliable
High Pressure Resistance
Superior Performance
Good Sealing Effect
Precision Machining
Efficient Operation
Simple Installation
Long Service Life
Notes
- We strongly recommend professional installation.
- Please double-check the compatibility before purchasing to ensure proper fit.
- Please note that its normal working oil temperature is 68-140℉, and the maximum system working temperature is 176℉(should not exceed one hour).
- It has a filter with a filtration accuracy of 10-30 μm, and it is advisable to install a magnetic block at the bottom of the tank to prevent metal shavings from entering. The solid contamination level of the working fluid should not be higher than 19/16.
- When the oil temperature is 104℉, its kinematic viscosity is 42-74mm²/S. You can choose the hydraulic oil according to the working and ambient temperature.
- Please note that the motors can be used in series or parallel, if the back pressure exceeds 10MPA when used in series or parallel (the speed is lower than 200RPM), the pressure must be relieved by the external drain port, and it is better to connect the external drain port with the tank directly. 5.
- Please note that the best working condition for the motor should be 1/3-2/3 of the rated working condition.
- Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering.If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.
Fits (As a Reference)
For Eaton Char-Lynn 2000 Series
OEM: For Char-Lynn 104-1028-006, Eaton 104-1028
Package Included
1x Hydraulic Motor
