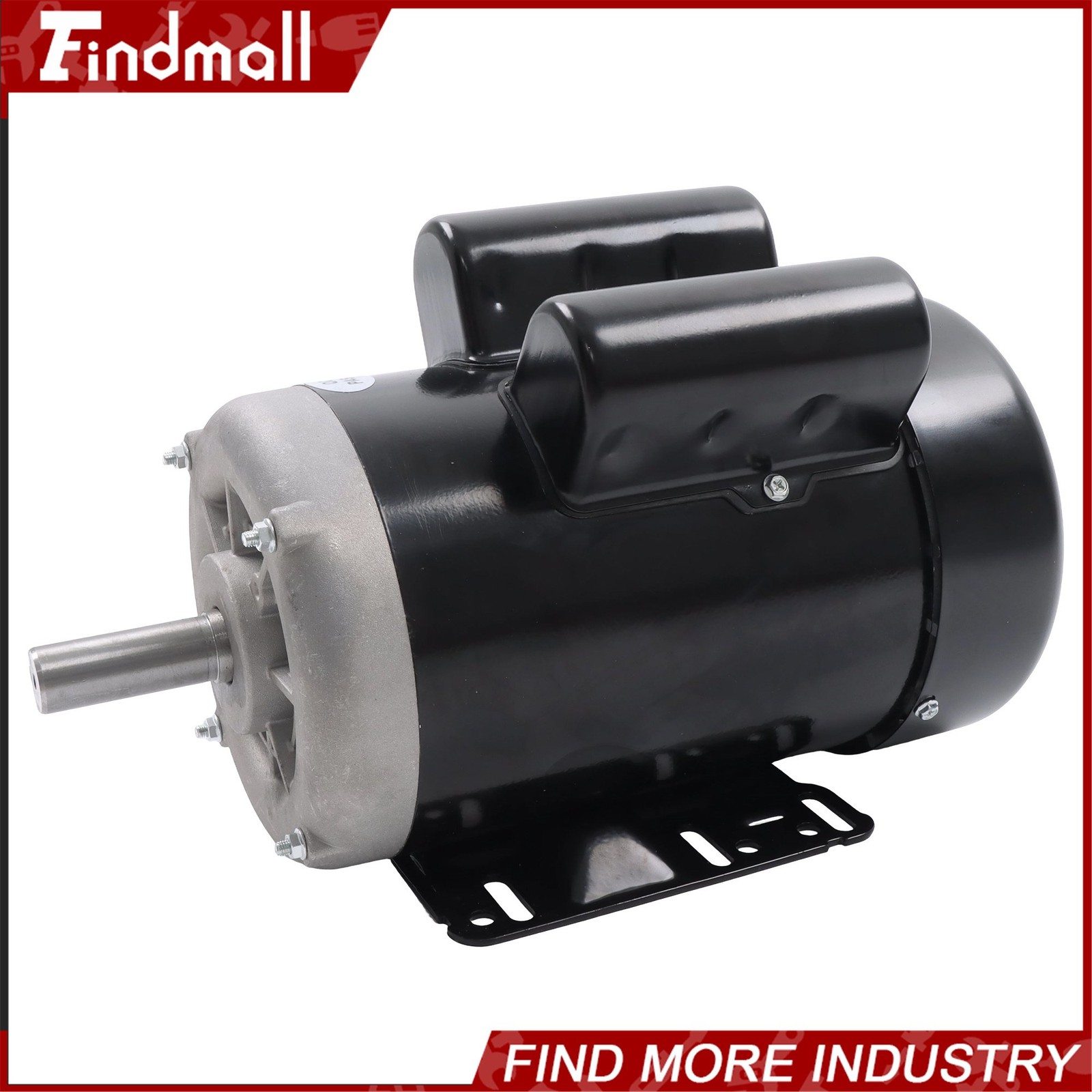

Fitment:3HP Farm Duty Electric Motor 3450 RPM 145T TEFC Single Phase 230V sure to replace the motor with a full load current value of less than 10% of what you purchasedTotally Enclosed Fan Cooling (TEFC)Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight. The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling processRPMMatching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be closeFrame size Findmall 3HP Farm Duty Electric Motor 3450RPM 145T TEFC 1 Phase 230V 60Hz
Fitment:
3HP Farm Duty Electric Motor 3450 RPM 145T TEFC Single Phase 230V sure to replace the motor with a full load current value of less than 10% of what you purchased
Totally Enclosed Fan Cooling (TEFC)
Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight. The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling process
RPM
Matching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be close
Frame size
The size of the frame corresponds to the size of the motor. Improper size of motor will lead to motor failure
Phase and voltage
A 230V motor single-phase power supply refers to a 1 phase 230V motor.It cannot withstand a voltage lower than 208V. They will run too hot and the motor will fail
Frequency Rating：60 Hz
Nominal Rated Input Voltage：230V
Rated Load (HP)：3
Special Motor Construction：Spindle Motor
Current Type：AC
Shaft Diameter：7/8 in
Enclosure Type： TEFC (Totally Enclosed Fan Cooled)
Phase：Single Phase
Insulation Class：F (Max 311°F)
Mounting Type：Base-Mounted
Pole :２
Amps：12.4A
Motor Type：Induction/Asynchronous
Base RPM：3450RPM
IP Rating：IP55
Shaft Length：2.25in
Protector：Non
Housing Material：Rolled steel shell
Model：Farm Electric Motor
IEC Frame Size：145T
Synchronous Speed:3600 RPM
Package Includes:
3HP Electric Motor 145T 3450RPM Farm Duty Single Phase Motor 7/8"Shaft TEFC
Item SpecificsCountry of Origin United StatesBrand findmallMPN 1263106Type Electric MotorsRated Load (HP) 3Current Type ACNominal Rated Input Voltage 230 VPhase Single PhaseSpecial Motor Construction Spindle MotorPole 2Shaft Diameter 7/8 inSynchronous Speed 3600 RPMIEC Frame Size 145TFrequency Rating 60 HzMotor Type Farm Duty MotorEnclosure Type TEFC (Totally Enclosed Fan Cooled)Reversible/Non-Reversible ReversibleMounting Type Base-MountedShaft Length 2.25 inIP Rating IP55Insulation Class F (Max 311°F)Rated Speed 3450 RPMWarranty 1 Year
