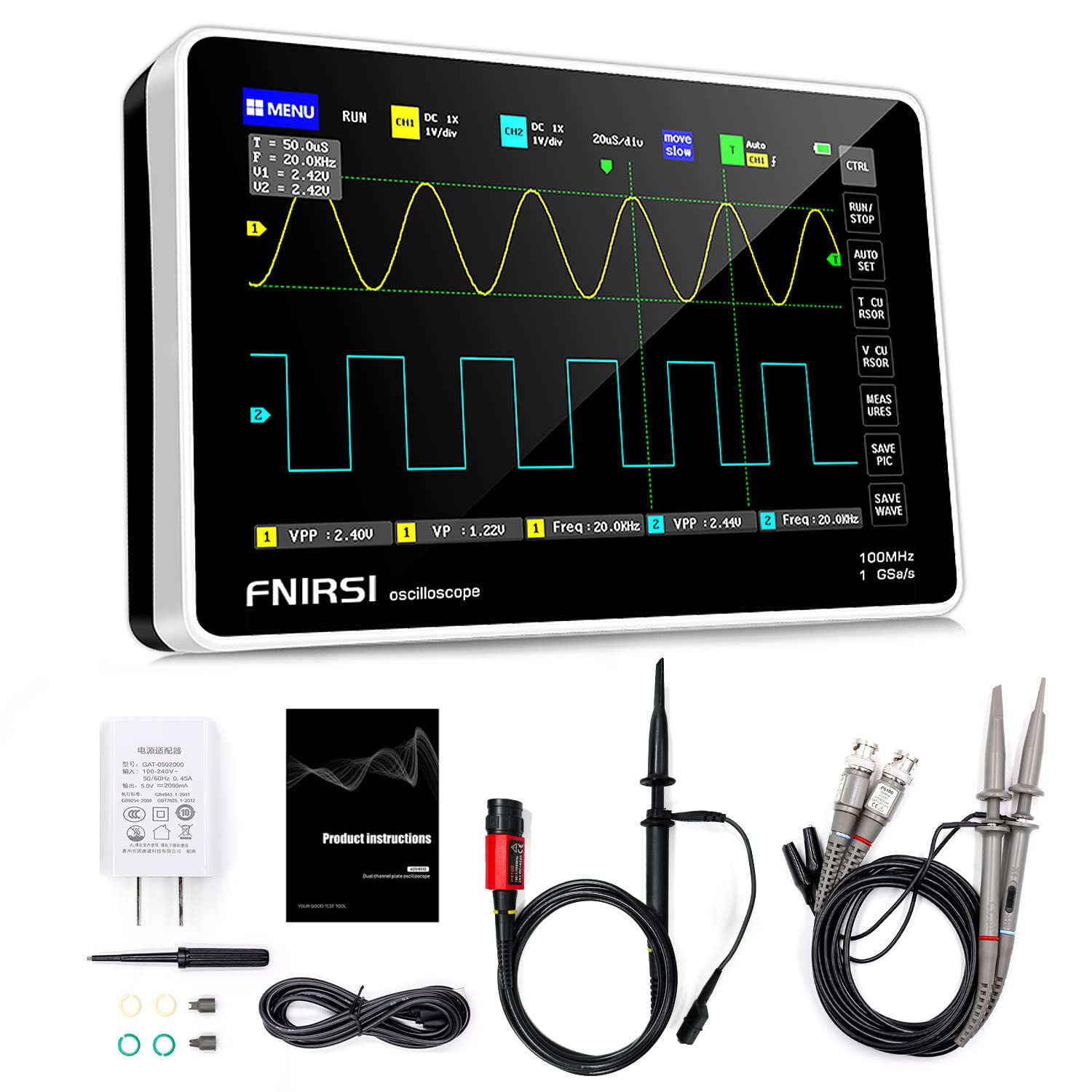

FNIRSI-1013D Plus 7" Digital Tabletoscilloscope 2CH 100Mhz 1GSa/s Sampling Rate Intelligent anti-burn osciloscopioWith Storage And Touching Screen+ P4100 Probe 100X High Voltage
Langauge: English
FNIRSI1013Dis a portable dual-channel oscilloscope with bandwidth up to 100 MHz. Theoscilloscope is equipped with a 7-inch color display and a built-in lithiumbattery which provides up to 4 hours of continuous operation. Verticalresolution is 8 bit, and the real-time sampling rate is 1 GS/s.
The internalmemory of the device is 1 GB, and it is enough to store 1000 signals. FNIRSI1013D also has a USB interface for connecting to a computer. The oscilloscopeis designed for diagnostics and tuning of radio and electronic equipment.
Features:
1. Intelligent anti-burn , 1X can withstand up to 400Vwithstand voltage.
2. 100MHz analog bandwidth @ 1GSa/s sampling rate(1X=5MHz 10X=100MHz).
3. Fully fit 7 inch 800 * 480 resolution color TFT LCDdisplay with bright colors and high contrast.
4. Capacitive touching screen, the same as the touchingmode of modern mobile tablet, is not a resistive touching screen with ancientnail operation.
5. High measurement voltage range, 1X can measure 0~40V,10X can measure 0~400V 100X can measure 0~4000V.
6. Up to 12 parameters measurement: VPP, VP ,Vmax, Vmin,Vavg, Vrms, Frequent, Duty+ ,Duty- ,Time+, Time- ,Period.
7. Cursor measurement function, it is convenient tomanually measure the period and frequency and voltage.
8. Complete triggering function (single, normal,automatic).
9. At any time, the waveform display (pause function) isfrozen.
10. Equipped with high efficiency One-button AUTO.
11. One-button waveform storage and screenshot.
12. Built-in 1GB storage space, can store up to 1000screenshots + 1000 sets of waveform data.
13. Powerful waveform picture manager supports thumbnail browsing,viewing, detailed viewing, page turning, deletion and waveform zooming in,zooming out, moving, etc.
14. Equipped with a USB interface, which can be connectedto a computer to share its screenshots with the computer, which is convenientfor secondary analysis.
15. Lissajousfigures graphic display function can be used to determine the amplitude,frequency, and phase contrast of two groups of signals.
16. FFT display function, can analyze the spectralcharacteristics of the signal.
17. Built in 6000mAh rechargeable lithium battery fullycharged for 4 hours of continuous use at the highest screen brightness.
18. Memory compression technology, waveform refresh screendoes not flicker.
19. Screen brightness adjustment.
20. Background grid brightness adjustment.
21. Ultra thin, easy to carry.
FEATURAS
High Definition Full Screen
7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.
Professional Designed
2 channels , 100MHz analog bandwidth @ 1 GSa/s Real-time sampling , 240kbit Sample Memory Depth
Thinner & Ultra-light
7.08*4.72*1.57 in thinner size and 600g super light weight design,easy to caryy.
Powerful Waveform Manager & USB Export
One-key screenshot and saving design,built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data,and support UBS export.
Lissajous Figures Display & FFT Analysis Function
Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;
FFT analysis function can analyze the harmonic components of the signal.
Super-long Stand By Time
Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.
Technical Specifications：
Channels
2
Bandwidth
100 MHz
Real-time Sample Rate
1 GS/s
Storage Depth
240 KB
Input
Input Coupling
DC, AC
Input impedance
1 Ω
Probe Attenuator
1 X, 10 X
Highest Test Voltage
40 V (1X probe), 400 V (10X probe)
Horizontal System
Time Base Scale
50 s / div - 10 ns / div
Vertical System
Time base scale
50 mV / div - 500 V / div
Rise time
< 3 ns
Vertical Resolution
8 bit
Voltage Accuracy
± 2%
Frequency Accuracy
± 0,01%
Trigger System
Trigger Mode
Auto, Normal, Single
Trigger Type
Ascending/descending edge
Measuring System
Automatic Measurements
VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period
Cursor Measurements
XY, Y trigger
General Specifications
Display
color TFT display, 7 inches, 800 × 480 pixels
Power
built-in 6000 mAh lithium battery, up to 4 hours of continuous work, 5 hours of charging
Interface
USB (5 V / 2 A)
Built-in Memory
1 GB
Waveform Storage
1000 picture + 1000 waveform
Dimensions
184 × 124 × 50 mm
Net Weight
650 g
Package include:
1 x FNIRSI-1013D Digital Oscilloscope
2 x 100MHz Oscilloscope Probe（1X and 10X）
1 x 5V2A Charger（Include USB data line）
1 x User manual (English)
1 * P4100 Oscilloscope Probe 100X High Voltage
