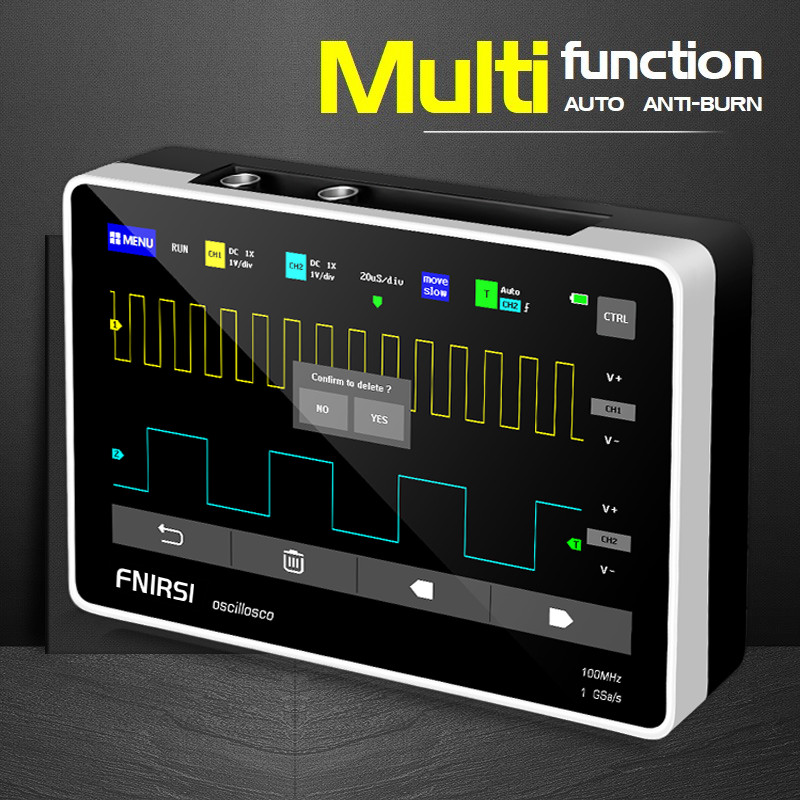

FNIRSI 1013D Mini 7\" Touch Panel 2CH Digital Oscilloscope 100MHz Bandwidth 1GS For Sale

FNIRSI-1013D 7" Digital Tablet oscilloscope2CH 100Mhz 1GSa/s Sampling Rate Intelligent anti-burn Oscilloscope With StorageAnd Touching Screen

Language: English

FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.

The internal memory of the device is 1 GB, and it is enough to store 1000 signals. FNIRSI 1013D also has a USB interface for connecting to a computer. The oscilloscope is designed for diagnostics and tuning of radio and electronic equipment.

FNIRSI 1013D Handheld Tablet Oscilloscope Specification Number of Channel 2 Bandwidth 100MHz Sample Rate 1GSa / s Storage Depth 240Kb Timebase 50S / div~10nS / div Vertical Sensitivity 50 mV / div~500 V / div Input Impedance 1M ohm Trigger Modes Auto / Normal / Single Trigger Types Rising Edge / Falling edge Coupling DC / AC Highest Test Voltage 1X : 40V / 10X : 400V Cursor Position XY / Trigger Y Waveform Manager Support (1000 pic +1000 waveform) Frequency Precision ±0.01% USB Export Support Power Supply 6000 mAh lithium battery FEATURAS

High Definition Full Screen

7 inch color TFT- LCD full Capacitive Touch Screen display with 800 * 480 resolution.

Professional Designed

2 channels , 100MHz analog bandwidth @ 1 GSa/s Real-time sampling , 240kbit Sample Memory Depth

Thinner & Ultra-light

7.08*4.72*1.57 in thinner size and 600g super light weight design,easy to caryy.

Powerful Waveform Manager & USB Export

One-key screenshot and saving design,built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data,and support UBS export.

Lissajous Figures Display & FFT Analysis Function

Lissajous figures display function can be used to determine the amplitude, frequency, and phase contrast of 2 groups of signals;

FFT analysis function can analyze the harmonic components of the signal.

Super-long Stand By Time

Built-in 6000mah high-quality lithium battery, which can last for 4 hours on a full charge.

Technical Specifications：

Channels

2

Bandwidth

100 MHz

Real-time Sample Rate

1 GS/s

Storage Depth

240 KB

Input

Input Coupling

DC, AC

Input impedance

1 Ω

Probe Attenuator

1 X, 10 X

Highest Test Voltage

40 V (1X probe), 400 V (10X probe)

Horizontal System

Time Base Scale

50 s / div - 10 ns / div

Vertical System

Time base scale

50 mV / div - 500 V / div

Rise time

< 3 ns

Vertical Resolution

8 bit

Voltage Accuracy

± 2%

Frequency Accuracy

± 0,01%

Trigger System

Trigger Mode

Auto, Normal, Single

Trigger Type

Ascending/descending edge

Measuring System

Automatic Measurements

VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period

Cursor Measurements

XY, Y trigger

General Specifications

Display

color TFT display, 7 inches, 800 × 480 pixels

Power

built-in 6000 mAh lithium battery, up to 4 hours of continuous work, 5 hours of charging

Interface

USB (5 V / 2 A)

Built-in Memory

1 GB

Waveform Storage

1000 picture + 1000 waveform

Dimensions

184 × 124 × 50 mm

Net Weight

650 g

Package include:

1 x FNIRSI-1013D Digital Oscilloscope
2 x 100MHz Oscilloscope Probe（1X and 10X）
1 x 5V2A Charger（Include USB data line）
1 x User manual (English)
