TIG Welder with Pulse, 200A AC/DC Aluminum Welder, 7 In 1 TIG Welder Machine 220V with Large LED Display, AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, DC MMA, ARGON ARC, Spot Welding Machine【7 IN 1 Aluminum TIG WELDER】FEIFANKE TIG200P 220V AC/DC welding machine supports AC TIG, DC TIG, AC Pulse TIG, DC Pulse TIG, DC MMA, ARGON ARC, Spot. AC/DC TIG welder machine with pulse is suitable for all kinds of welding requirements【Excellent Performance in Welding Aluminum】FEIFANKE TIG welder can be widely used for precision welding of carbon steel, stainless steel, aluminum alloy, magnesium alloy and other non-ferrous metals. This aluminum welder machine performs particularly well in welding aluminum up to 4/25"【Large LED Display & MCU Control】FEIFANKE TIG welding machine has a good and stable

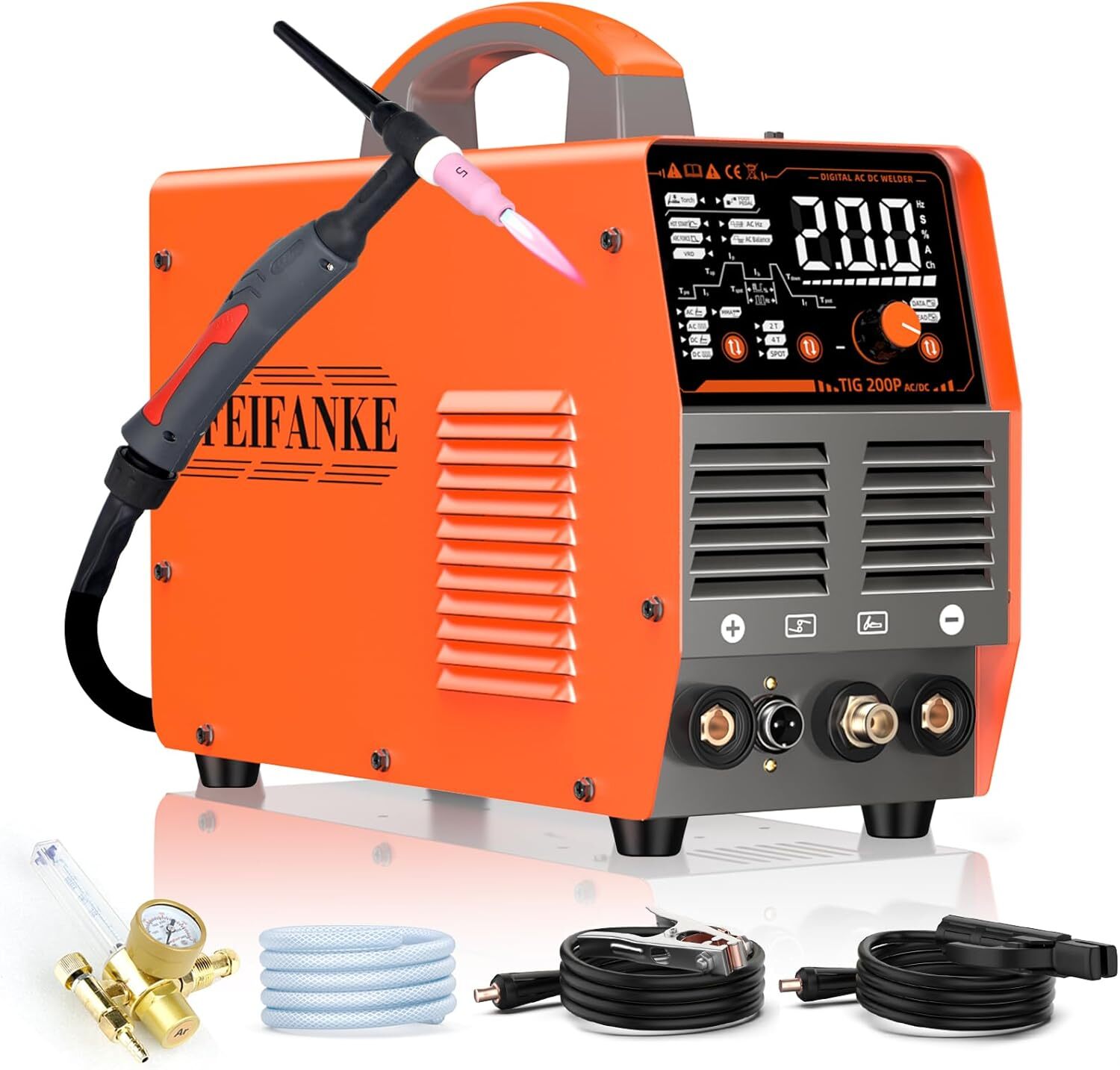

TIG Welder with Pulse, 200A AC/DC Aluminum Welder, 7 In 1 TIG Welder Machine 220V with Large LED Display, AC TIG, AC Pulse TIG, DC TIG, DC Pulse TIG, DC MMA, ARGON ARC, Spot Welding Machine
- 【7 IN 1 Aluminum TIG WELDER】FEIFANKE TIG200P 220V AC/DC welding machine supports AC TIG, DC TIG, AC Pulse TIG, DC Pulse TIG, DC MMA, ARGON ARC, Spot. AC/DC TIG welder machine with pulse is suitable for all kinds of welding requirements
- 【Excellent Performance in Welding Aluminum】FEIFANKE TIG welder can be widely used for precision welding of carbon steel, stainless steel, aluminum alloy, magnesium alloy and other non-ferrous metals. This aluminum welder machine performs particularly well in welding aluminum up to 4/25"
- 【Large LED Display & MCU Control】FEIFANKE TIG welding machine has a good and stable control system that can adjust pre-flow, initial current, up-slope, peak current, down-slope, crater current, post-flow, AC frequency, AC balance, pulse frequency. The aluminum welding machine adopts 2T/4T/Spot/ TIG torch and foot pedal control (not included) to improve the welding performance
- 【High-Quality MMA Welding with ARC Initiation】Unique Dash-ARC technology improves arc initiation speed. DC MMA stick welder provides stable welding current with low spatter, good weld shape, and supports acidic/alkaline electrodes.
- 【Storing 10 Sets of Welding Data】You can preset and store 10 groups of welding data according to your own needs or welding habits, which is convenient to apply immediately after powering on the machine. This greatly improves welding efficiency.
- 【FEIFANKE 24/7 Warm Service】FEIFANKE TIG welders are fully equipped and come with a 30-day money back and a 2-year warranty. Whether the FEIFANKE TIG200P welder is faulty or you are not satisfied, we will replace it with a new one.
Technical Parameters:
Power voltage: AC220V±15%
Input frequency: 50Hz
Rated input current (A): 43.6@MMA 28@TIGCapacity of power supply: (KVA): 9.6@MMA 6.2@TIG
Output current range (TIG): 10-200AOutput current range (MMA): 10-200AArc force range: 0-100A
Hot start current range: 0-100A No-load voltage: 60V Rated working voltage: 220V
AC output frequency20-150Hz AC balance (% ): -40-20
Pulse frequency: 0.1-50Hz Pulse duty factor (%): 1-99Pre-flow time: 0.1-15S
Start current: 10-200A
Up slope: 0-10SPeak current: 10-200A
Basic current: 10-200A
Down slope: 0-15SFinish current: 10-200A Post-flow time: 0.5-10SRemote control: Yes Arc start mode: HF Efficiency (%) : 85 Duty cycle : 60%Power factor: 0.73
Type of cooling: Air cool
Working temperature range: -10~+40°C Storage temperature range: -25~+55°C
Protection class:IP21S
Insulation class: FPackage including all items in our pictures.Product DescriptionFEIFANKE TIG200P 220V - Aluminum TIG Welding Machine With Pulse
