Ethernet Motion Controller High Reliability EC300 Digital Dream MPG CNC Control For Sale

The EC300 is a high-performace external motion controller for Mach 3 software, with Ethernet interfacesupporting standard MPG and Digital Dream MPG.The device can communicate with a connection to a control computer\'s network.The network connection can be built with direct connection or via router/Swith devices.

Feature:

Spec:

Options: 3/4/5/6 Axis

Power supply: 24VDC >1A

Max output frequency: 300kHz/Axis

Dimensions: 17.1*10.6*32mm / 6.7*4.2*1.2in

Weight: Approx. 778g/27.4oz

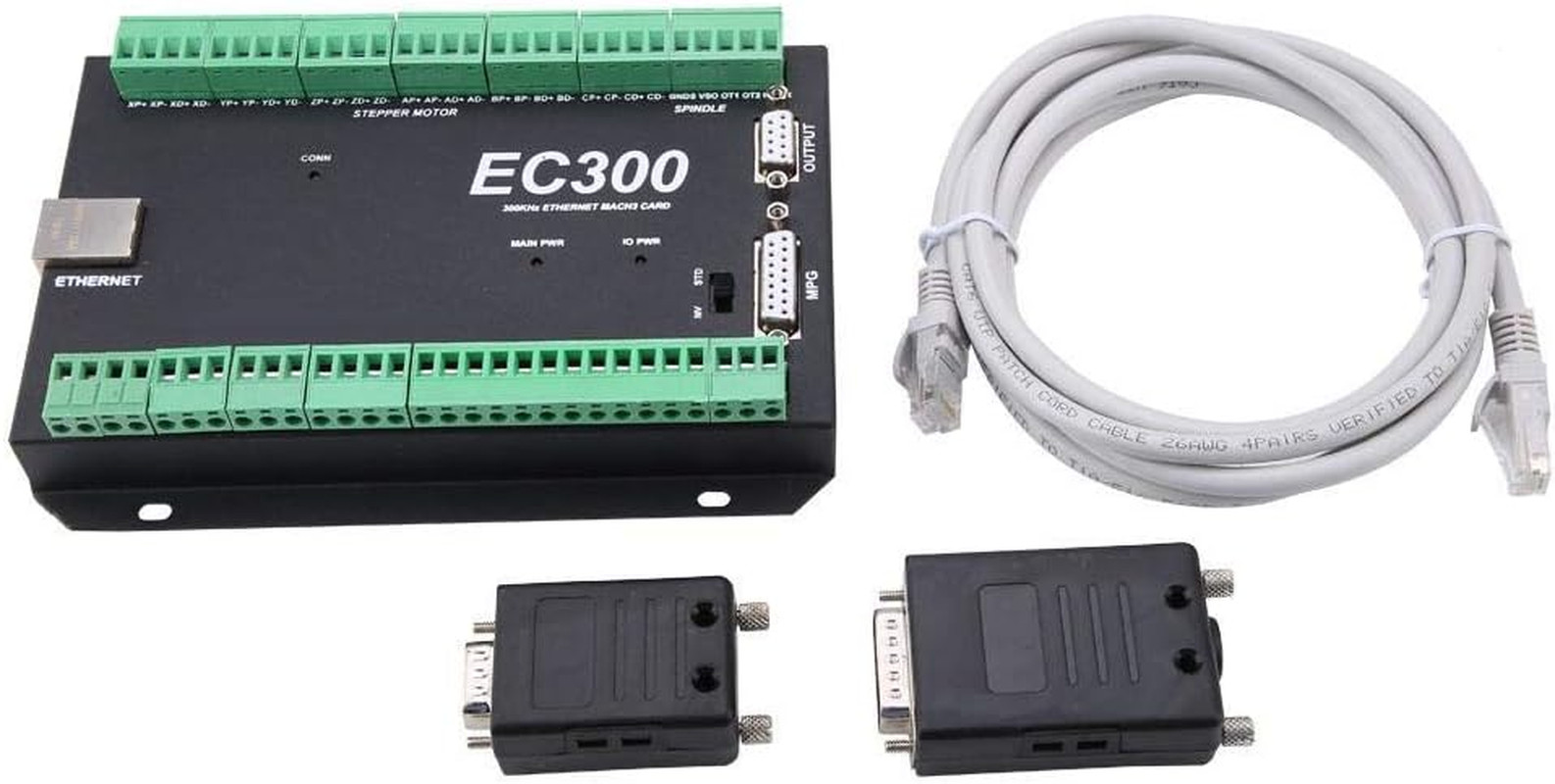

Packagelist:

1 * Motion Control Board

1 * Connection Cable

2 * Terminals

• Ethernet Connection with Software.
• Motion control 3-6 Axis(X,Y,Z,A,B,C) for option, frequency output 300Khz/Axis.
• Main power supply 24VDC, Current should higher than 1A.
• 12 opto-isolated digital input ports,10 opto-isolated digital output ports.
• IO Power is 24VDC power supply input,current should higher than 1A(The controller already supply the power for IO port,no need the external power supply for IO port anymore).
