Emerson KTM 1\" EB162 Pneumatic Ball Valve Assembly Keystone F89 TopWorx ASCO NOS For Sale

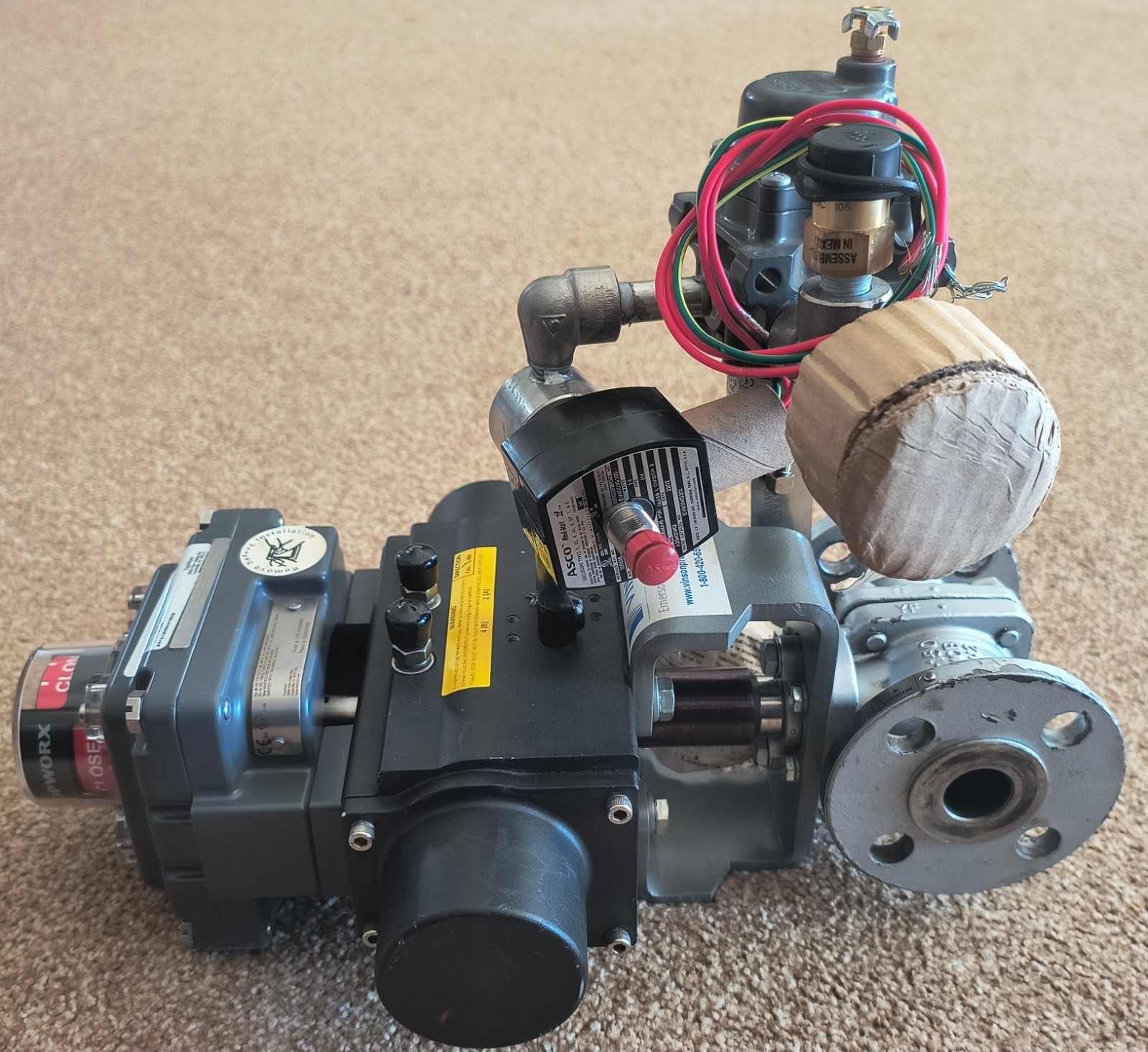

This is a complete Emerson pneumatic ball valve assembly in New Old Stock (NOS) condition, manufactured and assembled as a factory-grade hazardous location valve assembly for industrial process automation and remains warehouse stored since manufacture. It includes a KTM EB162 actuated valve as a 1 inch full port ball valve with 150# RF flanged connections designed to ASME B16.34, Keystone F89U actuator as a spring return actuator, TopWorx TXP switchbox (position indicator/switches), ASCO EV8314 solenoid as an explosion-proof solenoid with EV8314G301 low-power 3-way configuration, and Fisher 67CFR regulator and gauge. Intended for use in process, plant, or OEM control systems where a 1\" flanged, actuated, fail-safe valve is required.

Key behaviors: Air from regulator (set ~80-100 PSI) > ASCO solenoid (24VDC) opens valve; loss of air or electrical power causes springs to close the valve (fail-closed).

Features and common uses:

• Industrial process control, pneumatic automation, oil & gas skids, chemical plants, water/wastewater, power generation, OEM skid builds.

• Fail-safe spring-to-close pneumatic actuation; robust flange-mounted 1\" full port ball valve.

• Switchbox provides mechanical position response for PLC/SCADA dir=\"auto\">

• Assembly Overview:
  • Factory Tag ID: XV-603
  • Assembly Part Number: Partner: Vinson (Emerson Impact Partner)
  • Project Info: PO #2458000 / PO #110538 (Printed 3/9/2022)
  • Total Weight: 27 lbs 2 oz
  • Overall Dimensions: 16.5\" (L) x 10.25\" (W) x 12.875\" (H)
  • Condition: New Old Stock (NOS) with intact factory stickers and gauge covers
• Valve Details (KTM Ball Valve):
  • Manufacturer: KTM (Emerson) – Made in Taiwan
  • Model: EB162-32ET-15L (EB Series / EB 11 Marking)
  • Size: 1\" (Full Port / 1\" Bore)
  • Pressure Class: 150# RF (Raised Face)
  • Body Material: WCB (Cast Carbon Steel)
  • Ball/Stem Material: CF8M (316 Stainless Steel)
  • Design Standard: ASME B16.34
  • Date of Manufacture: 11-2019
  • Serial Number: 20336E0029
  • Body Heat/Batch Markings: YF, YU 16 23, YUB658, PH2
  • Measurements: Flange-to-Flange: 5\" (with RF) / 4 7/8\" (without RF); Bolt Hole Pattern: 4 holes, 5/8\" diameter, 3 1/8\" bolt circle; Flange Thickness: 15/32\" (with RF)
• Actuator Details (Keystone Pneumatic Actuator):
  • Manufacturer: Keystone (Emerson) – Assembled in China
  • Model: F89U-006 SR12
  • Type: Pneumatic Rack & Pinion, Spring Return (Fail-Safe)
  • Configuration: Fail-Closed (Spring-to-Close)
  • Max Working Pressure: 8.3 bar (120 psi)
  • Spring Pack: SR12 (Full 12-spring set for maximum torque)
  • Temperature Range: -20°C to +80°C (-4°F to +176°F)
  • Item Number: 89U0060312N14N2U00U34P0C
  • Date of Manufacture: 09-2017
  • Serial Number: 0127201
  • Hardware: Imperial Fasteners
• Switchbox Details (TopWorx Positioner):
  • Manufacturer: TopWorx (Emerson) – Louisville, KY
  • Model: TXP-M2CGNEM
  • Switches: (2) Mechanical SPDT (Rated 10A/250VAC; 3A/24VDC)
  • Hazardous Ratings: Class I Div 1 & 2 (Gr. B,C,D); Class II Div 1 & 2 (Gr. E,F,G)
  • Certifications: ATEX, IECEx, UL, CSA, CCC, NEPSI
  • Ingress Protection: IP66/67, Type 4, 4X, 6, 6P
  • Visual Indicator: Yellow \"CLOSED\" bar (oriented perpendicular to flow in fail state)
  • Wiring Entry: (2) 3/4\" NPT conduit ports (one with factory seal sticker)
  • Serial Number: 220209151951
• Solenoid Details (ASCO Solenoid Valve):
  • Manufacturer: ASCO (Emerson) – Florham Park, NJ
  • Valve Model: EV8314G301 (3-Way Valve)
  • Solenoid Head Model: EV8003G300 (Red-Hat II)
  • Voltage: 24VDC (Low Power - 1.4 Watts)
  • Body Material: 316 Stainless Steel
  • Pressure Rating: 150 PSI (Air/Inert Gas)
  • Hazardous Rating: Explosion-proof (CL I Div 1; CL II Div 1)
  • Air Ports: 1/4\" NPT
  • Date/Serial: 2202 / A29411942
• Regulator & Gauge Details (Fisher):
  • Regulator Model: Fisher 67CFR (Filter-Regulator)
  • Features: Smart Bleed, Internal Relief, 5-Micron Filter
  • Spring Range: 0–125 PSI
  • Max Supply: 250 PSI
  • Date of Manufacture: 11-OCT-21
  • Gauge Model: Fisher J514 (P/N: 11B2716X012)
  • Gauge Range: 0–160 PSI / 0–11 kg/cm²
  • Vent Protection: P206 Rubber \"Bug Shield\" umbrella cap on the exhaust port
• Hardware & Connections:
  • Mounting Bracket: Vinson Custom, 5/16\" thick Carbon Steel (Painted/Plated), Magnetic
  • Coupling: Solid metal drive (No play/looseness)
  • Flow Logic: Air enters Fisher regulator → Dialed to ~80-100 PSI → ASCO Solenoid (24VDC) → Actuator Opens Valve. Loss of power/air causes Springs to close valve

• Free Shipping

• 30-day returns accepted – I\'ll pay return shipping. Note: because this is a complex and assembled system, recommend \"buyer to inspect and verify compatibility with their system; returns accepted only if item is returned in original condition and packaged as shipped.\"
