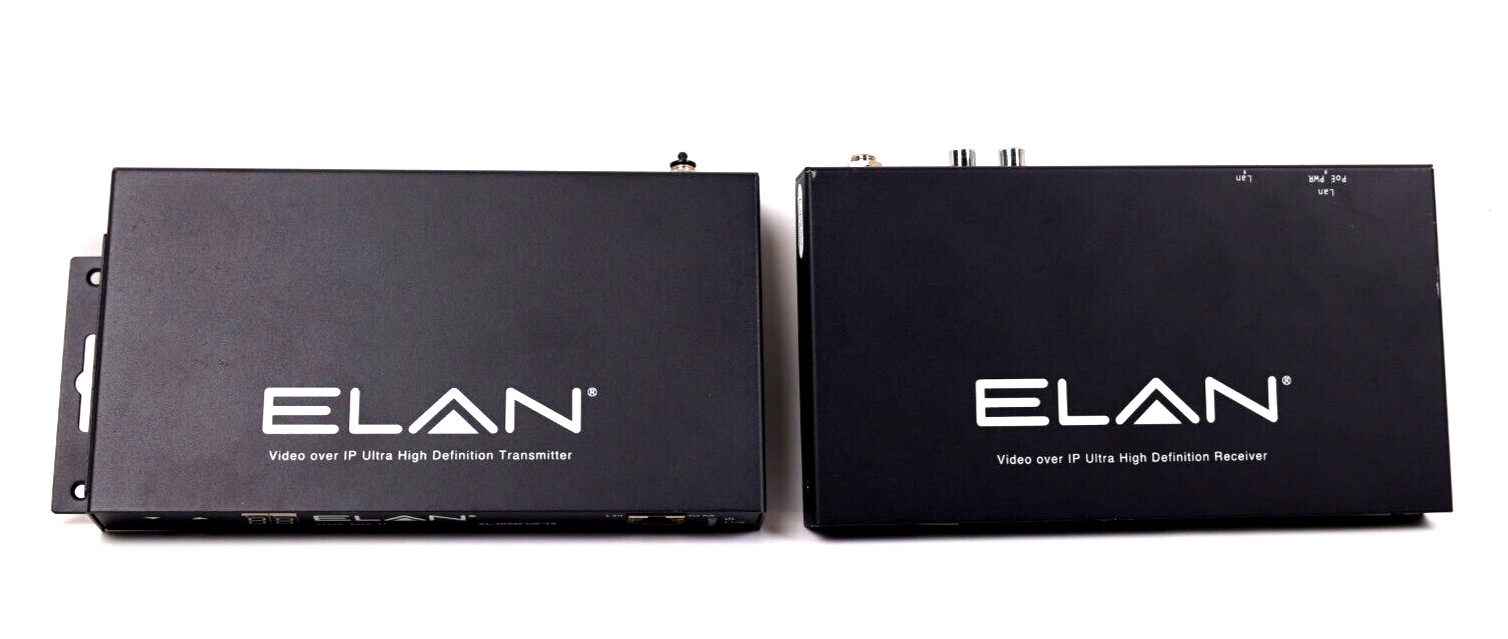

Elan Video Over IP 4K UHD Sender/ Receiver Set EL-4KPM-VIP-RX/ TX
Ships Next Business Day
Missing manual and factory packaging. MSRP: $1900
The ELAN Premium Video over IP (VIP) platform enables distribution of HDMI video over a 1Gb Network switch. The EL-4K-VIP-TX and EL-4K-VIP-RX are HDCP 2.2 compliant Transmitters and Receivers that use visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 and USB/KVM up to lengths of 100m over standard network architecture. The EL-4K-VIP-TX/RX can be powered via PoE from a Network switch or powered locally should a switch either not be used or not support PoE. With multiple configuration options available, this Video over IP solution is ideal for both commercial and residential installations.
Designed to work with the ELAN smart home control and automation platform
Advanced UHD video over 1Gb Network
Virtually unlimited system size
Connect to any supported Layer 2 / Layer 3 Managed Switch for HDMI video distribution
Supports up to 4K HDR UHD video (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz4:2:0)
NOTE: HDR support is dependant on video signal bandwidth. Please see table in product manual for reference.
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Video up-scaling and down-scaling
HDCP 2.2 Compliant
Advanced EDID management
Analog L/R audio embedding and de-embedding on EL-4K-VIP-TX Transmitter
Analog L/R audio breakout on EL-4K-VIP-RX Receiver
Bi-directional RS-232 and IR pass through
USB 2.0 connectivity (backwards compatible with USB 1.1) for KVM and other USB devices
PoE (Power over Ethernet) to power ELAN products from PoE switch
Local 24V 1A power input should network switch not support PoE, sold separately
Simple configuration via web-GUI through the EL-4K-VIP-ACM
HDMI audio embedding supports up to 192 Khz, EL-4K-VIP-RX analog audio output supports up to 96Khz only
RS-232, IR and Telnet/IP integration for control of the VoIP system using ELAN EL-4K-VIP-ACM
Features 4 operational modes:
Matrix distribution (Requires 1Gb network switch)
Video wall (Requires 1Gb network switch)
One-to-one HDMI extender (No network switch required)
One-to-many HDMI splitter (No network switch required)
