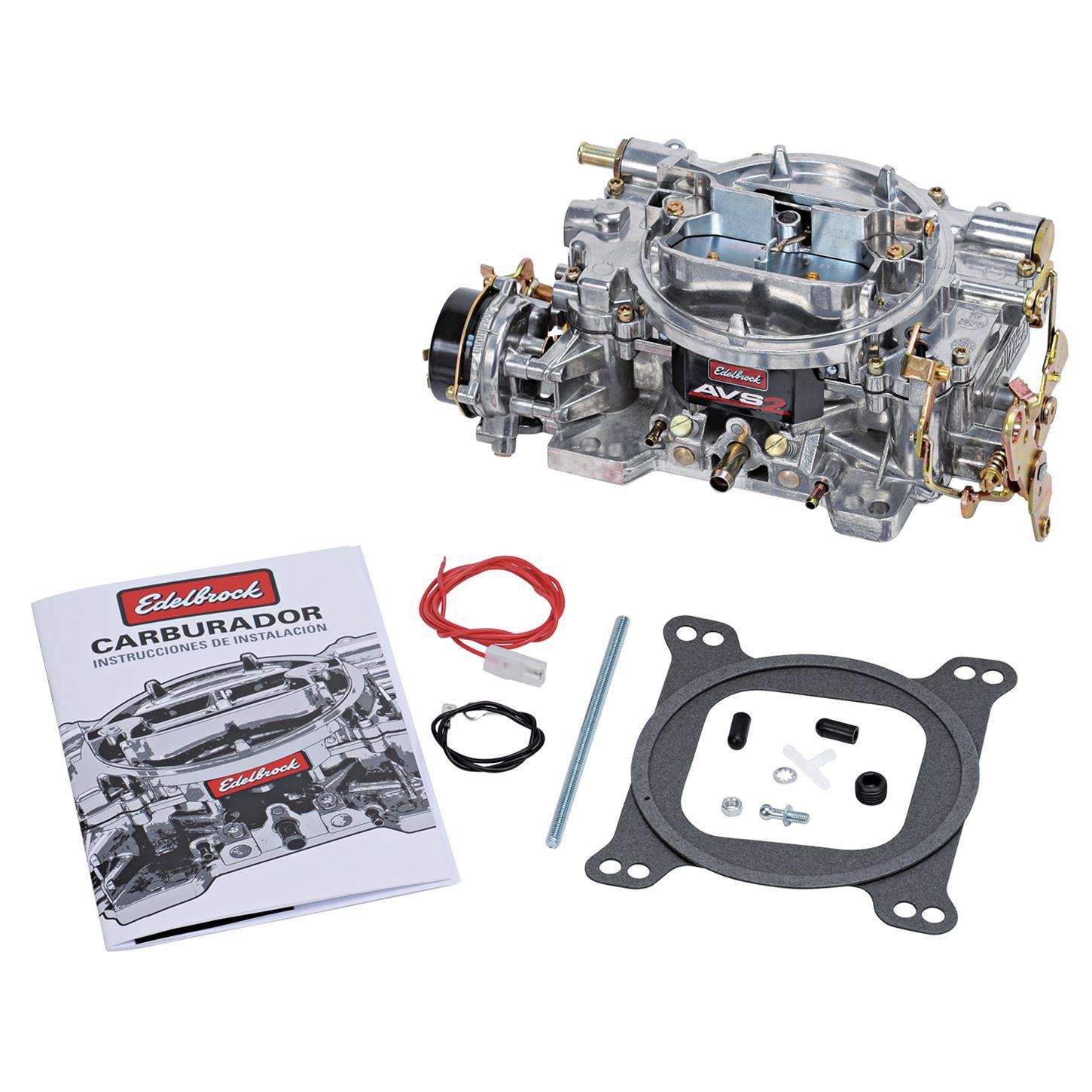

Comes ready to run right out of the box, The 500 CFM are designed for smaller cubic-inch engines with a single carburetor, Carburetor features annular flow primary boosters to improve off idle and cruising performance, It helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle, Includes an electric choke and has a square flange that allows it to be fitted to many different intake manifolds Edelbrock 1901 AVS2 Series 4 Barrel Carb, 500 cfm, Electric Choke Sku # 3251901 Mfr. Part # 1901 Condition New Brand Edelbrock Sold Each Details
Edelbrock is introducing their new AVS2 carbs to their already well renowned line of carburetors. This carburetor features annular flow primary boosters to improve off idle and cruising performance. The annular flow helps eliminate any flat spots that may happen when the carburetor transitions from idle to full throttle. The 500 CFM are designed for smaller cubic-inch engines with a single carburetor. These include both times and full vacuum ports for ignition advance. This 500 CFM carburetor with electric choke has a square flange that allows it to be fitted to many different intake manifolds. This carb is ready to be bolted on and ready to run right out of the box.
- Electric choke
- 500 CFM
- Satin finish
- Square flange
- Sold each
Specs Carburetor Barrels 4-Barrel Fuel Type Gasoline Choke Type Electric CFM Range 500-599 CFM CFM 500 CFM Carburetor Flange Type 4-Barrel Square Bore Finish Satin Material Type Aluminum Color Natural Secondary Type Mechanical Overall Height 3.25" Fuel Inlet Type Dual Gasket(s) Included Yes New or Remanufactured New Throttle Linkage Type Universal Booster Annular Supercharged Application No Bolt Hole Pattern 5.160" x 5.625" Primary Jet Size 95 Secondary Jet Size 95 MFG. Part # 1901 GTIN Code 085347019014 Sold in Quantity Each Reviews Can't go wrong with edelbrock Rated by Dan on May 18, 2025
Summary: Put on AMC 304, really brought engine to life
Yes, I recommend this product.
Another great Edelbrock product Rated by Jer on December 18, 2024
Summary: As advertised. Quality product that ill go through years of use.
Yes, I recommend this product.
I would buy again if i need Rated by Robin on July 11, 2024
Summary: Installed on a 1965 mustangWith a 289 engine. Took off a edelbrock 1406 600CFM which was a little to much for a small 289.Cruises so much better
Yes, I recommend this product.
Excellent choice for lower rpm engine speeds Rated by Hubie on February 18, 2023
Summary: I've been a fan of the edlbrock carburetor for years. I replaced a 600hp fitek power adder on a virtually stock vortec 350 Chevy in a 83 square body that I restored. I realized the fitek was too big for my application, surging while idling, poor fuel mileage etc. the truck runs 1700 rpm at 60 mph, the 500 cfm carb is perfect for that. It will rarely see over 3500 rpm. Excellent choice for an application like that.
Yes, I recommend this product.
Yes I should have got this first. Rated by Bruce on August 19, 2021
Summary: I replaced fiteck unit with this.
Yes, I recommend this product.
