Description

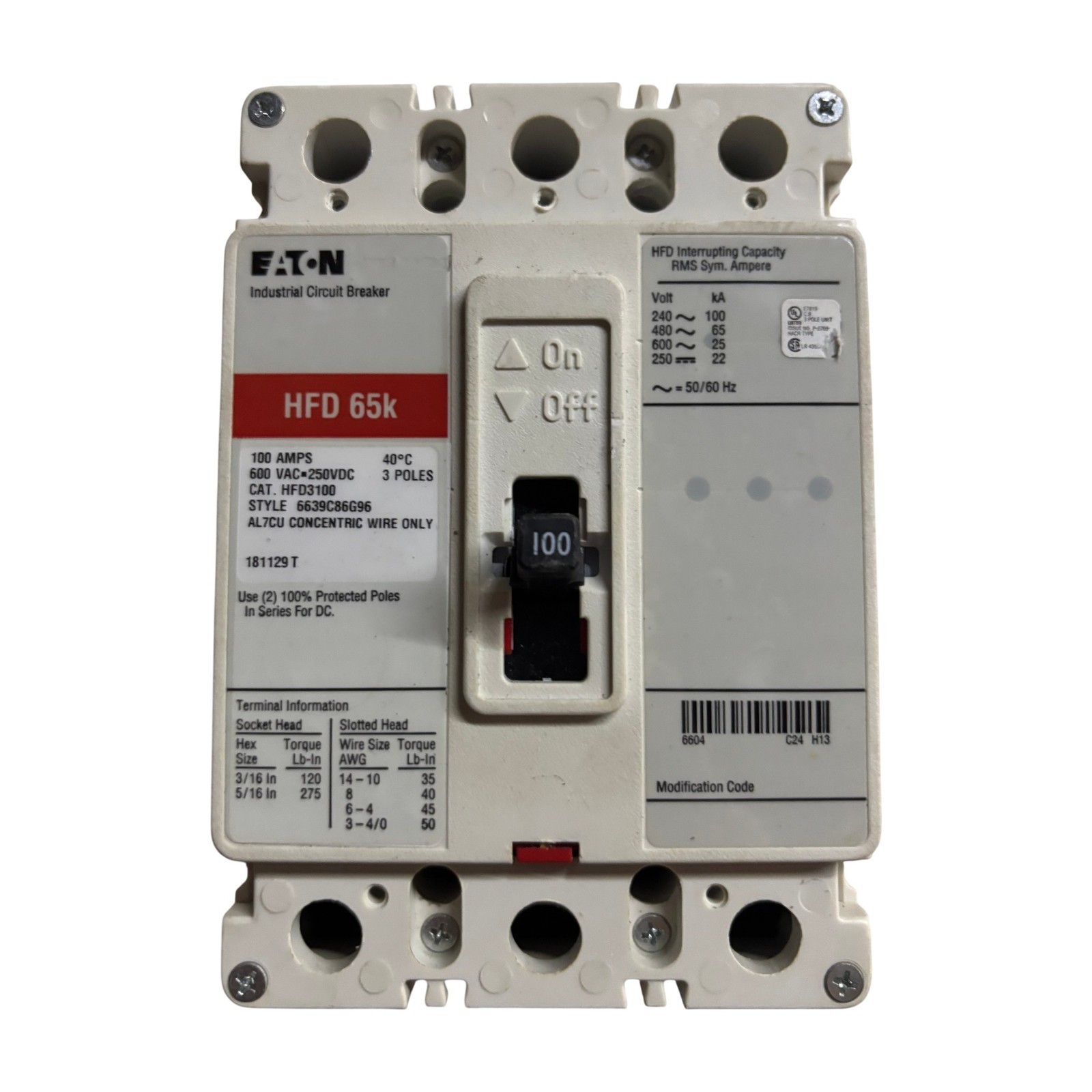

The Eaton HFD3100 is a 100-Amp, 3-Pole, 600V molded case industrial circuit breaker from the HFD 65k series. It features a high interrupting capacity of 65kA at 480V and is suitable for use in commercial and industrial power distribution applications. This unit accepts AL7CU concentric wire and can be used in DC applications with two 100% protected poles in series.
Features & (Cutler-Hammer)Model NumberHFD3100Style Number6639C86G96Product TypeMolded Case Industrial Circuit BreakerAmperage100ANumber of Poles3Voltage Rating600 VAC / 250 VDCInterrupting Capacity (Series)HFD 65kInterrupting Capacity at 240V100 kA RMS Sym.Interrupting Capacity at 480V65 kA RMS Sym.Interrupting Capacity at 600V25 kA RMS Sym.Interrupting Capacity at 250VDC22 kA RMS Sym.Frequency50/60 HzTemperature Rating40 degrees CWire TypeAL7CU Concentric Wire OnlyTerminal Torque (Socket Head 3/16 in Hex)120 Lb-InTerminal Torque (Socket Head 5/16 in Hex)275 Lb-InWire Size Range (Slotted Head)AWG 14-10, 8, 6-4, 3-4/0What's Included
- 1x Eaton HFD3100 3-Pole 100A 600V Industrial Circuit with Eaton and Cutler-Hammer panelboards and motor control centers designed to accept HFD-series molded case circuit breakers. Verify panel compatibility with Eaton documentation before installation. For DC applications, use two 100% protected poles in series per label instructions.
