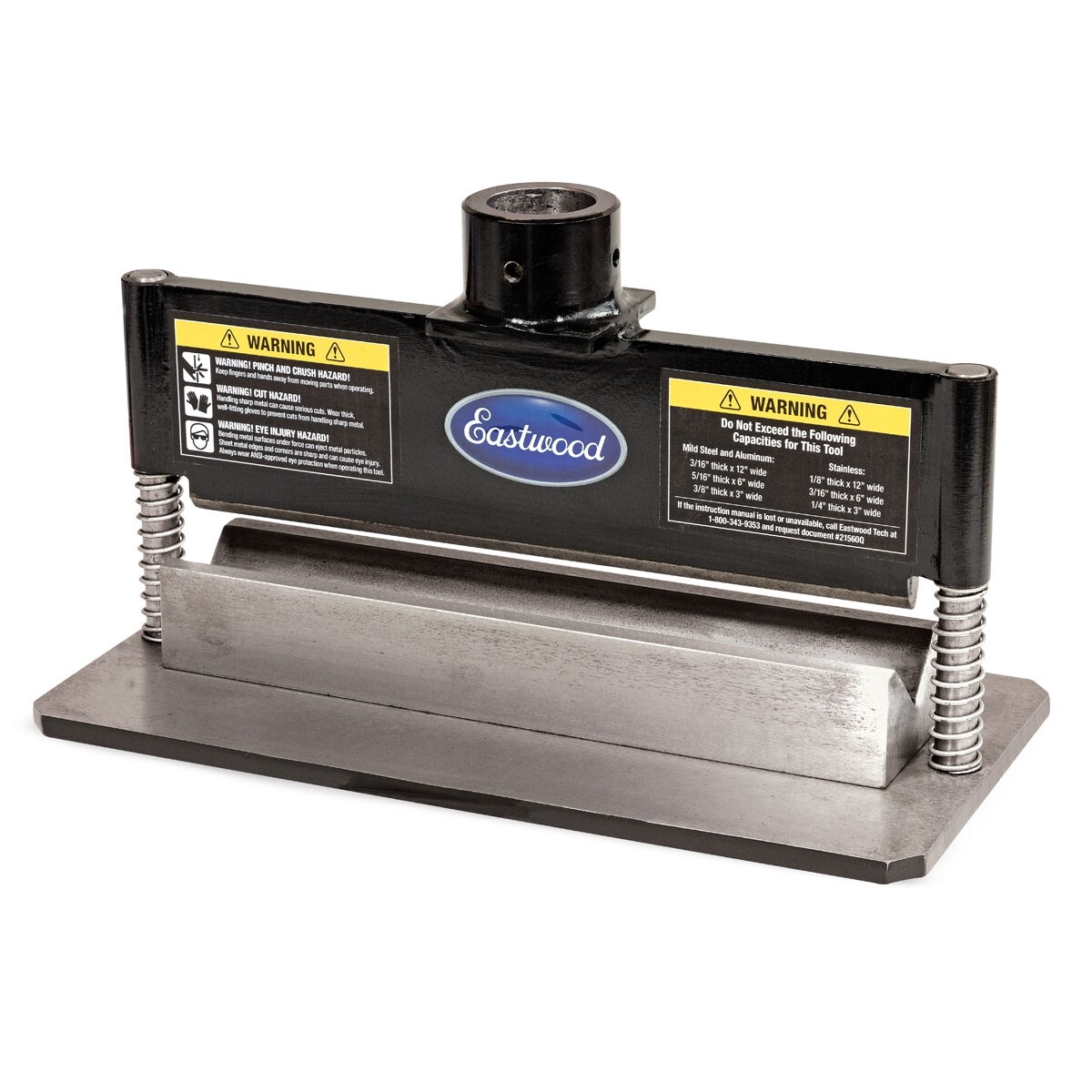

The Eastwood Press Brake Attachment is a precision-engineered metal working tool designed to produce accurate, variable-length bends in angles up to 90° in mild steel and aluminum in widths up to 12\" and thicknesses up to 3/8\".
- Create complex shapes
- Bends up to 90° angles
- Attaches to Most Standard 12 or 20 Ton Hydraulic Shop Presses
Create complex shapes such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors; truck bedside panels, inner fender structures, suspension brackets, engine/transmission mounts and much more all with one convenient accessory tool.
- Attach to Most Standard 12 or 20 Ton Hydraulic Shop Presses
- Upper die mounting cup Inside Diameter: 41mm
- Bending Length Max.: 12\"
- Overall Dimensions: 14.5\" Wide X 7.5\" Deep X 9.25\" High
- Bottom Die Overall width: 2.25 in
- Bottom Die Overall Height: 1.75 in
Bending Thickness (varies according to metal hardness and width of the workpiece)
Examples for mild steel:
- 3/16\" x 12\" Width
- 5/16\" x 6\" Width
- 3/8\" x 3\" Width
