Eastwood 180 Amp MIG Welder 120V 240V for Steel & Aluminum Auto Restoration For Sale

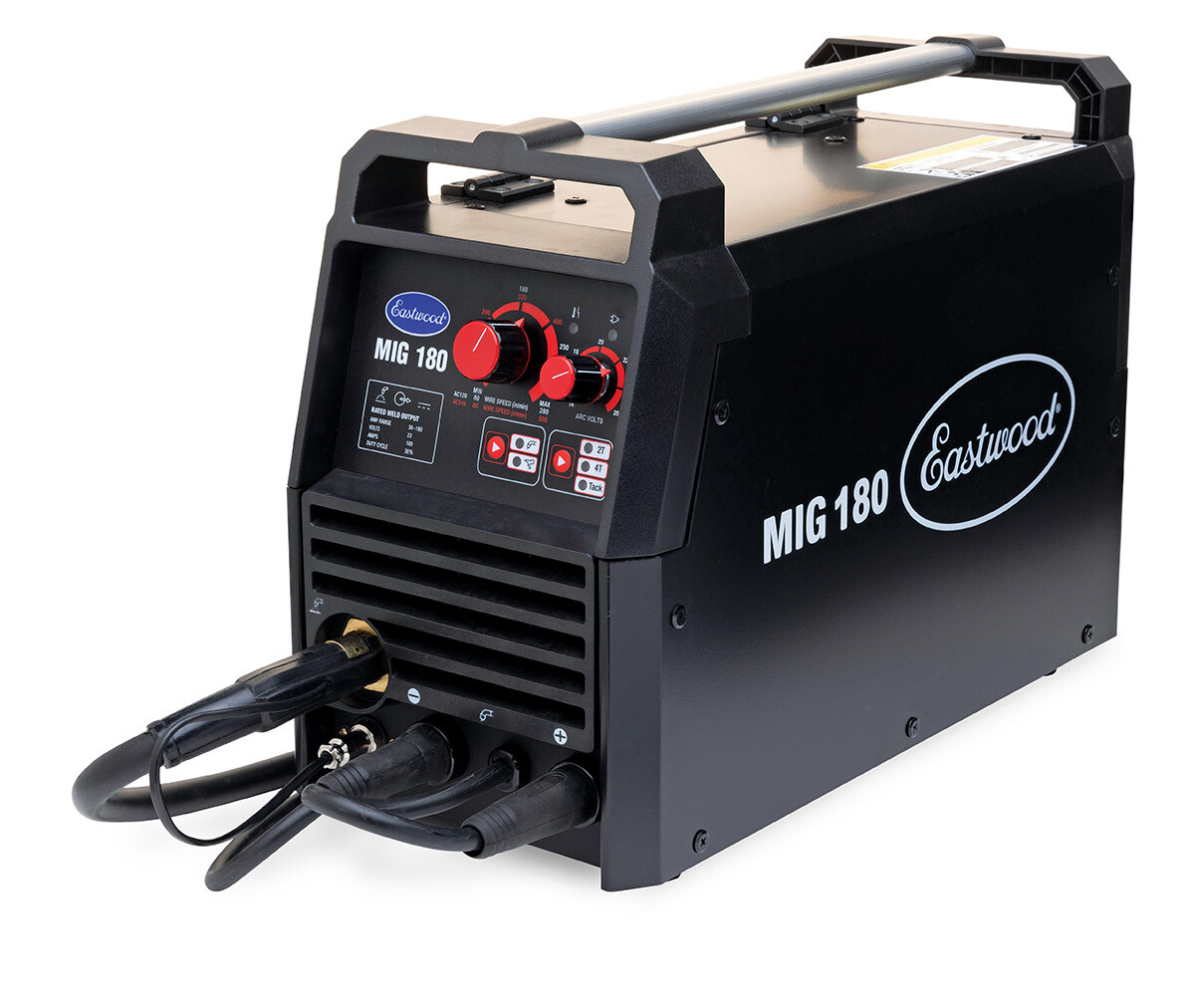

Eastwood\'s MIG 180 Welder

Whether you\'re a professional or enthusiast, you can now get even more industrial-quality features like inverter technology, 2T/4T modes and a tack weld setting in this hard-working, affordable MIG welder. Our R&D guys have been constantly improving our welders since 2009 and are proud of this newly designed Eastwood MIG 180 that\'s great for steel, aluminum and all-around metal fab and auto restoration.

The excellent bead quality and performance matches and often exceeds more expensive MIG welders, making this a great welder for your shop. We\'ve been helping DIYers and professionals do the job right since 1978 and are proud to stand behind this lightweight portable MIG 180 that\'s great for both new and experienced welders. This machine is available with and without a Spool Gun for welding aluminum. The Spool Gun is available separately or you can save money by purchasing it with this MIG 180.

New and Improved Features

Check out these awesome improvements over other machines.

• Operates on both 120 and 240 volts for maximum usability
• Latest IGBT Inverter technology
• Lightweight and portable at less than 26 lbs
• Metal drive motor for smoothest operation
• 2T/4T modes for comfort during long welds
• Tack Weld setting for consistency with sheet metal projects
• Portability - lightweight and can be powered by a generator

Eastwood MIG 180 Features:

• Operates on either 120V or 240V
• Welds mild and stainless steel, 24 gauge to 5/16\" (3/16\" on 120V)
• Welds aluminum, 14 gauge to 1/4\" with a Spool Gun (available separately or with the MIG 180)
• 30-180 amp welding range
• Latest IGBT inverter technology
• Lightweight and portable at less than 26 lbs
• Metal drive motor for smoothest operation
• Uses .023 - .035 wire in 4\" and 8\" spools
• Long ground, torch and power cables
• 2T/4T modes for long welds
• Tack weld setting for consistency in sheet metal
• 30% duty cycle at 180 Amps and 60% at 130 Amps
• Includes regulator and hose for optimum MIG welding
• Uses common Tweco style consumables
• Can also be used for Flux-Core welding if you don\'t have gas
• Compare to similar welders that sell for hundreds more
• Backed by Eastwood\'s no-hassle return policy and 3-year warranty

SpecificationsRated Electrical Input:

240 VAC; 29.6 AMP

120 VAC; 24 AMP

Required Breaker Size:30 ampPower Voltage:1 Phase, 120VAC / 240VAC, 60 HzPower Cord Receptacle Plug:NEMA 6-50RMax Voltage at No Load:61 V DCRated Duty Cycle:

120V: 30% @ 90 Amps

120V: 60% @ 65 Amps

120V: 100% @ 50 Amps

240V: 30% @ 180 Amps

240V: 60% @ 130 Amps

240V: 100% @ 100 Amps

Torch Consumables:Tweco style nozzle and contact tipsWire Feed Rate (IPM/Inches Per Minute):

120V: 80 - 280 IPM

240V: 80 - 551 IPM

Wire Sizes:0.023”(0.6mm) – 0.035”(0.9mm) mig wire

0.030”(0.8mm) – 0.035”(0.9mm) flux core wire

Welding Wire Spool:4” and 8” spool, up to 11 lbsMaximum Welding Thickness - Steel:5/16\"Output Current Range:

120V: 30 - 120 Amps

240V: 30 - 180 Amps

Weight:25.3 lbs (11.5 kg)Overall Dimensions:18” X 8.5\" X 13.25” Warranty3 Year Eastwood Warranty Contents

• MIG 180 Welder
• Gas Regulator with hose
• 8.5\' Ground Clamp and Cable
• NEMA 5-15P to NEMA 6-50R Adapter Cord (240v to 120v), 2\'
• MIG Torch, Nozzle, 0.030\" (0.8mm) Contact Tip and 8\' Cable
• Contact tip wrench
• Additional contact tips (.030\" and .035\")
• Instruction Manual
• 3-Year “No Hassle” Warranty

Application TipsWeld Aluminum with a Spool Gun

Many cars and trucks have aluminum parts, or you may need to weld aluminum for a metal fabrication project, and with a spool gun you can weld 14-gauge to 1/4-inch aluminum. Quickly and easily connect or remove it as needed for working on different parts and panels. The spool gun is sold separately or you can save money when you buy it together with the Eastwood MIG 180 here.

All-Around Steel and Aluminum MIG Welder

The MIG 180 comes complete (except for the gas cylinder) and is ready to weld 24 gauge to 5/16-inch mild steel and stainless. Connect the spool gun and you can also weld 14 gauge to 1/4-inch aluminum. With a 30 to 180 amp welding range, this high-quality MIG welding machine has a 30 percent duty cycle at 180 amps and a 60 percent duty cycle at 65 amps, giving you the power needed for tough projects.

The metal drive motor feeds the wire smoothly for the best operation and the infinitely adjustable wire speed and heat settings allows you to precisely control the machine. If you don\'t have a gas bottle, or are away from your shop, use the flux core wire for your welding project. Plus the ability to connect to either 240 or 120 volts makes this an incredibly versatile machine for any garage.

Precision Drive Motor

The drive roller mechanism, which is the heart of any MIG welder, is designed to our high specifications and delivers flawless wire feed without skipping or slipping on the wire. That\'s why the MIG 180 has a quality METAL drive motor. This means you\'ll get a great puddle and solid welds without having to go back and \"touch up\" spots. Beware of other units with much lower quality equipment!

High-Value Welders from Eastwood

This 180-amp MIG welder with spool gun has everything you need to get started, just add a bottle of shielding gas. It includes a precision metal drive motor, regulator with hose, Tweco-style torch, tips and accessories, modern features and technology. A \"Quick Setup\" welding chart specifies settings for each material thickness, eliminating guesswork and assuring complete penetration.

The unit is backed by Eastwood\'s No-Hassle 90-day return policy and industry leading 3-year manufacturer\'s warranty. We even provide tips and tricks on MIG welding in the Eastwood Garage that will get you started and improve your welding.

Consumables

Replacement Parts

12211 Contact Tip 0.023
12224 Contact Tip 0.030
12226 MIG Wire 0.023
12227 MIG Wire 0.030
12225 Flux Wire 0.030

Accessories

TIG Welding Cart
Auto Darkening Welding Helmets
Welding Jacket
Welding Gloves
