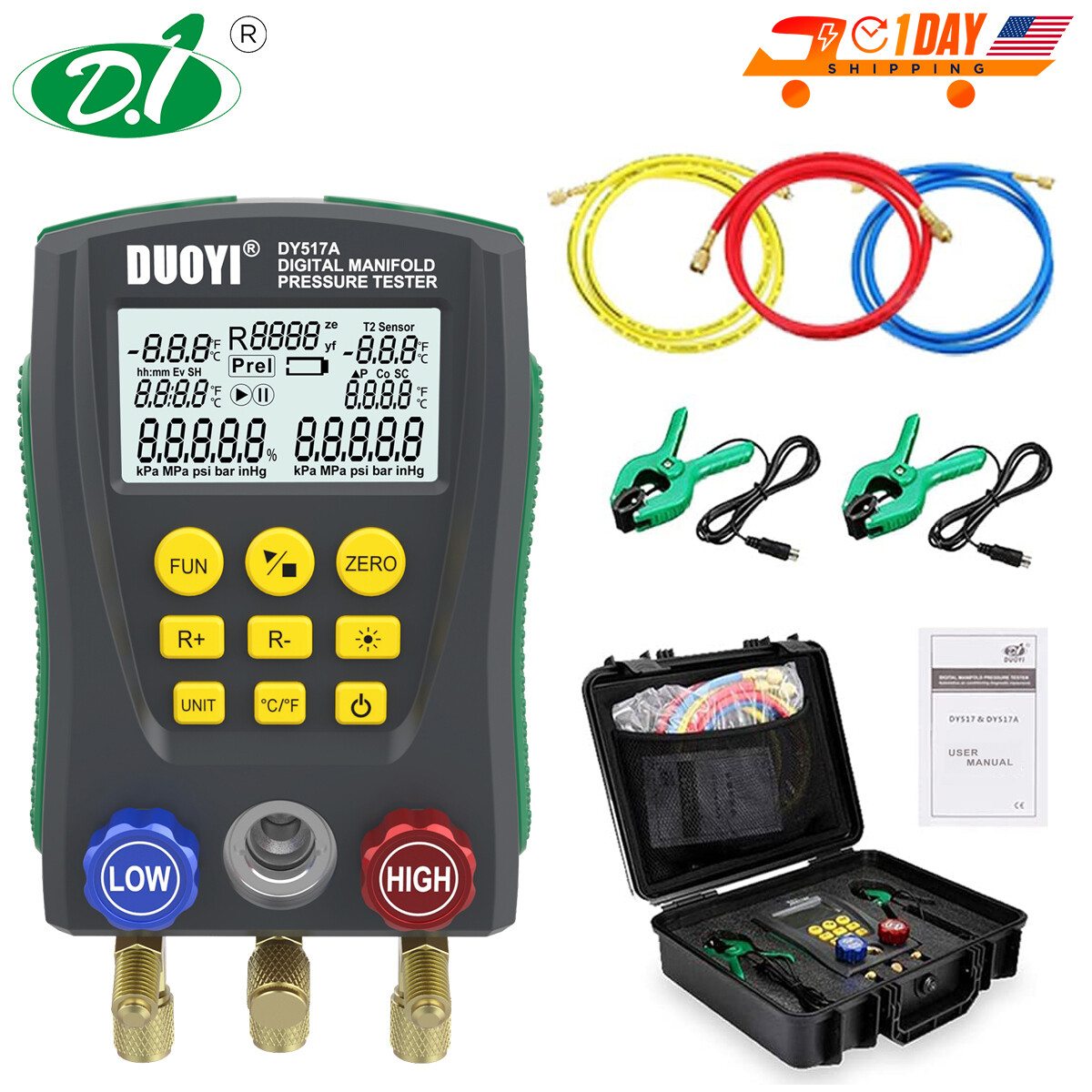

Digital Refrigeration HVAC Vacuum Pressure Manifold Temperature Tester DY517ASpecifications:
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C–150°C (-40°F–302°F)
Temperature test resolution:
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
Dimensions: 170*110*50mm weight: 950gEC/EN61010-1 safety standards:1) The pressure measured by the digtal manifold pressure tester is gauge pressure.2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).3) The limit pressure is 10 Mpa (100 bar).4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).Warmly Note: The HVAC guage will read random numbers when it is powered on. You must press the ZERO key to clear the numbers after you power it on, and then you can use it normally (It is not correct to use it directly without pressing the ZERO button). Before using the HVAC guage, please make sure that refrigerant hoses and temperature sensor clamps are connected properly. Poor connection of the temperature sensor clamps will make it impossible to read the temperature. Poor connection of the refrigerant hoses will cause refrigerant leakage.Feature:★Standard -- The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage. HVAC System Gauge Set has double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.★CONVENIENT-- The instrument can measure double pressure at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit.★WHAT YOU CAN GET MORE -- Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement, pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.★DESIGN -- Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switches, 1/4-inch standard interface design to ensure that the instrument's durability and versatility★HIGH-PRECISION -- The instrument uses high-strength engineering plastic and flexible non-slip silicone design. The whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability.Note:1.Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.2.Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.3. Please wear qualified protective equipment to protect user during testing.4.Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.5.Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packedhoses does not match the pressure requirement, you can use suitable replacements for testing.Packing list:1x Refrigerantion Digital Manifold Gauge
1x User Manual (in English)
2x Temperature Clip3x Test Pipe1x SuitcaseBattery not includePaymentDelivery detailsTerms of salesAbout usContact usPaymentWe only accept payments.Payment should be made within 5 days after offerding ends.We are not responsible for buyers' local tax and duty.
