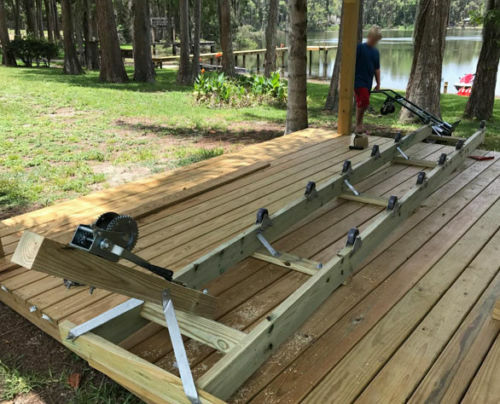

Caster Wheel Large Shore Ramp Kit
Ramp Capacity: 1200lb
Kit includes 12 rollers with mounting brackets, a 1200lb capacity winch with a 33ft. Nylon webbing strap with boat hook, post supports, bracing and fasteners
Rollers are non marking thermoplastic rubber with the proper hardness to protect the finish on your watercraft and provide ease of winching up onto the ramp
Includes everything except the lumber, you will need to buy your own lumber (we strongly recommend marine lumber)
All hardware brackets are hot dipped galvanized for superior corrosion resistance
Customizable - Our kit is 16ft long but we have expansion kits if you need more length
If you need our larger 2000lb kit or an expansion kit Click Here!
Assembled Depth (in.) 240in
Assembled Width (in.) 28in
Assembled Height (in.) 30in
Assembled Weight (in.) 40in
Qty
Description
8
Side Braces
24
Roller Brackets (2 per Roller)
1
Winch Post Brace – Right
1
Winch Post Brace – Left
1
Winch
1
33 ft. (10 Meter) Galvanized Cable with Hook
12
Rollers – Polyurethane
12
Roller Spanner Bushing
Fasteners
12
Stainless Steel Nylock Nut – 3/8”
12
Stainless Steel Hex Bolt – 3/8” x 2 ½”
30
3” Deck Screws
18
Galv. Carriage Bolts – 3/8” x 2 ½”
24
Galv. Hex Bolts – 3/8” x 2 ½”
3
Galv. Hex Bolts – 3/8” x 4 ½”
1
Galv. Carriage Bolt – ½” x 8” + Nut and Washer
45
Galv. 3/8” Nuts
45
Galv. 3/8” Split Washers
1
Phillips Screwdriver Bit
Suggested Customer Supplied Lumber
2
Pressure Treated 2” x 6” x 16ft
6
Pressure Treated 2” x 4” x 20-36ft
1
Pressure Treated 4” x 4” x 8ft ***(Customize if necessary)
