- Input Voltage: 12V/24V/36V nominal, accept(8V-40V) range; Output Voltage: DC 12V 3A 36W
- Adopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2S
- Compact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipation
- Assembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
- safely and reliable in -40°C~80°C range.
These dc voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices.
Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
FeaturesNon-Isolated Module
- Input Voltage: 12V/24V/36V nominal, Input range: 8V-40V
- Input Current: 10A (max) ; No-load input current: ≤10mA
- Output Voltage: DC 12V ±2% ; Output Current: 3A
- Ripple Wave: 50Mv
- Starting Delay time: ≤ 2S
- Efficiency: ≥95%
- Operating Temperature:-40 ~ 80℃
- Net Weight: 110g / 3.8oz
Package Include

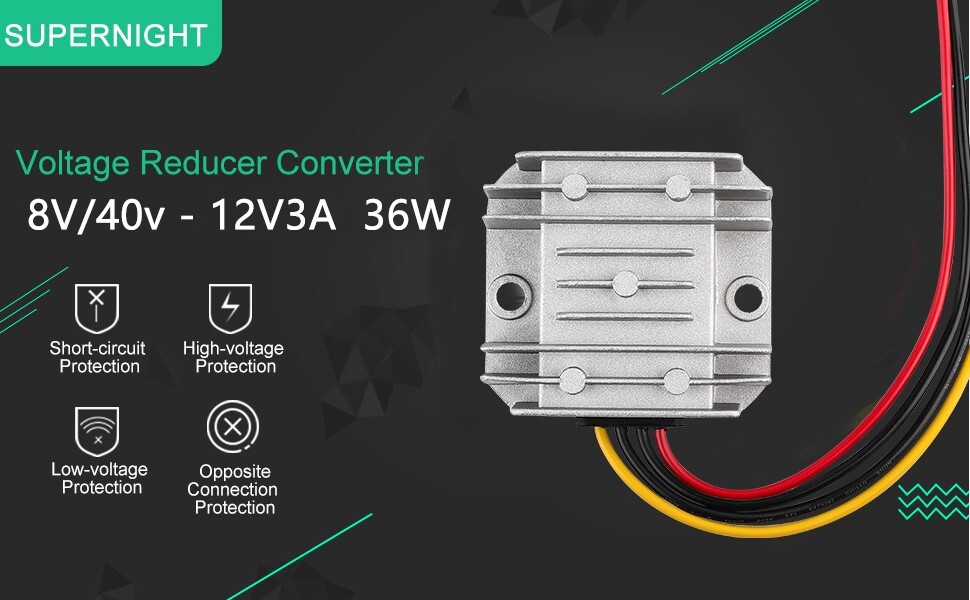

1x Buck Boost Converter 8V-40V to 12V 3A 36W
IP68 Waterproof ModuleBetter Heat Dissipation
Strict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.
Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.
Wide Applications
These compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C.
Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
