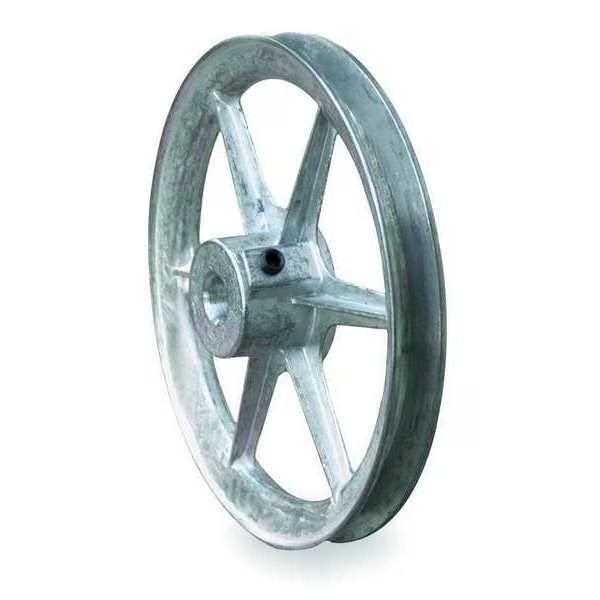

Congress Ca1400x075kw 3/4\" Fixed Bore 1 Groove Standard V-Belt Pulley 14.00\" Od For Sale

Standard V-Belt Pulley, 3L Pitch Diameter 13.55 in, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 13.75 in, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 13.75 in, AX Pitch Diameter Not Applicable, B Pitch Diameter Not Applicable, BX Pitch Diameter Not Applicable, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 3/4 in, Bore Type Fixed, For Belt Trade Size 4L, A
Pulley Outside Dia.: 14 in
Fits Shaft Dia.: 3/4 in
Number of Grooves: 1
For V-Belt Section: 3L, 4L, A
Pulley Material: Zinc
Bushing Required: None
Pulley Bore Type: Fixed Bore
Construction: Spoked
Pulley Bore Dia.: 3/4 in
Industry Number: CA1400X075KW
Keyway Size: 0.187\" x 0.093\"
Set Screw Included: Yes
4L or A Belt Pitch Dia.: 13.85 in
3L Belt Pitch Dia.: 13.55 in
Item: Standard V-Belt Pulley
Keyway Size Type: 0.187 in x 0.093 in
Includes: Set Screw
Length through Bore: 1 3/32 in
Resistance Properties: Corrosion Resistant, Impact Resistant
For Belt Trade Size: 4L, A
C Pitch Diameter: Not Applicable
A Pitch Diameter: 13.75 in
3VX Pitch Diameter: Not Applicable
3L Pitch Diameter: 13.55 in
Bore Diameter: 3/4 in
Pitch Diameter: 13 3/4 in
Material Fabrication: Cast
AX Pitch Diameter: Not Applicable
B Pitch Diameter: Not Applicable
4L Pitch Diameter: 13.75 in
5VX Pitch Diameter: Not Applicable
Hub Projection: 0.594 in
Face Width: 0.69 in
Keyway Depth: 3/32 in
Maximum Bore Diameter: 3/4 in
Bore Type: Fixed
For V-Belt Type: Classical
Material Grade: Zamak 3
Outside Diameter: 14 in
5V Pitch Diameter: Not Applicable
Keyway Width: 3/16 in
BX Pitch Diameter: Not Applicable
Pulley Construction: Spoked
Weight: 2.7 lb
3V Pitch Diameter: Not Applicable
Material: Zinc
CX Pitch Diameter: Not Applicable
Set Screw Size: 5/16 in
Hub Type: One Side
Country of Origin (subject to change): United States
Package Quantity: 1
