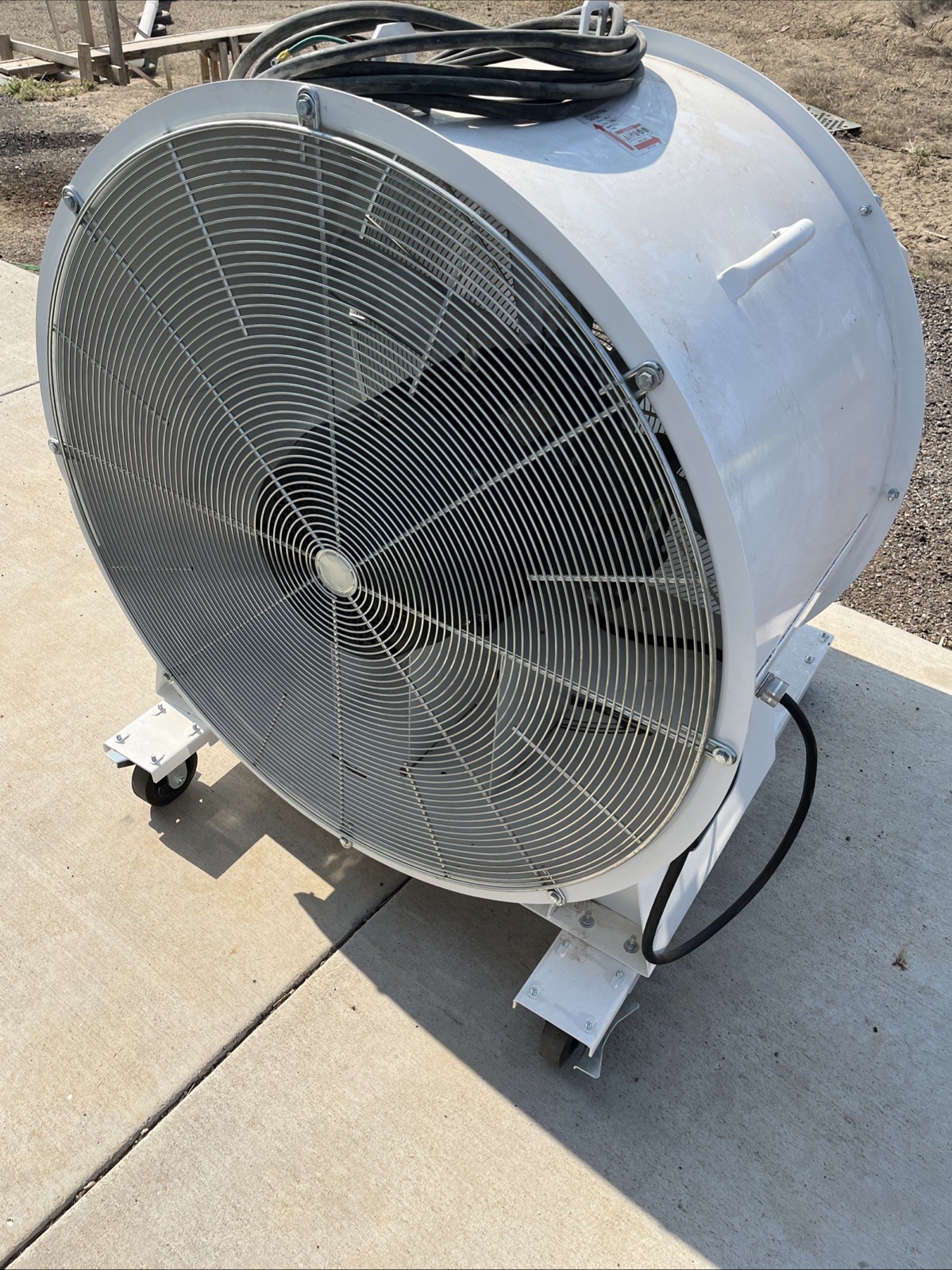

Cincinnati Industrial 48\" Fan/Blower DDF-48 | Up to 44,500CFM | U.S.A. SELLER For Sale

Cincinnati Industrial 48\" Fan/Blower DDF-48 | Up to 44,500CFM | U.S.A. SELLER

Unit was pulled from an electrical panel from a large Mustang Dynamometer. This Dyno was installed for a startup EV company that had intended to run all of their vehicle test miles on the Dyno instead of out on the open road. The company went under shortly after the unit was installed so all parts related to this system have seen very little use and were all pulled from working service.

NOTE: Unit was installed, but is in great condition.

Guaranteed to work or your money back. Please see pictures for more details.
PLEASE NOTE: We are not experts on the items we sell, we are primarily resellers. However, if there are any questions, we will do our best to help. Thank you for taking the time to look through this description.

FREIGHT Shipping disclosure:

We will send an invoice for freight after a purchase has been made. Lower 48 states only some exclusions apply.

——

Additional AI Generated Information:(Please Ensure Correct Details)

Manufacturer

Cincinnati Fan

Country of Manufacture

United States

Item Specifics & Specifications

• Manufacturer: Cincinnati Fan
• Model: DDF-48
• Product Type: Direct Drive Tube Axial Fan
• Fan Diameter: 48 in. (Nominal)
• Fan Style: Tube Axial / Duct Fan
• Drive Type: Direct Drive
• Motor Type: Continuous Duty TEFC (Totally Enclosed Fan Cooled) Motor (standard on DDF models)
• Airflow Capacity: Up to 44,500 CFM
• Maximum Static Pressure: Up to 10 in. WG (varies by motor/propeller selection)
• Maximum Standard Air Temperature: 175°F (79°C)
• Rotation: Direct coupled motor to propeller
• Housing Material: Heavy-duty welded steel
• Housing Gauge: 10-gauge steel drum (34\"–48\" models)
• Flange Construction: Heavy-duty 1-1/2\" welded angle iron flanges on 48\" models
• Drum Construction: Continuously welded steel housing
• Propeller Material: Cast aluminum (standard) or optional fabricated steel
• Propeller Balance: Factory statically balanced
• Finish: Gray baked enamel industrial finish
• Surface Preparation: Detergent cleaned and phosphatized before painting
• Mounting Orientation: Horizontal shaft or vertical up-blast configuration
• Installation: Duct mounted
• Bearings: Motor bearings (direct drive configuration)
• Duty Rating: Continuous industrial duty
• Electrical: Varies depending on installed motor
• Voltage: Varies by motor
• Frequency: 50/60 Hz (motor dependent)
• Horsepower: Varies by installed motor
• Phase: Single or Three Phase (motor dependent)
• Enclosure: TEFC motor standard
• Compatible Applications:
  • Industrial ventilation
  • Manufacturing facilities
  • Warehouse ventilation
  • Dust collection systems
  • Process air movement
  • Exhaust systems
  • Fresh air make-up systems
  • Commercial HVAC
• Features:
  • Heavy-duty industrial construction
  • High airflow capacity
  • Low maintenance direct-drive design
  • OSHA guard options available
  • Companion flanges available
  • Designed for continuous operation
  • Industrial-grade welded steel housing
  • Precision-balanced propeller for smooth operation
  • Designed for installation into round duct systems
• Approximate Overall Diameter: 48 in. fan size
• Approximate Weight: Varies by motor and configuration
• Color: Industrial Gray
• Brand: Cincinnati Fan
• Made in: USA

Description

The Cincinnati Fan DDF-48 is a heavy-duty direct drive tube axial fan designed for high-volume industrial ventilation and air movement applications. Built with a welded steel housing and capable of delivering airflow up to 44,500 CFM, it is ideal for demanding commercial and industrial environments requiring reliable continuous-duty performance.
