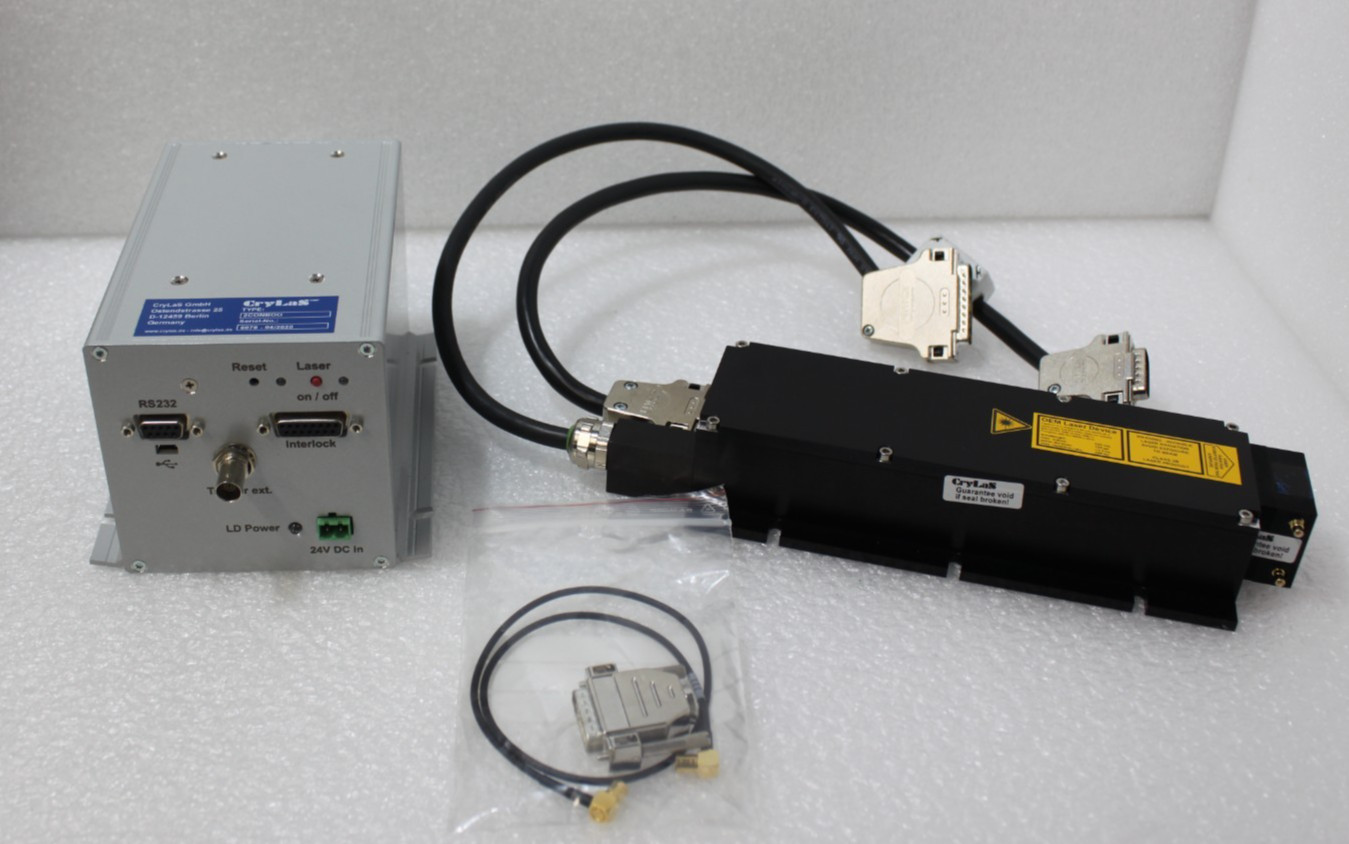

CRYLAS diode-pumped laser head FTSS 355-50/2CONBOO 355nm complete
The CryLaS FTSS 355-50 is a diode-pumped, passivelyQ-switched solid-state laser. It emits a highly focused 355 nm ultraviolet(UV) beam. Delivering ultra-short nanosecond pulses and high peak power, itis commonly used in biology, analytics, and material processing.
Optical Specifications
- Wavelength: 355 nm
- Pulse Energy: > 70 µJ
- Peak Power: 50 kW – 80 kW
- Pulse Width: < 1.3 ns (FWHM)
- Repetition Rate: 1 to 100 Hz (with external trigger)
- Spatial Mode: TEM₀₀ (M² < 1.5) for a very round, clean beam
- Polarization: Vertical, > 100:1
- Power Stability: < 1% rms (pulse-to-pulse)
Electrical & Physical Specifications
- Warm-up Time: < 15 minutes
- Power Consumption: < 70 W
- Line Voltage: 100–240 V AC (50-60 Hz) or 24 V DC
- Interface: RS 232, USB
- Operating Temperature: 18°C to 38°C
