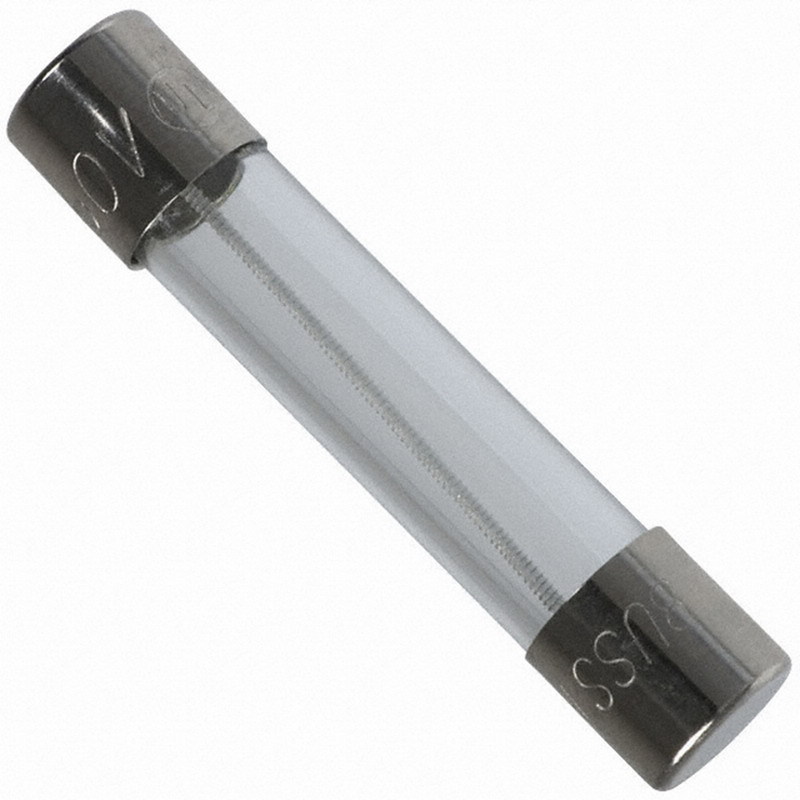

Bussmann MDL-3-R Fuse, 3 Amp, 250V AC, 3ag, Slo Blo Glass, Pack of 100 For Sale

Bussmann Time-delay fuse features nickel-plated brass end cap for durability/protection. Fuse is rated at 3 Amps and 250 Volts. It has interrupt rating of 100 Amps at 250 VAC and 10000 Amps at 125 VAC. It measures 1/4 Inch x 1-1/4 Inch. Fuse has ferrule terminal and cartridge mounting for convenient installation. Fuse with 1/4-Inch diameter has typical DC cold resistance of 0.096 Ohms and typical voltage drop of 0.096 Volts. Fuse is UL listed. Pack of 100.
Amperage Rating3 AmpApplicationFor Use With Electronic CircuitsCatalog Description3A 250V 3AG - 1/4" x 1-1/4" RoHS Compliant Glass, Time Delay FuseCatalog NumberMDL-3-RConnectionFerrule EndCountry of OriginTWElementSingleEnvironmental ConditionsShock: MIL-STD-202, Method 207, (HI Shock), Vibration: MIL-STD-202, Method 204, Test Condition C (Except 5 g, 500 Hz)FinishNickel-Plated Rating35 Amp at 250 Volt AC, 10 Kilo-Amp at 125 Volt ACItemTime-Delay FuseMaterialGlass Tube, Brass Time60 min Maximum At 135% Rated Current, 5 sec Minimum to 120 Sec Maximum At 200% Rated Listed Card: MDL 1/16 - 8A (Guide JDYX, File E19180), UL Recognized Card: MDL 9 - 30A (Guide JDYX2, File E19180), CSA Certification Card: MDL 1/16 - 8A (Class No. 1422-01), CSA Component Acceptance: MDL 9-30A (Class No. 1422-30), CETypeMDL SeriesVoltage Rating250 Volt ACFeature#1Size: 1/4 Inch x 1-1/4 InchFeature#2Time delay allows close sizing on inductive circuits
