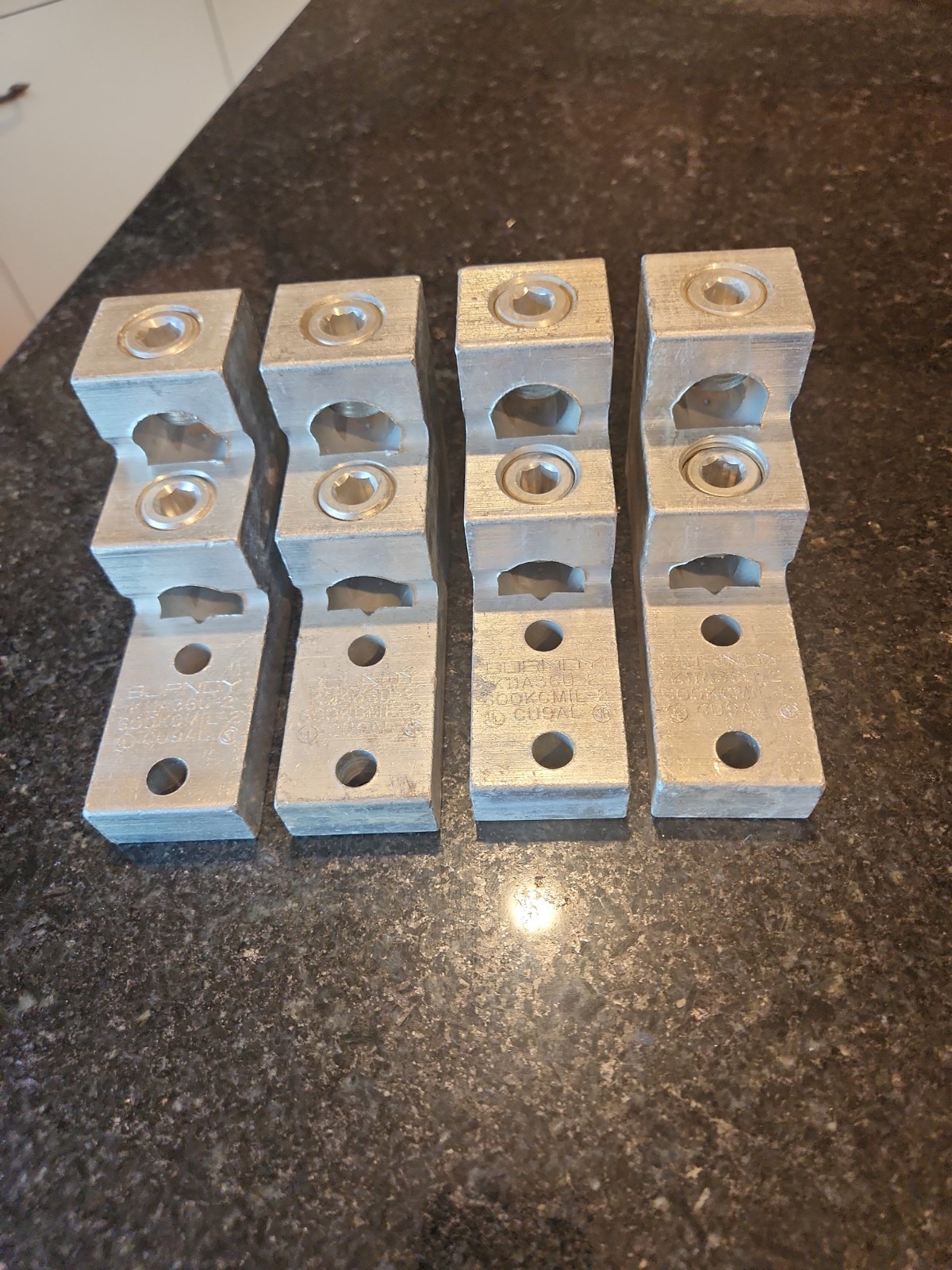

Burndy K11A36U-2 Dual Rated Mechanical Lug 2 AWG-600 kcmil CU9AL 2-Hole Lot of 4:
$75.00
Includes all 4 items pictured. Ordered, stored, never installed.
The Burndy K11A36U-2 is an aluminum universal terminal mechanical lug, dual-rated for 2 AWG to 600 kcmil copper or aluminum conductors, featuring 2 holes and 2 conductors.
Key Specifications
- Wire Range: 2 AWG stranded up to 600 kcmil
- Material: Extruded aluminum alloy with electro tin-plating
- Voltage & Temp: Rated for up to 600 V and 194°F (90°C)
- Stud Size & Holes: Two 3/8-inch bolt holes with 1.38-inch spacing
- Tightening Torque: 375 in-lb (hex screw head type)
