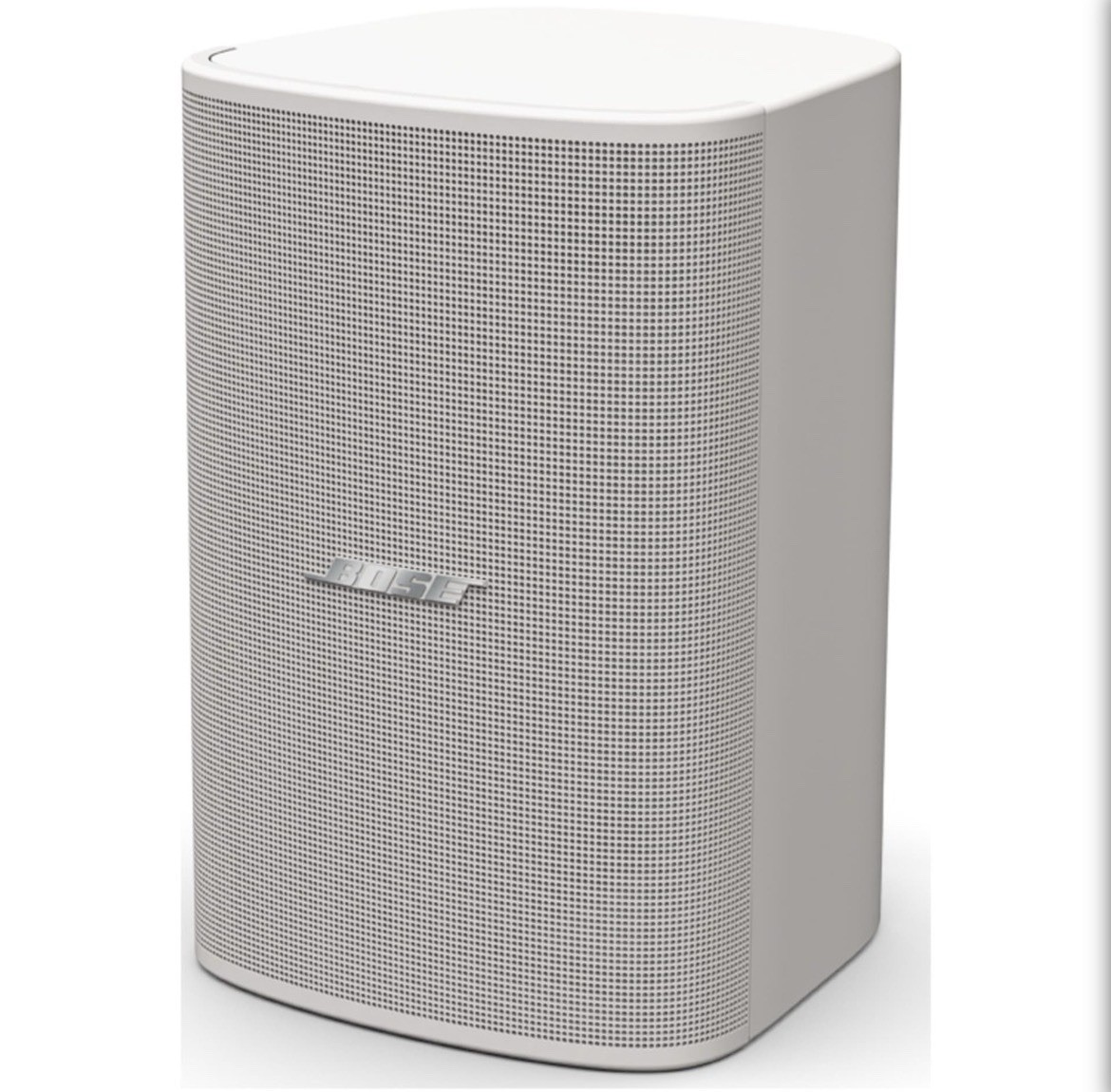

DM5SE Foreground Livespeaker at EMI Audio
The DesignMax DM5 SE loudspeaker offers rich lows and clear, intelligible highs
— along with premium aesthetics that complement any commercial sound installation.
The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz.
The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use
Specs
Technical Summary
Frequency Response (+/-3 dB)
73 - 17,000 Hz
Nominal coverage (H x V)
135° conical
Power Handling, peak
240 W
Maximum SPL @ 1m
107 dB
Frequency Range (-10 dB)
65 - 20,000 Hz
Power Handling, long-term continuous
60 W
Sensitivity (SPL/1W @ 1 m)
89 dB
Nominal Impedance
8 ohm (transformer bypass)
