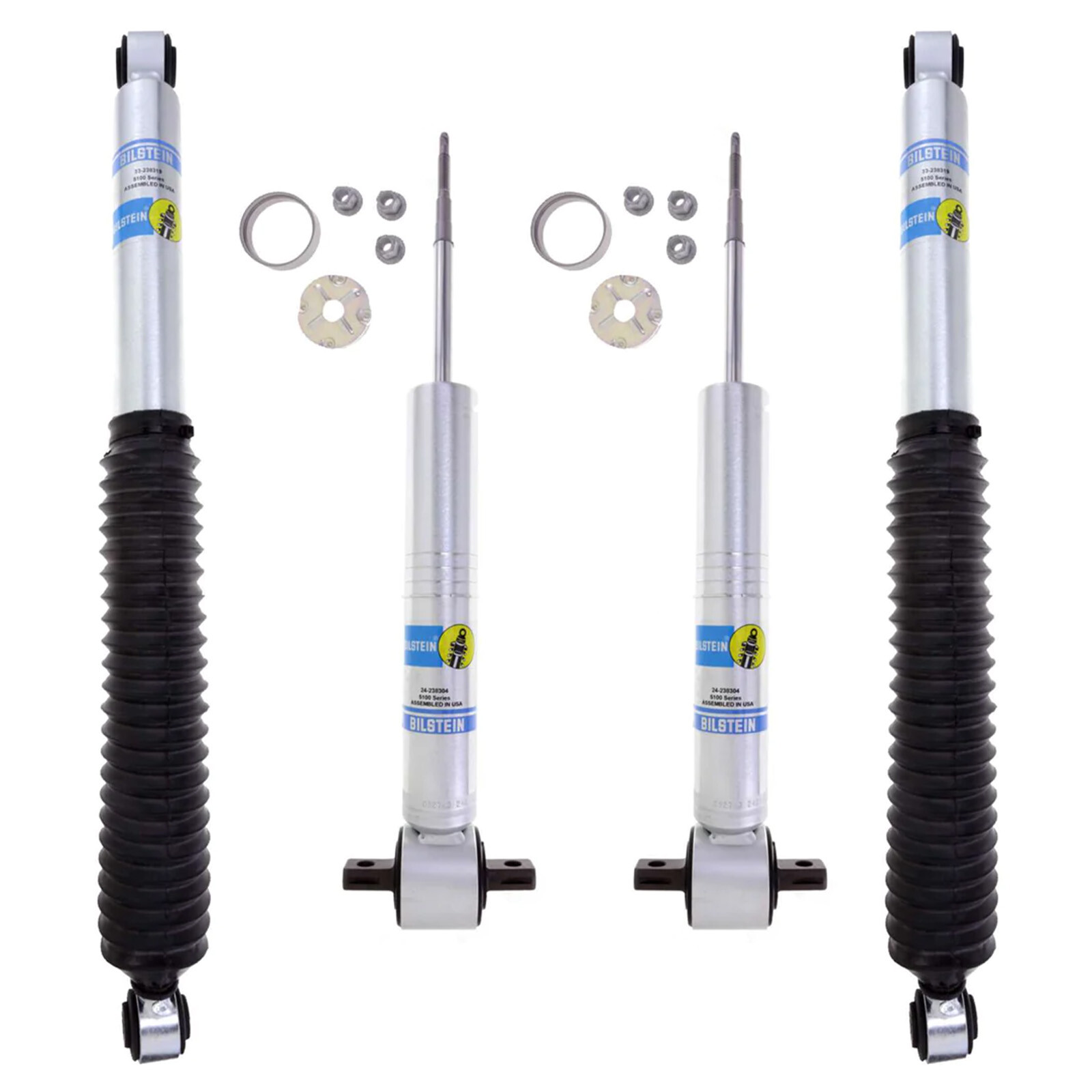

Bilstein B8 5100 Front & Rear Gas Shocks for 14-19 Silverado Sierra 1500 4WD PART NUMBER: 24-336895 / 33-238319
BRAND: BILSTEIN
B0CTVF4D62 DESCRIPTION B8 5100 Front & Rear Suspension Shock Absorber Set
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Vehicle Fitment
2014-2018 Chevrolet Silverado 1500 4WD With 0-1" Rear Lift
2019 Chevrolet Silverado 1500 LD 4WD Same as 2014-2018 Body Style; With 0-1" Rear Lift
2014-2018 GMC Sierra 1500 4WD With 0-1" Rear Lift
2019 GMC Sierra 1500 Limited 4WD Same as 2014-2018 Body Style; With 0-1" Rear Lift
*exclude Denali
SPECIFICATIONS
- Part Number: 24-336895 Ride Height Adjustable Front Shocks
- Collapsed Length (in) :15.00
- Extended Length (in) :18.89
- Collapsed Length (mm) :381.0
- Extended Length (mm) :479.7
- Finish :Zinc Plated
- Reservoir :No
- Body Design :Snap Ring Grooved Body (Coilover)
- Body Diameter (id) :46mm
- Spring Seat Included :Yes
- Adjustable Damping :Non-Adjustable
- Part Number: 33-238319 Rear Shocks
- Collapsed Length (IN): 16.18
- Extended Length (IN): 25.79
- Collapsed Length (MM): 411.0
- Extended Length (MM): 655.0
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter: 46mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
