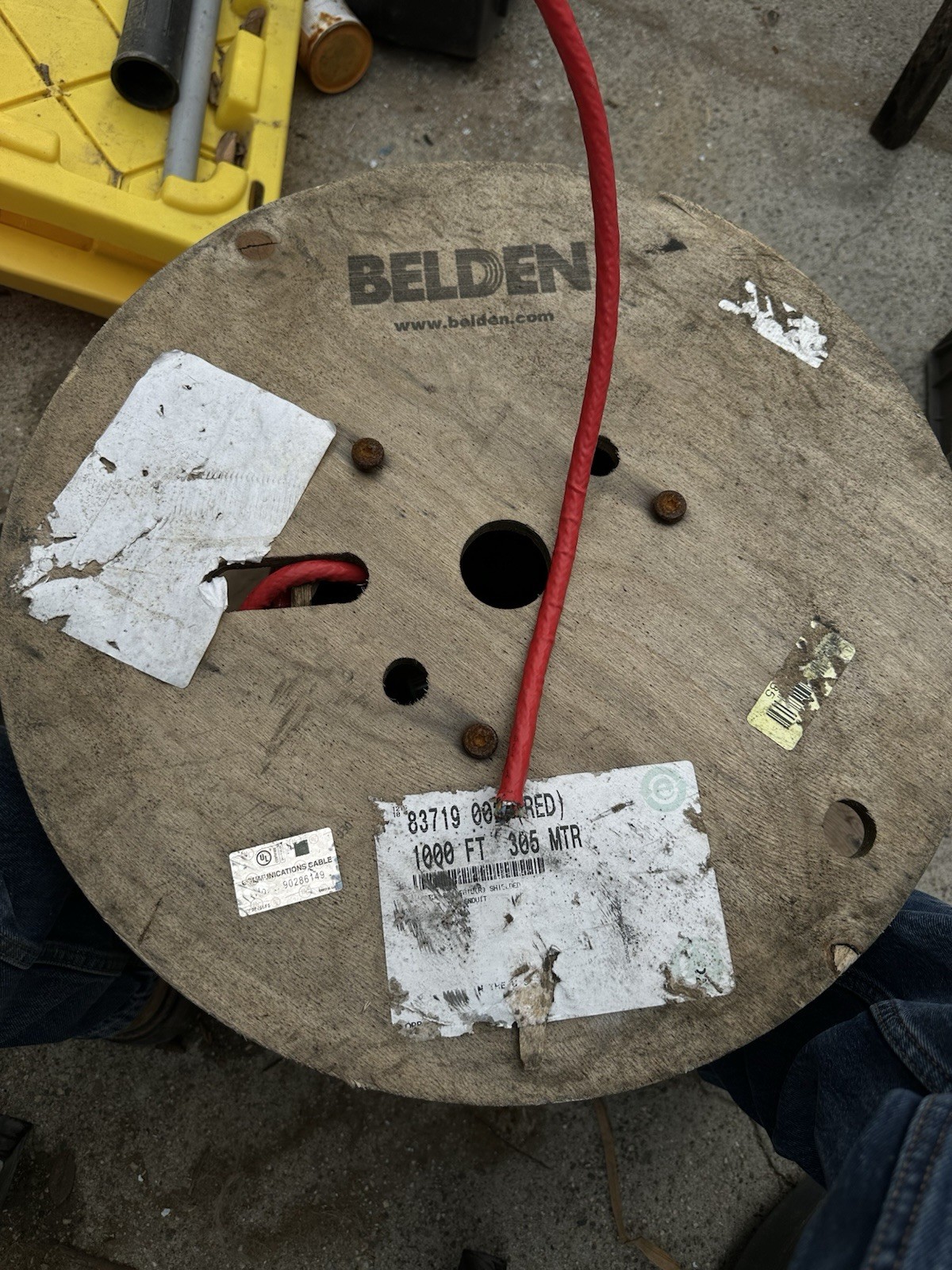

Belden 83719 16 AWG 19 Conductor 19x29 Stranding Tinned Copper 300V Electronic CableDescription:High Temperature Electronic, 19 Conductor 16 AWG (19x29) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid (85%) Shield, FEP Outer Jacket, CMP.Insulation:• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.069 in (1.8 mm)Outer Shield:• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%• Overall Beldfoil (aluminum foil-polyester tape, 100% coverage) and tinned copper braid shield (85% coverage).Outer Jacket:• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Diameter: 0.425 in (10.8 mm)
• Overall Cable Diameter (Nominal): 0.425 in (10.8 mm)Standards:• Voltage Rating: 300 V.
• Operating Temperature: -70°C to +200°CApplications:• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiringSpecifications:• Size (AWG): 16
• No. of Conductor: 19
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 83719
