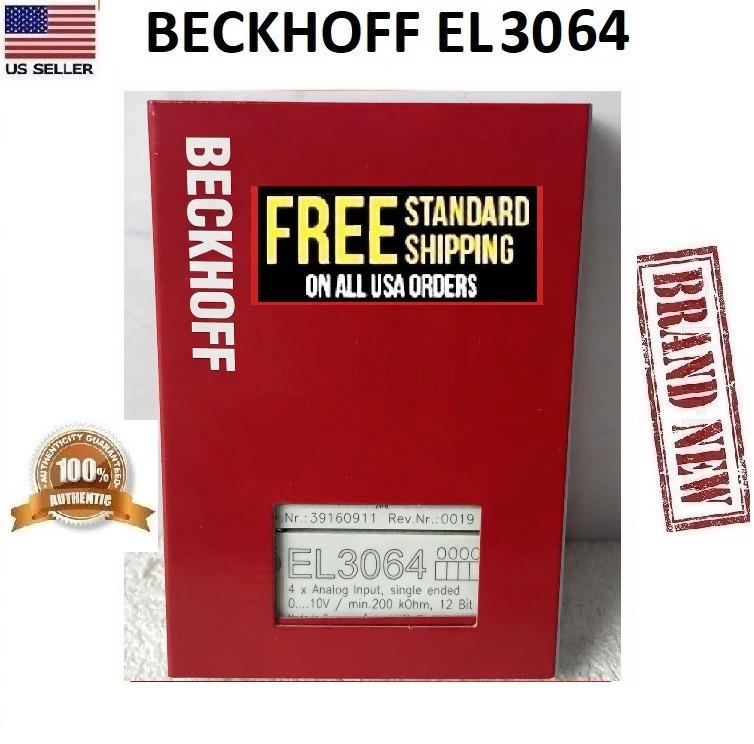

Beckhoff EL3064 4-Channel Analog Input Terminal 0-10V 12-Bit EtherCAT Module For Sale

Brand New. Factory Sealed. Warranty. Fast Free ShippingBeckhoff EL3064 4-Channel Analog Input Terminal 0-10V 12-Bit EtherCAT Module
The EL3064 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitized with a resolution of 12 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3064 Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.

• Technical data
• Housing data

To topTechnical dataEL3064Number of inputs4 (single-ended)Power supplyvia the E-busSignal voltage0…10 VDistributed clocks–Internal resistance> 130 kΩInput filter cut-off frequency1 kHzDielectric strengthmax. 30 VConversion time0.625 ms default setting, configurable, multiplexResolution12 bit (16 bit presentation incl. sign)Measurement error/uncertainty< ±0.3% (relative to full scale value)Electrical isolation500 V (E-bus/signal voltage)Current consumption E-bustyp. 130 mACurrent consumption power contacts–Bit width in the process imageinputs: 16 byteSpecial featuresactivatable FIR/IIR filters, limit value monitoringWeightapprox. 60 gOperating temperature-25…+60°CStorage temperature-40…+85°CRelative humidity95%, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Pluggable wiring levelfor all ESxxxx terminalsProtect. rating/installation pos.IP20/variableApprovals/markingsCE, CCC, UL, ATEX, IECEx, cFMusEx markingATEX:
II 3G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc

• Technical data
• Housing data

To topHousing dataEL-12-8pinES-12-8pinDesign formcompact terminal housing with signal LEDsterminal housing with pluggable wiring 35 mm DIN rail, conforming to EN 60715 with lockSide by side mounting by means ofdouble slot and key connectionMarkinglabeling of the BZxxxx seriesWiringsolid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriverConnection cross-sections*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²Connection cross-section AWGs*: AWG28…14,
st*: AWG28…14,
f*: AWG26…16s*: AWG28…16,
st*: AWG28…16,
f*: AWG26…16Stripping length8…9 mm9…10 mmCurrent load power contactsImax: 10 ADimensions (W x H x D)12 mm x 100 mm x 68 mm

*s: solid wire; st: stranded wire; f: with ferrule
