BURNDY YA36A3 2-Hole, 600 MCM, AL9CU 1/2\" Compression Lug Box of 2 For Sale

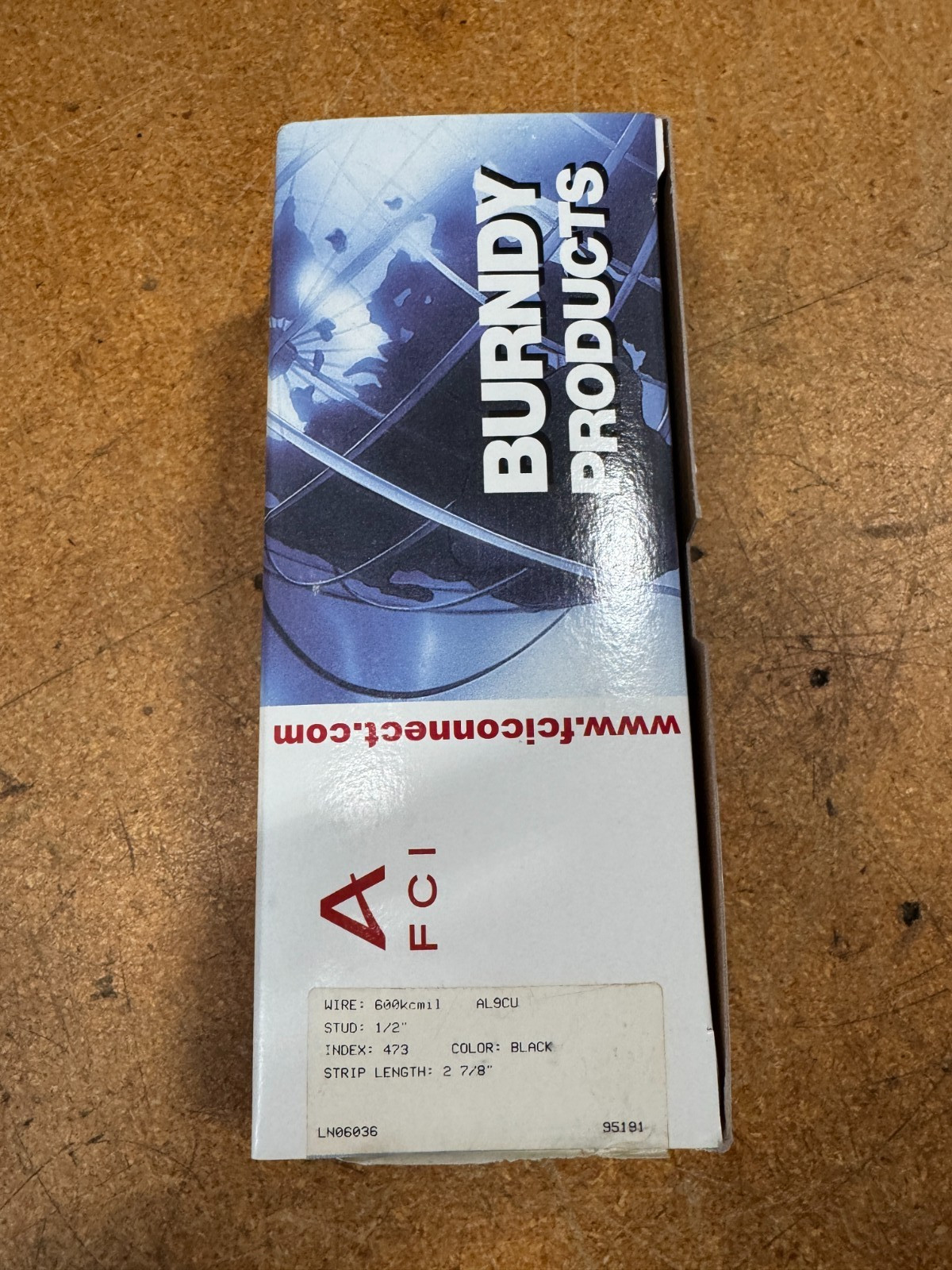

Burndy YA36A3 Box of 2 Lugs
The BURNDY YA36A3 is a HYLUG™ dual-rated aluminum compression lug for permanently terminating 600 kcmil stranded aluminum or copper conductors to a two-hole equipment pad or bus connection. It is tin plated, prefilled with PENETROX™ A13 oxide inhibitor, and rated AL9CU, 90°C, up to 35 kV.
The lug is designed for a permanent crimped connection. Its aluminum barrel and tin plating allow use with either copper or aluminum conductor when installed with the correct BURNDY die and tooling. The factory-installed oxide inhibitor helps limit oxide formation at the aluminum-conductor interface, while the chamfered barrel entrance helps prevent strand damage during conductor insertion.
For the BURNDY YA36A3 (600 kcmil, AL9CU, two-hole lug), use the black, die-index 473 die configuration. In the standard BURNDY U-die system, that is the U36ART die set, used in a 12-ton compression tool such as the Y35, Y750, PAT750, or a Y46/PAT46 with the PUADP1 adapterLocation S-1
