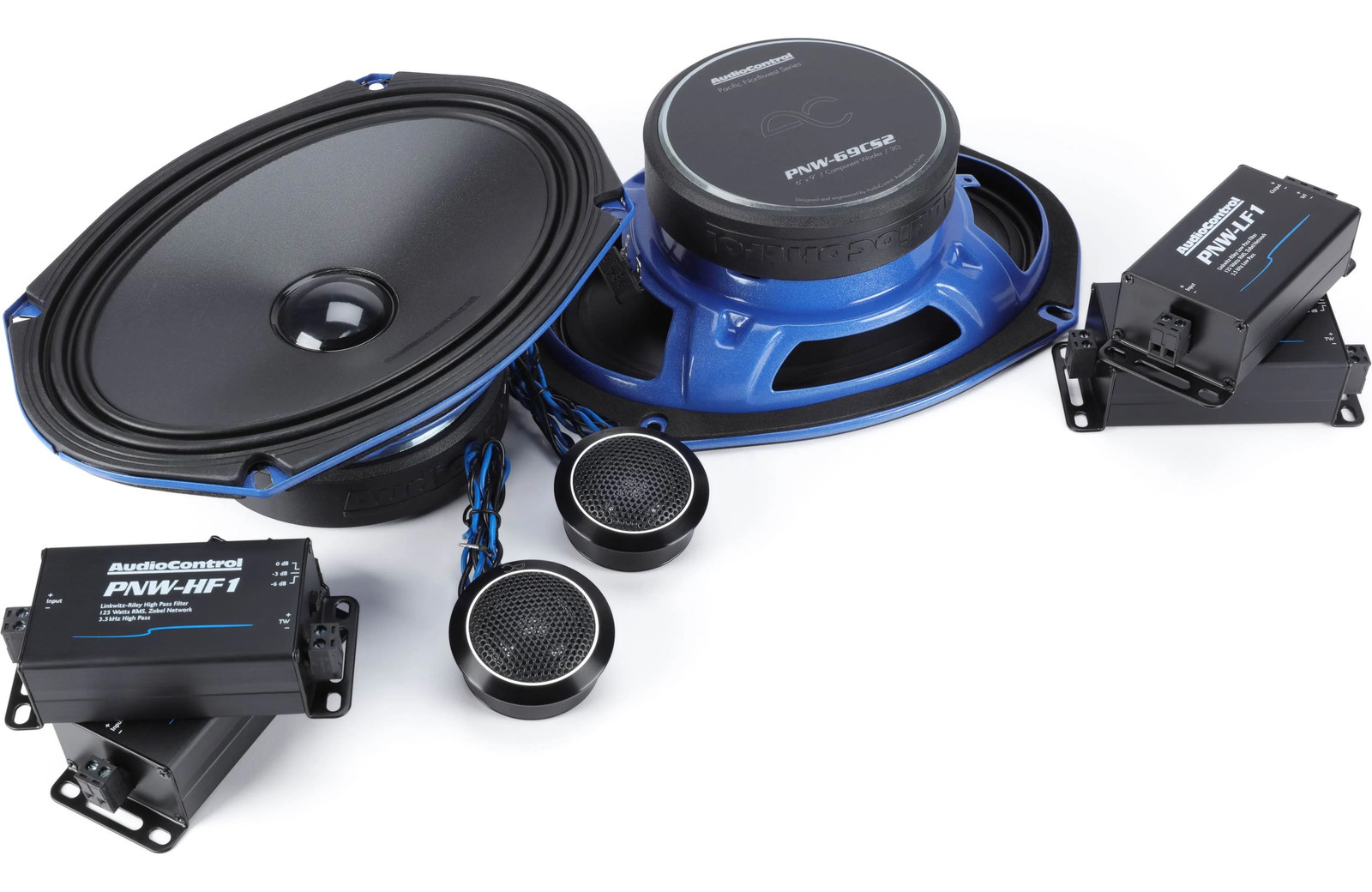

AudioControl PNW-69CS.2 6x9\" Component Speaker System Silk Dome Tweeters 3 Ohm For Sale

AudioControl is all about experience – in fact, over 45 years of experience engineering high-fidelity audio components. That expertise guarantees you an audio adventure that may change what you thought was possible in your car. The PNW-69CS2 6\" x 9\" component system will bring you authentic reproduction with distinct placement of instruments across the soundstage, for next-level audio in your car.

AudioControl built this system around second-order Linkwitz-Riley crossover networks, which provide some awesome benefits:

• A natural transition between the frequencies directed to the woofer and the tweeter, thanks to the network\'s 12dB per octave slope. This minimal overlap means better sound quality and excellent power handling.
• Virtual elimination of unnatural peaks and valleys in the speaker\'s output, so you\'ll hear exactly what was recorded in the studio.
• A linear phase response, for outstanding imaging and soundstage.

A beefy magnet and motor kick out the lows.

The woofer and tweeter also reflect the care that went into the crossover network. The woofer\'s rigid poly mica-coated cone moves freely and precisely, thanks to a double-roll surround. An edge-enhanced steel frame houses the cone and provides superior structural strength. The silk dome tweeter comes with hardware for installation, so you can place it in the best spot for optimal sound. Pair these component speakers with an amplifier kicking out 100 watts per channel, and let them show you what they can do.

Experience the perfect combination of precision, power, and clarity with the AudioControl PNW-69CS2 Component Speakers. Engineered by a company with over 45 years of audio innovation, these speakers are designed to deliver premium sound quality and outstanding durability for true audiophiles and automotive enthusiasts.

Born in the Pacific Northwest, the PNW Series embodies AudioControl’s commitment to accuracy and craftsmanship. The PNW-69CS2 features an edge-enhanced steel frame for maximum rigidity, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround that ensures precise cone movement and distortion-free performance. The rigid poly mica-coated cone produces natural and detailed sound across all frequencies, while the rear-dampened hybrid silk dome tweeters deliver crisp highs and smooth transitions.

The 2nd order Linkwitz-Riley crossover network ensures a flawless balance between tweeter and midrange frequencies for exceptional imaging and tonal accuracy. Pair your PNW speakers with AudioControl’s Spike or Space subwoofers and amplifiers for the ultimate in-vehicle sound system.

• Edge-enhanced steel frame for superior structural strength

• Black anodized voice coil former for heat dissipation and longevity

• Linear double-roll surround for accurate cone movement

• Rigid poly mica-coated cone for optimized sound reproduction

• Rear-dampened hybrid silk dome tweeter for extended high-frequency response

• Complex FEA-designed high-efficiency motor for powerful sound output

• 2nd order Linkwitz-Riley crossover for balanced frequency distribution

• Includes premium mounting hardware

• Crossover Type: 2nd Order Linkwitz-Riley

• Power Handling: 100W RMS / 125W Max

• Impedance: 3 Ohms

• DC Resistance (Re): 2.6 Ohms

• Filter Type: High Pass / Low Pass

• Frequency Response: 50 Hz – 20 kHz

• Crossover Frequency: 3.5 kHz HP / LP

• Slope (Octave): –12 dB

• Tweeter Voice Coil Diameter: 25 mm

• Midrange Voice Coil Diameter: 35 mm

• Overall Dimensions: 6 x 9 in / 167 x 235 mm

• Overall Diameter (w/o Bracket): 7.2 x 10.43 in / 183 x 265 mm

• Cutout Diameter: 5.74 x 8.34 in / 146 x 212 mm

• Mounting Depth: 2.95 in / 75 mm

• Mounting Height (w/o Grille): 0.24 in / 6.3 mm

• Mounting Height (w/ Grille): 0.98 in / 25 mm

• Motor Diameter (w/ Cover): 4.6 in / 117 mm

• Overall Diameter: 2.13 in / 54 mm

• Cutout Diameter: 1.85 in / 47 mm

• Mounting Depth: 0.63 in / 16 mm

• (2) 6x9\" Component Speakers

• (2) 1\" Tweeters

• (2) HP/LP Crossovers

• User Manual

• Warranty Information

AudioControl PNW Series – High-fidelity sound born in the Pacific Northwest. Engineered for accuracy. Built for performance.
