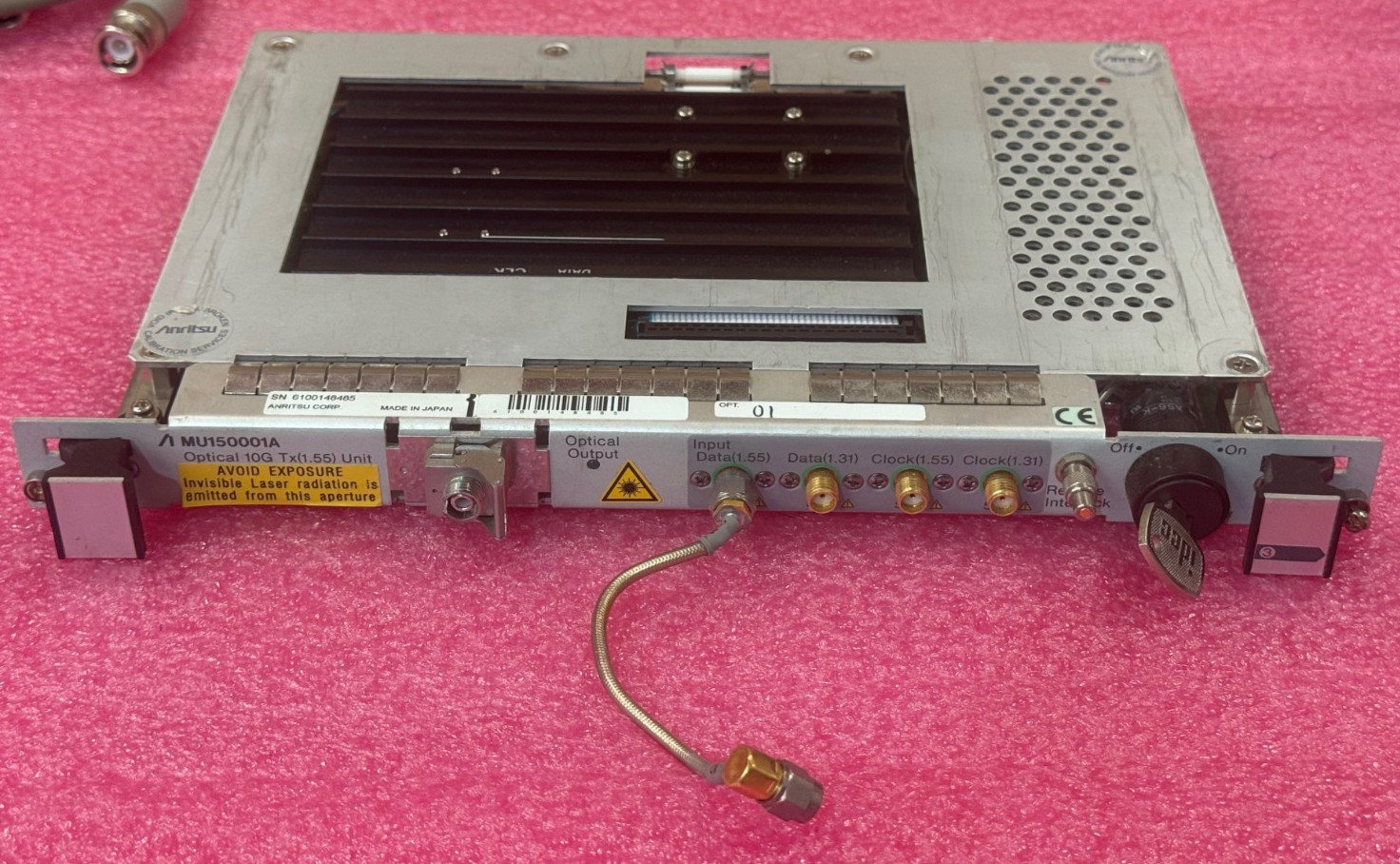

Direct Answer: The Anritsu MU150001A Optical 10G Tx Unit (1.55 µm) is a transmitter plug‑in for the MP1570A SONET/SDH/PDH/ATM Analyzer. It supports 10 Gb/s (OC‑192/STM‑64) and 2.5 Gb/s (OC‑48/STM‑16) transmission, with a 1550 nm optical output at –4 dBm ±3 dB, FC‑PC connector, and SMA electrical inputs.
OEM Technical SpecificationsSpecificationDetailsBit Rates9.953 Gbit/s (STM‑64/OC‑192), 2.488 Gbit/s (STM‑16/OC‑48)Optical OutputWavelength: 1550 nm band (Option 01)Output level: –4 dBm ±3 dBTransmission Distance~2 km (MU150001A)MU150001B variant supports ~40 kmOptical SafetyIEC825‑1 Class 3A, 21CFR1040.10 Class IIIbConnectorFC‑PC (SMF, single‑mode fiber)Electrical Input (NRZ)Data High: 0 to –0.2 VData Low: –0.85 to –1.4 VClock High: 0 to –0.2 VClock Low: –0.85 to –1.3 VElectrical ConnectorSMA, 50 ΩIntegrationUsed with MU150000A electrical interface unit in MP1570A mainframeContextual Notes
MU150001A vs MU150001B: The A version is a short‑haul transmitter (~2 km), while the B version is long‑haul (~40 km). Both operate at 1550 nm with –4 dBm output.
System Role: Provides optical transmission capability for SONET/SDH/ATM testing at 10G and 2.5G.
Complementary Modules: Typically paired with MU150002A optical Rx units or MU150000A electrical interface for complete Tx/Rx testing.
Summary
The Anritsu MU150001A 1.55 µm Optical Tx Unit is a 10G/2.5G optical transmitter plug‑in for the MP1570A analyzer. It delivers –4 dBm optical output at 1550 nm, supports OC‑192/STM‑64 and OC‑48/STM‑16 rates, and integrates via SMA electrical inputs. It is designed for short‑haul optical transmission (~2 km), with the MU150001B variant extending reach to ~40 km.
