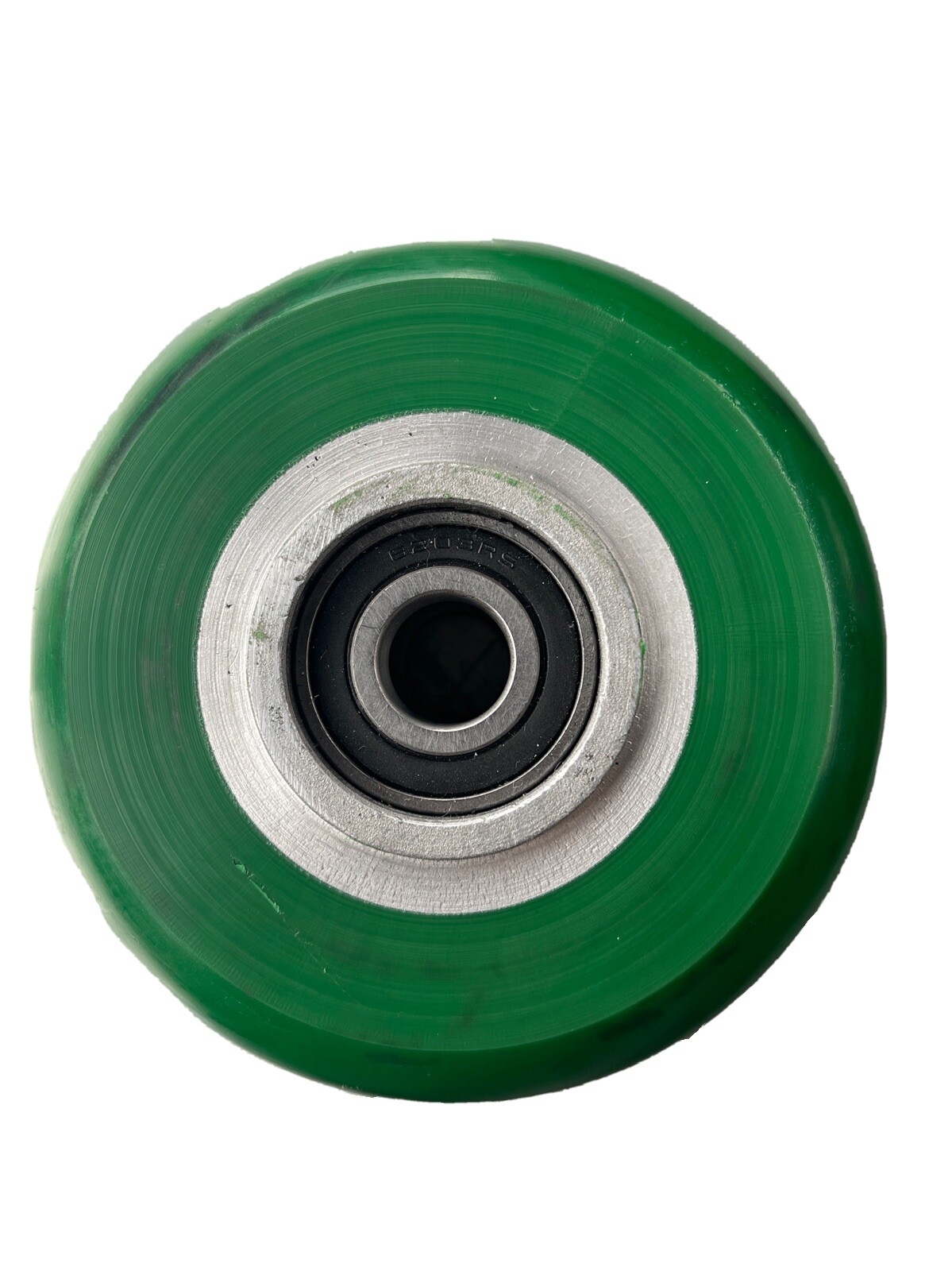

PM0522808 is a 5-inch round tread mold-on polyurethane wheel on an aluminum core.
Albion PM wheels are round treaded polyurethane wheels, open cast onto clean, close-tolerance aluminum cores. The polyurethane elastomer tread is chemically and mechanically locked to the core, increasing wheel operating life – and greatly reducing the risk of tread separation. This high-capacity polyurethane protects floors, is non-marking, and provides a more quiet operation compared to standard metal wheels.
These wheels are brand new never mounted. Please refer to photos for cad dimensions. Wheels are 3lb a piece shipping will be adjusted according to units ordered.
Standard Features
Wheel face: Round tread
Finish: Green tread on aluminum core
Temperature Range: -40°F to +180°F
Hardness: 95 Shore A (green)
Wheels are complete with top hat and spacers
Wheel Diameter 5
Bearing Type Precision Ball
Capacity 1000
Tread Width 2
Bearing ID 1/2 Bore ID 1-9/16 Hub Length 2-7/16
Hardness 95 Shore A
Temperature Maximum-40°F to +180°F
Dimensions as follows. With top hats and spacers.
Height 5” width of tire 2”
width of hub with spacers 2.4375”
Wheels have superior oil and grease resistance, floor protection and quiet operation. Easy rolling characteristics and are rated for 1000 lbs per wheel. Great for industrial and large project use.
