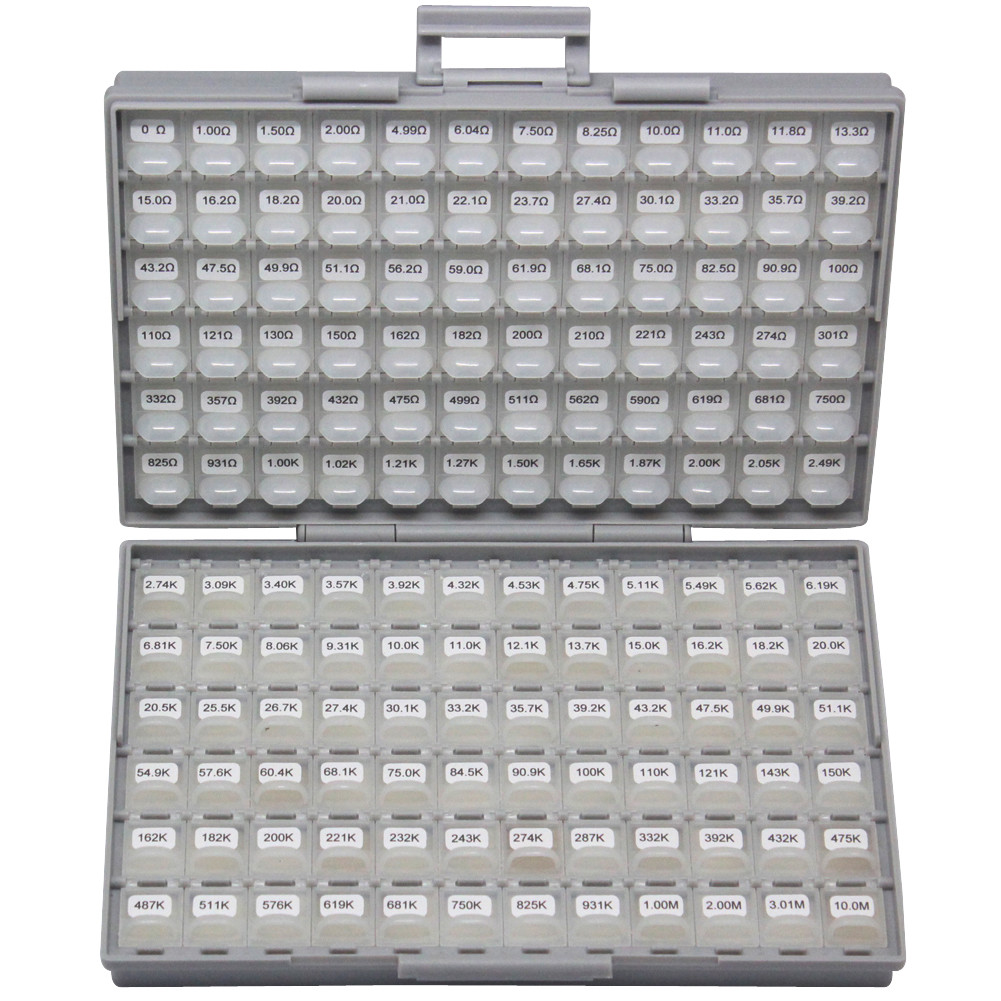

SMD 0402 RoHS E96 Series 1% 144 vales x 100pcs Resistor Kit filled BOX-ALL
Total 14400pcs 1% resistors
144 values 0402 size RoSH compliance 1% 100PC/Value Resistor Kit with our patented BOX-ALL Enclosure.Containing all the values in the EIA Standard series from 0ohm to 10M;Those resistors are 1% ±100ppm thick film surface mount resistors separately stored in patented BOX-ALL
SMD BOX-ALL Enclosure has 144 compartments. Outside size: 22.4cm (8.7") x 14.5 cm (5.7") x 3.8 cm (1.5")
Each compartment measures 0.72" (h) x 0.657" (W) x 0.4"(d) or 18.3mm (h) x 16.7mm (W) x 10.2mm (d),
can hold up to 300pcs of 1206 size resistors/capacitors
Containing 144 values in the EIA Standard E-96 series from 0ohm to 10M
Each component value is printed on each lid.
Those resistor are 1% ±100ppm/°C thick film surface mount resistors separately stored in BOX-ALL enclosures.
Easy and quick access for all 144 values inside the box
Light, Portable, around 500g with all compartments filled
Easy to transport the enclosure to other places.
put it on a shelf to keep the bench top clean.
Certified by RoHS regulations
Easy and quick access to each value, save time, space, save 80% compared with retail price for all these resistors;
- Easy to transport the enclosure to other places.
- Put it on a shelf to keep the bench top clean.
0402 size, 144 values, 1% resistor kit value list
0 ω
1.00ω
1.50ω
2.00ω
4.99ω
6.04ω
7.50ω
8.25ω
10.0ω
11.0ω
11.8ω
13.3ω
15.0ω
16.2ω
18.2ω
20.0ω
21.0ω
22.1ω
23.7ω
27.4ω
30.1ω
33.2ω
35.7ω
39.2ω
43.2ω
47.5ω
49.9ω
51.1ω
56.2ω
59.0ω
61.9ω
68.1ω
75.0ω
82.5ω
90.9ω
100ω
110ω
121ω
130ω
150ω
162ω
182ω
200ω
210ω
221ω
243ω
274ω
301ω
332ω
357ω
392ω
432ω
475ω
499ω
511ω
562ω
590ω
619ω
681ω
750ω
825ω
931ω
1.00K
1.02K
1.21K
1.27K
1.50K
1.65K
1.87K
2.00K
2.05K
2.49K
2.74K
3.09K
3.40K
3.57K
3.92K
4.32K
4.53K
4.75K
5.11K
5.49K
5.62K
6.19K
6.81K
7.50K
8.06K
9.31K
10.0K
11.0K
12.1K
13.7K
15.0K
16.2K
18.2K
20.0K
20.5K
25.5K
26.7K
27.4K
30.1K
33.2K
35.7K
39.2K
43.2K
47.5K
49.9K
51.1K
54.9K
57.6K
60.4K
68.1K
75.0K
84.5K
90.9K
100K
110K
121K
143K
150K
162K
182K
200K
221K
232K
243K
274K
287K
332K
392K
432K
475K
487K
511K
576K
619K
681K
750K
825K
931K
1.00M
2.00M
3.01M
10.0M
Thick Film Chip Resistors Chip Resistors02:0201(0603) 1/20W
04:0402(1005) 1/16W
06:0603(1608) 1/10W
10:0805(2012) 1/8W
12:1206(3216) 1/4W
13:1210(3226) 1/3W
20:2010(5025) 1/2W
25:2512(6432) 1 W
F- ± 1%
T-Paper Tape
E-Embossed Tape
B-Bulk Cassette+N: Lead-FreeSpecial
L : 06 – 2mm pitch paper Tape3 digits, e.g.,:
(E-24) 103 = 10k Ω
0 = 0 Ω4 digits, e.g., :
(E-96) 1540 = 154 Ω
43R2 = 43.2 Ω
SizePower Rating at 70℃Rating VoltageMax. Working VoltageMax. Over- Load VoltageT.C.R (PPM/℃)Resistance Range(Ω)B(±0.1%) E-96&E-24D(±0.5%) E-96&E-24F(±1%) E-96&E-24G(±2%) E-24J(±5%) -10KΩ10Ω -1MΩ10Ω -1MΩ10Ω ~200KΩ100Ω ~1MΩ100Ω Cross Border Trade powered by Channel Effect
