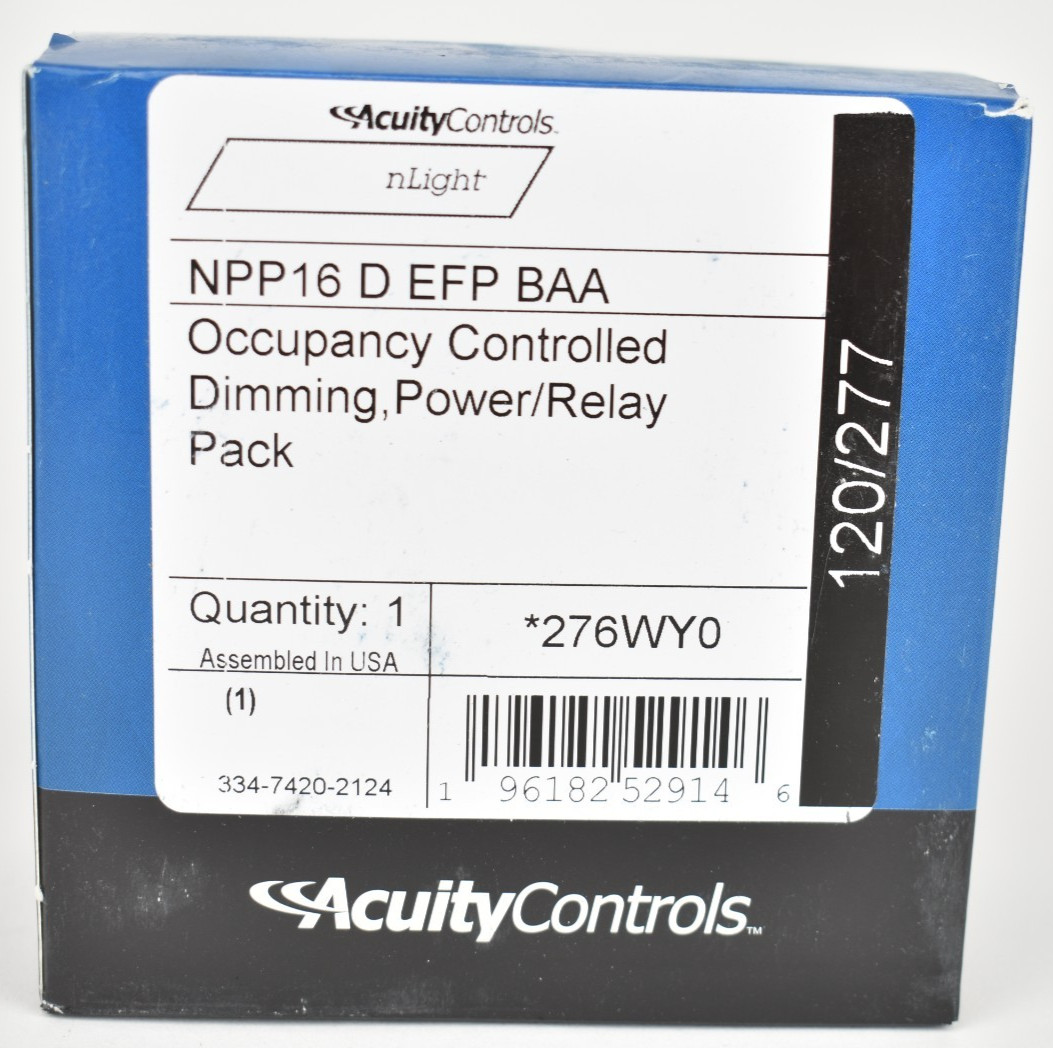

Acuity nLight NPP16 D EFP – Power / Relay Pack with 0-10V Dimming
The nLight NPP16 D EFP is a line-voltage power/relay pack for the Acuity nLight networked lighting-control system. It supplies low-voltage system (bus) power to connected nLight devices while switching a line-voltage lighting load through an internal latching relay, and it provides a 0-10VDC output for dimming control. The \"EFP\" designation denotes External Fault Protection. Devices connect over standard CAT-5 cabling via two RJ-45 ports.
Confirmed Specifications
- Line-voltage input: 120/277 VAC
- Switching: internal 16A latching relay
- Dimming output: 0-10VDC
- Control ports: two RJ-45 (CAT-5) nLight bus connectors
- Bus power: up to 40mA from each RJ-45 port (Class 2 low voltage)
- \"D\" = 0-10V dimming; \"EFP\" = External Fault Protection
Typical Applications
- Switching and 0-10V dimming of line-voltage lighting loads
- Supplying system/bus power to nLight sensors and wall pods
- Room-level networked lighting control and occupancy/daylighting response
Design Features
- Plug-and-play CAT-5 / RJ-45 nLight connectivity
- Integral relay plus 0-10V dimming in one enclosure
- External fault protection (EFP) for the low-voltage bus
