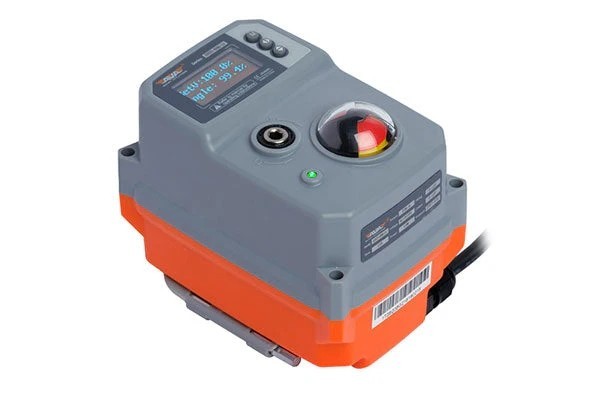

The AVA-S60.10-6PHE-17 is a highly compact, industrial smart electric valve actuator from the AVA Series 60 line. Designed for low-voltage systems, this microprocessor-driven model provides standard On/Off quarter-turn valve automation. 17mm output drive.
Summary:S60 Smart Series, Standard On/Off, 60 Nm maximum torque, 24V AC/DC low-voltage multi-voltage power supply, 17mm female output drive, Uses standard \"E\" type wiring, configured as a 3-wire SPDT circuit with switchable positive/live lines.
Key Specifications• Series: S60 Smart Series (features a built-in 1.3\" color OLED screen with local configuration push-buttons).• Operation Type: Standard On/Off (Open/Close). It is designed to stay put on loss of external main power.• Torque Output: 60 Nm (Newton-meters) maximum torque (ideally suited for mid-sized quarter-turn ball or butterfly valves).• Voltage: 24V AC/DC low-voltage multi-voltage power supply (represented by the \"6\" code).• Drive Size: 17mm female output drive• Wiring Setup: Uses standard \"E\" type wiring, configured as a 3-wire SPDT circuit with switchable positive/live lines.Core Features• Smart UI Control System: The external OLED display lets operators calibrate precise working angles, adjust operational motor speeds, alter dead-band settings, and view real-time diagnostic error logs directly on the unit.• Digital Position Encoder: Employs precise magnetic digital position sensing rather than mechanical cam micro-switches, protecting the unit from positional drift and physical wear.• Weatherproof Enclosure: Cased in a rugged, IP67-rated ABS plastic housing with a pre-wired 0.8-meter electrical multicore connection cable.• Environmental Protection: Features an integrated internal anti-condensation heater (\"H\") to prevent moisture buildup in humid or low-temperature environments.• Emergency Operation: Built with a mechanical manual override that can be adjusted using a standard hex wrench key if power is severed
Important Note: Actuator only; does not include valve or mounting hardware. Photos are representative -- appearance may vary.
The AVA range of Smart modulating industrial weatherproof reversible electric actuators offer surprisingly high torque capability from a very compact housing, making them ideal in most applications, but particularly where space is limited.
Employing local controls via a bright external OLED screen and push buttons, the AVA modulating, fail safe actuator offers many innovative solutions to create a very user-friendly actuator to mount, commission, connect and operate.
Valvebroker overstock from Basiks Valves subsidiary of Plast-O-Matic
Shipping Policy: All items are shipped exclusively through shipping -- No CODs, no buyer-provided shipping labels or third-party accounts. Please select preferred shipping provider and fee at check out.
