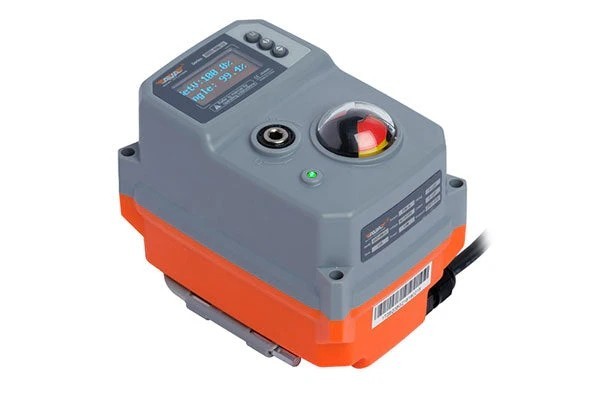

The AVA-S60.25-6PHP-17 is an industrial smart compact modulating electric valve actuator from the AVA Series 60 line. Designed for low-voltage systems, this precise, microprocessor-driven model provides proportional flow control and will stay put if external main power is lost.
Summary:S60 Smart Series, Standard Modulating, 60 Nm maximum breaking torque, 24V AC/DC multi-voltage power supply, Proportional modulation configured for a 4-20mA current loop signal, 17mm female octagon/star drive, ISO 5211 direct mounting pad (typically F05/F07 flange)Key Specifications• Series: S60 Smart Series (features an external, bright 1.3\" color OLED screen and push-button controls for local menu configuration).• Operation Type: Standard Modulating. It handles precise proportional flow control via standard analog signals but does not include an internal fail-safe super-capacitor system.• Torque Output: 60 Nm (Newton-meters) maximum breaking torque (typically used to automate mid-sized 3\" to 4\" quarter-turn ball or butterfly valves).• Voltage: 24V AC/DC multi-voltage power supply (represented by the \"6\" code).• Control Input/Output: Proportional modulation configured for a 4-20mA current loop signal (handles command input and active position response, indicated by the \"P\" control type).• Drive Size: 17mm female octagon/star drive.• Mounting Pattern: ISO 5211 direct mounting pad (typically F05/F07 flange).Core Features• OLED User Interface: The on-screen display eliminates guesswork, allowing operators to change operational motor speeds, alter dead-band sensitivity, toggle between remote or manual control, and review digital fault logs directly at the unit.• Digital Position Encoder: Employs precise magnetic non-contact position sensing rather than mechanical limit micro-switches, protecting the unit against positional drift and physical wear over time.• Weatherproof Enclosure: Features an IP67-rated rugged ABS plastic housing with a pre-installed 0.8-meter electrical multicore cable.• Environmental Protection: Includes an integrated internal anti-condensation heater (\"H\") to regulate temperature and eliminate moisture buildup inside the casing.• Emergency Operation: Standard emergency mechanical manual override operated using the included hex wrench key.Important Note: Actuator only; does not include valve or mounting hardware. Photos are representative -- appearance may vary.
The AVA range of Smart modulating industrial weatherproof reversible electric actuators offer surprisingly high torque capability from a very compact housing, making them ideal in most applications, but particularly where space is limited.
Employing local controls via a bright external OLED screen and push buttons, the AVA modulating, fail safe actuator offers many innovative solutions to create a very user-friendly actuator to mount, commission, connect and operate.
Valvebroker overstock from Basiks Valves subsidiary of Plast-O-Matic
