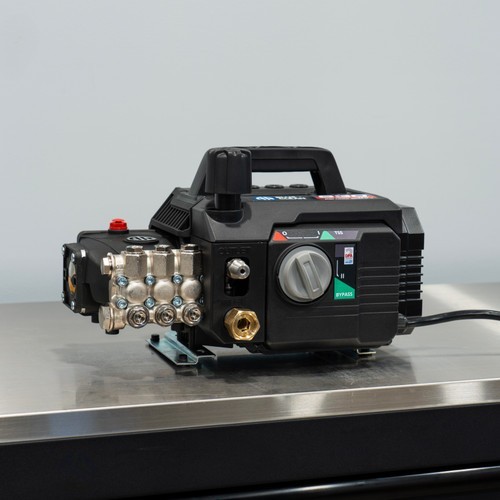

AR630 Gen 2 HOT Water Pressure Washer | AR Blue Clean 630 | 2.3 GPM
The highly anticipated second generation AR630 pressure washer is finally here and available first at The Clean Garage!
The HOT WATER model has upgraded water seals rated up to 180 degrees. Other than the water seals the unit is the same as the standard AR630. They do not create Hot Water!
Availibility info:
If the product page shows ADD TO CART we have inventory in stock ready to ship. Once sold out it will switch to a PRE-ORDER with an estimated ship date listed.
You can view all current packages and bare pressure washer units here: AR630 Hot Water Gen 2
AR630 Gen 2 Pressure Washer Product Info and Features
Please note this unit requires a dedicated 20 AMP outlet. The factory rating is 20amp and 120V.We purchase this as a bare unit so it does not include the typical entry level hose and wand. Just the pressure washer unit as pictured.We include a brass Garden Hose adapter for the inlet to attach any standard garden hose. You can also add on our MTM Garden Hose Quick Connects if you want your inlet hose to Quick Connect. You will need to install this with a 1/2\" allen wrench.AR has updated the outlet size on their new units to 3/8\" NPT male, please see below for quick connect info.Factory rated at 2.3 GPM and 1600 PSI. As with any pressure washer the PSI rating is the max rating for the pump, the real world output will always be less and we have included detailed testing info for you below on 3 rinse nozzle options.Working PSI rated at 1350 by AR. Again this is a max number measured at the pump. In real world testing we achieved 1200 PSI with a 4.0 Orifice nozzle. Our complete testing details are listed below, if you are measuing PSI at the end of your hose this number may be slightly lower depending on your hose length and accurary of your gauge.Max Water Temp: 180 degrees(for this hot water unit with upgraded seals)New 3 position switch: Off / TSS (total stop) / Bypass (total stop off)TSS module is now hiddenRail kit with anti-vibration feetAnnovi Reverberi RCA Pump andNozzle Holders on the top rear of the unitEasy Carry HandleBreathable Oil Dipstick and Oil Sight Glass on the side12 Gauge 35\' Power CordUnit weight: 47 pounds (this is not the shipping weight)
Looking for a complete detailing package?
Once we have consistent stock built up we will offer out detailing packages. In the meantime we have testing info for aftermarket accessories listed below for you and our team is always happy to help you piece your own package together at salesatclean-garage.com
Piecing your own detailing package together? Here is what The Clean Garage Suggests:
Rinse Nozzle Testing Results:4.0 Orifice - 1208 PSI - 2.20 GPM -17.45 AMP draw4.5 Orifice - 1062 PSI - 2.31 GPM - 16.10 AMP draw5.0 Orifice - 902 PSI - 2.37 GPM - 15.10 AMP drawFoam Cannon:1.25mm orifice is the smallest you should use and is what is included with most foam cannons1.5mm orifice is the optimal choice for GPM and lowering AMP draw. This would need to purchased separately and installed as mostNever use an orifice smaller than 1.25 with this unit, you will risk damaging the pumpHose:For an upgraded hose we suggest one of our 50\' Kobrajet Hoses available in Black, Gray and BlueYou CAN run a longer hose but may lose some pressure and it will work the pump harderWe suggest ordering one of our hoses with Quick Connect Couplers on both sides combined with the pump outlet adapter with plug listed below.If you are going to be using a hose reel please look at our product page for that reel to see how we suggest setting it up or ideally purchase one of our reel/hose packages that are already setup properly.
Quick Connects and Fitting Sizes:
INLET: AR Includes a brass adapter for 3/4\" GHT. If you want to convert your inlet to quick connects you will need a Garden Hose QC Plug 24.5002 and Garden Hose QC Coupler 24.0631 . If you want both ends of your inlet hose to quick connect you will need 2 of each.OUTLET: The outlet is 3/8\" NPT Male. To adapt this to a 3/8\" Plug you will need part number 24.0081 This is what we suggest and will work with aftermarket hoses with a 3/8\" couplerIf you already have an aftermarket hose with a 3/8\" plug you will want this part 24.0063 to covert the outlet to a coupler.HOSES AND GUNS:For the hose we suggest following our guidance above, purchasing one of our Kobrajet hoses with quick connect couplers.You can then purchase any of our short spray guns with a 3/8\" plug installed on the inlet to connect to your hoses coupler.Remember this unit is shipped without a factory hose or spray gun so you will need to purchase those separately.For a great starter kit with a hose, spray gun, foam cannon and quick connects check out our:MTM 43.5023 Kit and add nozzles.
Info For Mobile Detailer Setups:
AR Tri-Plex Pumps must be gravity fed when being fed from a water tankThe tank should be AT LEAST 12\" above the pumpThe tank should be as close to the pump as possibleThe inlet hose diameter should be doubled in size when gravity feeding (1.5\")Generator Requirements:To properly power a commercial pressure washer long term we suggest using the following formula when determining your generator wattage:AMPS X VOLTS X 3 = At least 7200 running watts
Warranty Information and Technical Support Contact
AR600 Series Pressure Washers are warranted to the original purchaser for 1 yearThe pressure washer is warranted to be free from defects in material and workmanship during the specified warranty periodPlease email infoatarblueclean.com or Call AR for warranty services or any technical questions regarding your AR Blue Clean pressure washer
It is important you understand before purchasing a pressure washer the warranty is facilitated by the the manufacturer, which is in this case is AR North America. Any technical issues, warranty returns or exchanges will be facilitated directly with the manufacturer. The Clean Garage will assist you in making contact with them and anything else within our power to make the process smooth for you should an issue arise. We suggest reviewing the manufacturers full warranty policy before purchase which can be found here:
AR North America Warranty
AR630TSS USER MANUALReturn Policy

Brand new items in the original packaging can be returned within 14 days of purchase for any reason. Because we offer the lowest allowable advertised price and shipping on our items a 15% restock fee will be charged on all returned items and the buyer will be responsible for the return shipping.

Fluids can only be returned in unopened condition. If the factory seal has been broken the item can not be returned.

All returned items will be inspected, used/installed items or items not in factory packaging will be declined. Fluids that the factory seal is opened on will be declined.

Store Policies

The Clean Garage does not manufacturer or warranty any of the items listed. All products are warrantied orby the manufacturer, if you should encounter any concerns or warranty issues with the products purchased please contact us by message and we will assist you in having the manufacturer address your concern.

We only remove items from inventory if they are discontinued. If there is a delay in the item you ordered we will contact your promptly with an updated time frame and offer to back order the item or issue a complete refund.We suggest you always contact us before purchase to verify fitment and current stock for the item you are interested in to avoid delays.

Items may be drop shipped direct from the manufacturer, this may cause additional shipping time depending on where you are located and where the nearest warehouse that has your items in stock is located. If you need your items by a certain time we suggest you always contact us before to verify current shipping location and time.

Items pictured may be a \"stock image\" meaning they may not be the exact size of the items listed. This can alter the appearance of the product you receive (for example the lip size of the wheel or package size of your Fluids) We do our best to post the most accurate image available from the manufacturer, if you have a question about the specific appearance of the item you are ordering please message or email us before ordering.

The items we sell should always be installed by a trained professional and should be verified with them before ordering. Always consult your vehicles owners manual for the proper fluid to use.

As you can tell by now the best practice is to contact us before if you order if you have any questions about fitment, availability, shipping times or anything else. Our goal is to make sure you are 100% satisfied with the complete order process and communication is the best way to do that. Thank you for considering making you purchase with us, we appreciate your business!
