AIRBFT Airsuspension Adjustable lowering link for Volvo XC60 XC90 2015-2024 For Sale

• AIRBFT air suspension lowering link, suitable for Volvo XC60 XC90air suspension
•

• AIRBFT air suspension lowering link, suitable for Volvo XC60 XC90. The air suspension is developed by AIRBFT for theVolvo XC60 XC90model equipped with the original adaptive air suspension system.
• A reversible solution specifically developed for vehicles equipped with original adaptive air suspension, designed to lower the body height of yourVolvo XC60 XC90model. This adjustable link rod can change the mechanical reference position of the original height sensor without requiring any modification to the software coding.
•

• Only applicable to air suspension systems, not to steel springs.
•

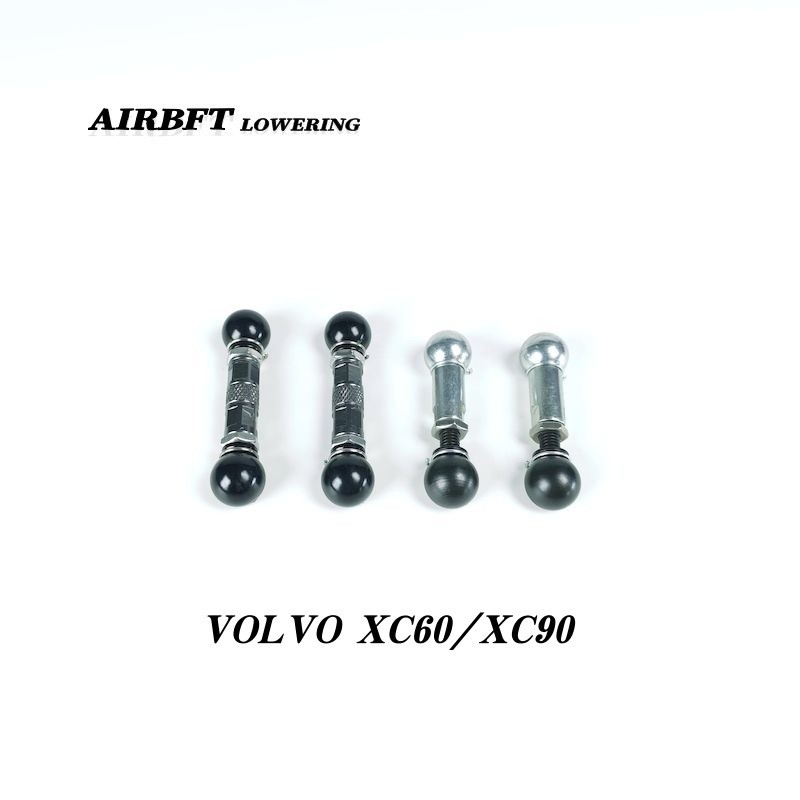

• The kit includes: 2 front height sensor links and 2 rear height sensor links.
• Easy to install: For most vehicles, the installation time is less than 1 hour.
• Reversibility: The original connecting rod can be reinstalled, or a new connecting rod can be adjusted to fit the original height of the vehicle.
• No need for complex modules: No need for expensive electronic modules.
• Adjustment: The adjustable length of the connecting rod allows you to set the vehicle height according to your personal preference.
• Lower: rear axle 0-50 mm.
• Connecting material: magnesium-aluminum alloy, resistant to deformation, high strength, one-year instructions:
• 1. Set the vehicle\'s air suspension to jack mode (if there is no such mode, no need to set)
• 2. Remove the original vehicle height sensor link rod.
• 3. Adjust the AlRBFT connecting rod to a suitable length based on the original connecting rod length
• 4. The measurement of length should commence from the center point of the ball heads at both ends of the suspender
• 5. Install rubber protective covers at the spherical joints
• 6. Install the adjustable link rod of AlRBFT air suspension and tighten the nut
• 7. After installation, land on the flat ground and exit the jack mode
• 8. Select high, medium, and low modes, and perform a lifting operation for each mode
• 9. Conduct a road test after the height adjustment is appropriate
• 10. Do not set it too low to avoid causing wear to the suspension, fender, and tires
• 11. After adjustment, finally perform four-wheel alignment tuning on the vehicle

Adjustment method for reducing the installation length of the air suspension\'s lower link:1. Adjust the length of the pull rod. Rotate the pull rod to adjust its length when it is at its shortest, to avoid having some screws being long and others being short.2. After adjusting the length of the pull rod, install it with the forward thread on top and the reverse thread on the bottom. Do not tighten the ball head retaining nut.3. After installation, make minor adjustments to the length. Rotate the connecting rod clockwise to lengthen it, and counterclockwise to shorten it.4. After adjustment, tighten the nut clockwise. Use a 9-gauge wrench to adjust the rod and a 10-gauge wrench to tighten the nut.5. After the nut is tightened, the vehicle is delivered to the ground.
