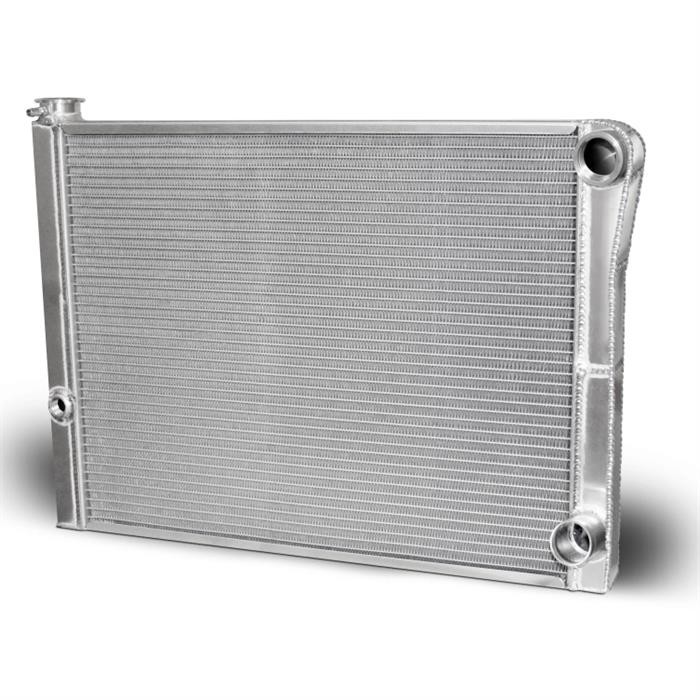

Radiator features an increased number of tubes and fins in the same height package, Has an optimum fin per inch ratio that promotes maximum cooling, Includes a standard water pressure bung for easy plumbing, Comes with a -20 AN Female right hand inlet and a 1-3/4” right hand outlet, Installation is simple with no major modifications needed for mounting AFCO 80185NDP-U Dirt Late Model Lightweight Double Pass Radiator Sku # 10680185NDPU Mfr. Part # 80185NDP-U Condition New Brand AFCO Sold Each Details
AFCO Racing is proud to announce the new series of 19” x 27-1/2” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Late Model, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.
- Features an increased number of tubes and fins in the same height package
- Optimum fin per inch ratio promotes maximum cooling
- Standard water pressure bung for easy plumbing
- -20 AN Female right hand inlet, 1-3/4” right hand outlet
- 20” overall height
- 24” core width
- 18-3/4” tank height
- 27-1/2 tank width
- 2” tank thickness
- 13 lbs. dry weight
Specs Sold in Quantity Each MFG. Part # 80185NDP-U Radiator Style Double Pass Radiator Flow Direction Crossflow Material Type Aluminum Inlet Location Upper passenger side Outlet Location Lower passenger side Row Quantity 1 Tube Size 1.5" Overall Width Range 27.00" to 27.99" Overall Width 27.5" Overall Height Range 20.00" to 20.99" Overall Height 20" Overall Thickness 2" Core Width Range 24.00" to 24.99" Core Width 24" Core Height Range 19.00" to 19.99" Core Height 19" Core Thickness 1.5" Finish Satin Cooling Fan Not Included Transmission Cooler No Shroud Included No Outlet Size 1.75 Inlet Fitting -20 AN Female Fan Included No Reviews 2nd Purchase Rated by RACEng on June 04, 2021
Summary: Product was great. A wayward spark damaged it beyond repair before we coupe even use so we had to buy a replacement.
Yes, I recommend this product.
