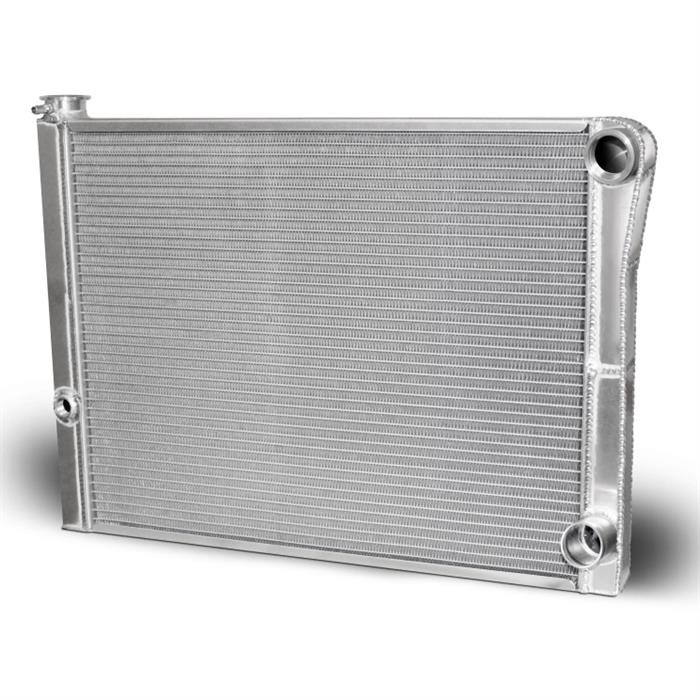

It features an increased number of tubes and fins in the same height package, The optimum fin per inch ratio promotes maximum cooling, Comes with a standard water pressure bung for easy plumbing, Has a -20 AN Female right hand inlet, 1-3/4” right hand outlet, Measures 20” on overall height and the tank is only 2\" in depth AFCO 80184NDP-U Dirt Modified Lightweight Double Pass Radiator Sku # 10680184NDPU Mfr. Part # 80184NDP-U Condition New Brand AFCO Sold Each Details
AFCO Racing is proud to announce the new series of 19” x 25-7/8” lightweight double pass radiators. This is the easiest and most cost effective way to shave as much as 10 pounds off the front of your dirt Modified, allowing you to concentrate ballast and improve handling. The radiator features a new 1.5” thick core for improved air-flow. These race proven lightweight radiators fit like a standard radiator and installation is simple with no major modifications needed for mounting. All AFCO Radiators are 100% TIG-welded with no epoxy used and are 100% pressure tested.
- Features an increased number of tubes and fins in the same height package
- Optimum fin per inch ratio promotes maximum cooling
- Standard water pressure bung for easy plumbing
- -20 AN Female right hand inlet, 1-3/4” right hand outlet
- 20” overall height
- 18-3/4” tank height
- 25-7/8” tank width
- 22-3/8” core width
- 2” tank thickness
- 1/2\" NPT water pressure bung in left tank
- 13 lbs. dry weight
Specs Sold in Quantity Each MFG. Part # 80184NDP-U Radiator Style Double Pass Radiator Flow Direction Crossflow Material Type Aluminum Inlet Location Upper passenger side Outlet Location Lower passenger side Row Quantity 1 Tube Size 1.5" Overall Width Range 25.00" to 25.99" Overall Width 25.88" Overall Height Range 20.00" to 20.99" Overall Height 20" Overall Thickness 2" Core Width Range 22.00" to 22.99" Core Width 22.38" Core Height Range 18.00" to 18.99" Core Height 18.75" Core Thickness 1.5" Finish Satin Cooling Fan Not Included Transmission Cooler No Shroud Included No Outlet Size 1.75 Inlet Fitting -20 AN Female Fan Included No Radiator Cap Included No Reviews Great radiator Rated by Dan on December 25, 2024
Summary: Cools very well and light in weight
Yes, I recommend this product.
