Brand new, never opened.

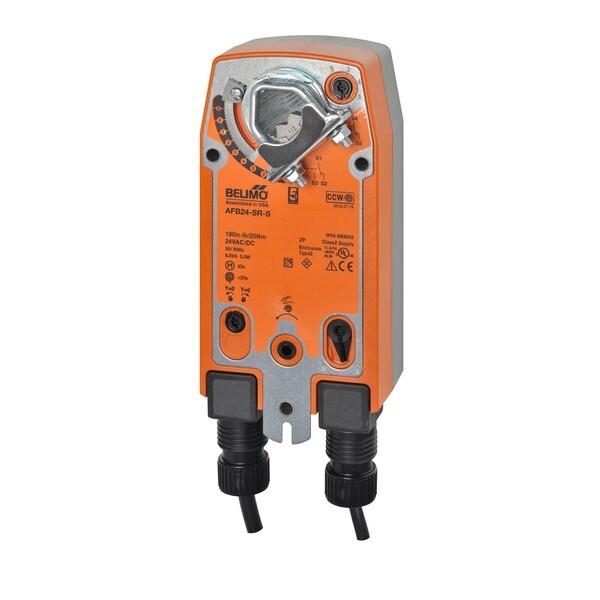

AFB24-SR-S
- Damper Actuator, 180in-lb [20Nm], Spring return, AC/DC24V, Modulating, 2xSPDT, 2...10V
Enclosure Rating
NEMA 2, IP54
Actuator Series
AFB(X)
Agency Listings
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Ambient Temperature Range
-22 to 122 °F (-30 to 50 °C)
Angle of Rotation
95°
Application Type
Air
Auxiliary Switch
2 SPDT
Electrical Connection
(2) 3ft 1m, 18 GA appliance cables with 1/2 in conduit connectors
response Output U
2 to 10 VDC, 0.5 mA max
Housing Material
Zinc Coated Metal and Plastic Casing
Humidity
max. 95% RH non-condensing
Input Impedance
100 k Ω for 2 to 10 VDC (0.1 mA), 500 Ω for 4 to 20 mA
Manual Override
5mm Hex Crank (3/16 in Allen), Supplied
Position Indication
visual indicator, 0° to 95° (0° is full spring return position)
Power Consumption Holding
3 W
Power Consumption Running
5.5 W
Power Supply
24 VAC, 24 VDC
Power Supply Type
24V
Quality Standard
ISO 9001
Running Time
95 seconds
Servicing
maintenance free
Shaft Diameter
1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert
Storage Temperature Range
-40 to 176 °F (-40 to 80 °C)
Torque
180 in-lb
Transformer Sizing
8.5 VA (class 2 power source)
Unit of Measure
PC
Supply Va
8.5 VA
Control Signal
Analog
Supply Voltage (Nominal)
24 VAC
