1200Mbps Dual‑Band · IP67 Waterproof · PoE · 4 Working Modes

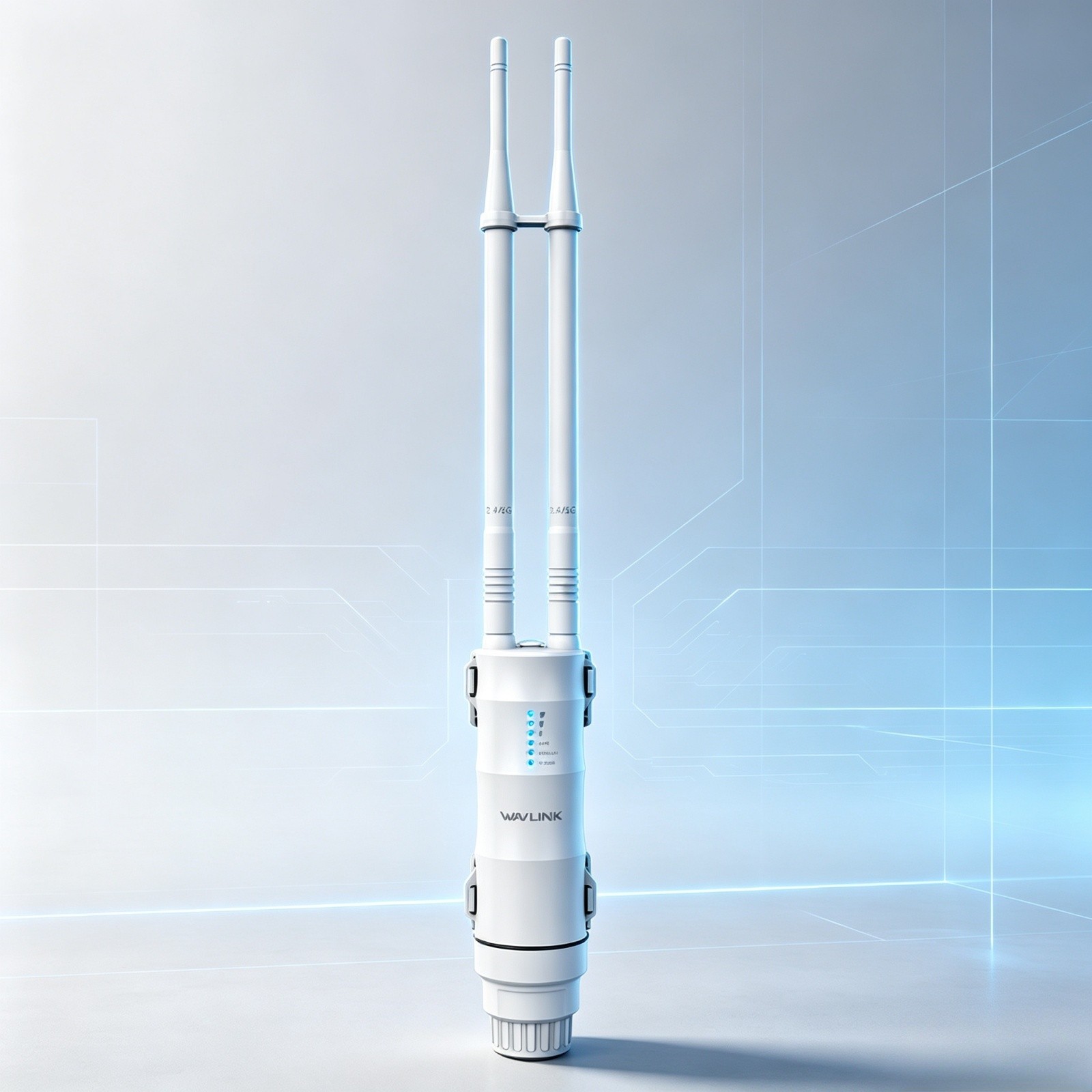

Weatherproof, long‑range, versatile — the WAVLINK outdoor AP delivers reliable Wi‑Fi in any outdoor environment. AC1200 Dual‑Band Speed867Mbps on 5GHz + 300Mbps on 2.4GHz, ideal for HD streaming, gaming, and multiple devices.IP67 Weatherproof EnclosureDustproof and waterproof, withstands extreme temperatures -10°C~50°C, rain, snow, and humidity.PoE & 2×7dBi AntennasActive/Passive PoE for flexible installation; high‑gain antennas extend range up to 200m outdoors.4 Versatile ModesAP, Router, Repeater, AP+Repeater — adapt to any network scenario, wired or wireless.The WAVLINK Outdoor AP AdvantageIP67 waterproof, 200m range, dual‑band AC1200, and 4 flexible modes — the outdoor Wi‑Fi solution that just works. Deploy it and forget it.◆ Weatherproof · Long‑range · Reliable · PoE ◆Product OverviewAC1200 Dual‑Band Wireless Access Point Outdoor
With Wi‑Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth‑heavy activities. Whether you\'re in the yard, by the pool, or in a parking lot, relish dependable Wi‑Fi 5 connectivity wherever you are.
Power Over Ethernet
Integrated Power over Ethernet PoE enables power and network data connections to be consolidated into a single RJ‑45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.
IP67 Rated Weatherproof Case
The IP67‑rated weatherproof and heat‑resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature -10°C to 50°C or -14°F to 122°F, and has 15KV ESD and 6KV lightning protection.
Multiple Working Modes
It supports four working modes. The repeater mode extends the Wi‑Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.
Outdoor Access Point
Providing ultra‑fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band, the outdoor Wi‑Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. Coverage may vary based on the actual environment.
Default Parameters
5G SSID: WAVLINK‑AC XXXX
2.4G SSID: WAVLINK‑N XXXX
Default IP: 192.168.10.1
Default Password: admin
How to Install Antennas and Ethernet Cable
1. Pass the RJ45 cable through the spiral cover.
2. Pass the RJ45 cable through the rubber seal.
3. Pass the RJ45 cable through the holder.
4. Connect the RJ45 cable to the RJ45 port.
5. Spin 2.4G/5G antenna into the 2.4G/5G external RP‑SMA connector.
6. Tighten to secure the holder.
7. Insert the rubber seal into the holder.
8. Secure the spiral cover by screwing it on.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Installation Steps for the Device
1. Fasten the main body holder.
2. Plug the device into the holder.
3. Connect one end of an Ethernet cable to the PoE port of the PoE converter.
4. Connect one end of another Ethernet cable to the LAN DATA IN port of the PoE converter, and connect the other end to a LAN port of your router.
5. Plug the Power Adapter into the power outlet.
6. Push the ON/OFF button on the PoE converter to power on.
Specification
1. Model: WL‑WN570HA2
2. Ports: 1 x WAN/LAN 100Mbps
3. Button: 1 x Reset 8s; Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi, 3 x Signal
4. Power Supply: DC 54V/0.3A Power over Ethernet Passive, DC 48V Power over Ethernet Active
5. Wireless Standard: IEEE 802.11 a/b/g/n/ac
6. Frequency Band/Speed: 2.4GHz 300Mbps, 5GHz 867Mbps
7. Antenna: 2 x 7dBi Omni Directional Antennas
8. Wireless Security: WPA‑PSK/WPA2‑PSK encryption
9. Unit Size without antennas: 18cm x 5cm x 5cm / 7.1in x 2in x 2in LxWxH; Antenna Length: 25cm / 9.8in
10. Ethernet Cable Length: 100cm / 39.4in
11. Power Adapter Cable Length: 120cm / 47in
12. Operating Temperature: -10°C~50°C / -14°F~122°F
13. Storage Temperature: -30°C~70°C / -22°F~158°F
14. Distance: Outdoor 200m, change with the actual environment
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High‑gain Antennas
1x RJ‑45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m / 328ft.
3. Please install the product 2‑3 meters above the ground for better performance.
