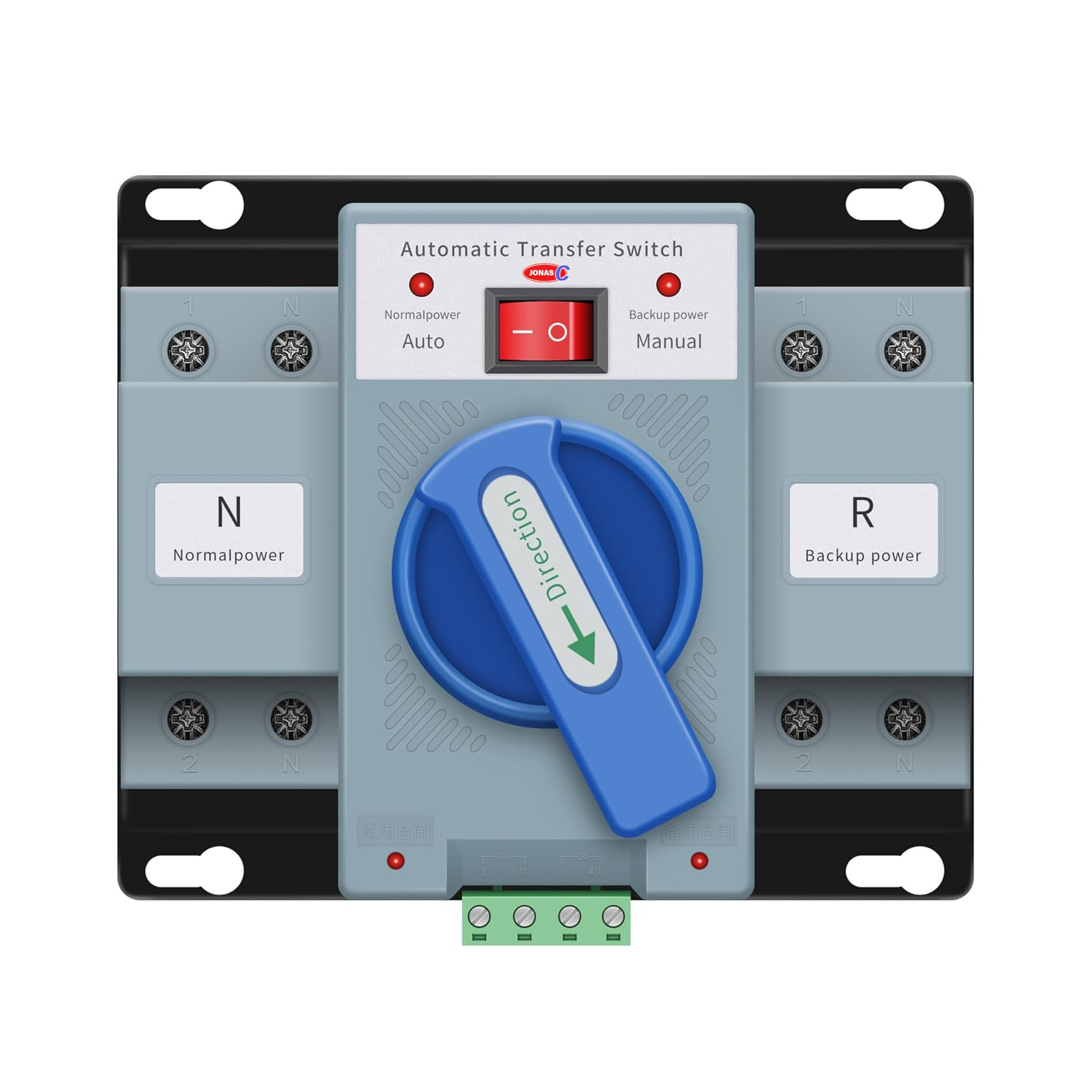

AC110V 2P 63A ATS Dual Power Automatic/Manual Transfer Switch For Sale

• Store
• New Arrivals
• Add to Favorite
• View response
• Contact

AC110V 2P 63A ATS Dual Power Automatic/Manual Transfer SwitchDescription Operation Mode Automatic,Automatically Current Rating 63 A Operating Voltage 120 volts_of_alternating_current Contact Type Normally Open Connector Type Clamp Switch Type Rotary Terminal Button Circuit Type 2-way Mounting Type Wall Mount Actuator Type Rotary Number of Positions 2 Control Method App Connectivity Protocol X-10 Wattage 6930 watts Control Type Manual & Automatic Compatible Devices Home appliances, office equipment, electronic devices Color Onecolor Item Dimensions 7.7 x 7.3 x 5.9 inches Unit Count 1 Count Number of Items 1 Material Type Plastic Contact Material Copper Specification Met Cb Model GCQ2-63/2P 63A Part Number GCQ2-63/2P 63A Material Plastic Item dimensions L x W x H 7.7 x 7.3 x 5.9 inches

Product description

• Will the device lose power during the conversion process of this dual power automatic transfer switch?

  The automatic conversion process takes about 2 seconds, and the computer and Surveillance Footage will lose power.

• Can this automatic transfer switch be used after the inverter?

  As long as the power supply voltage reaches AC 110V or AC 220V, it will switch automatically.

• Can this automatic transfer switch be mounted on a DIN rail?

  No, it is designed for wall mounting or standalone electrical cabinet installation.

• Dual Power Transfer Switch Functions and Features: This Transfer Switch is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of dual power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 2 seconds to ensure the continuity, reliability and safety of power supply. When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply. Both power supply A and power supply B can be connected to the and Manual Mode Operation: To switch to manual operation, the red button switch located at the top must be set to the Manual position; the device can then be switched between the primary and backup modes by rotating the handle. When the control mode is set to the Auto position, the transfer switch enters the automatic operating state, and the primary power source takes priority in supplying power
• Comprehensive Protection Functions: The switch supports multiple protection functions, including short circuit, overload, phase loss, and undervoltage protection. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 63A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V ( 5V). Please select the product with the corresponding specifications according to the actual working voltage you need
• Technical Parameters and Specifications: Usage class: AC-33B. Temperature range -5C to +40C average temperature not more than 35C in 24 hours. Rated short-circuit breaking capacity: 3kA. Rated short-circuit connection capacity: 3kA. Conversion time: less than 3S. Control voltage of the change-over switch is AC110V. Mechanical life of the switch is 3000 times, electric life is 1500 times. Rated insulation voltage: U=500V. Rated working current: 63A. Under normal circumstances, the switch has the function of self switching and self recovery, and the principle of power supply priority
• Wide Range of Applications: This dual power automatic transfer switch 110v ensures a stable power supply, it is used in situations where power outages cannot be sustained, which is suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators
