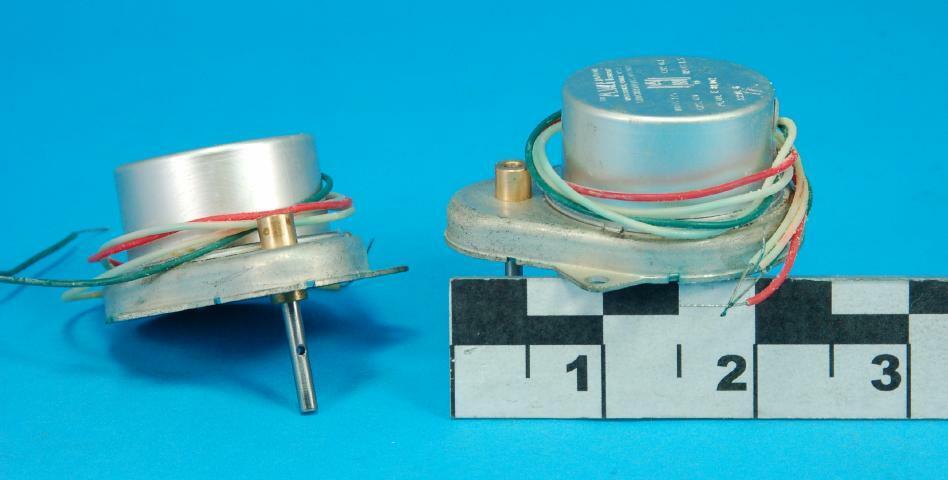

A.W. HAYDON - E81302 / K81336-P4-S3 SynchronousMotor, AC Gear Timing Motor.
The A.W. Haydon E81302/K81336-P4-S3 synchronous motor is a115V AC timing motor designed for industrial automation and motion controlapplications. With a full load amps of 1.5 watts and a rated load of 1.5W, thismotor features a TE (Totally Enclosed) enclosure type and a shaft diameter of1/8\" diameter. Made by AW Haydon in the United States, this reversible ACmotor operates at 6 base RPM with a single phase AC power supply. Ideal forprecise timing and control in various industrial settings.
A synchronous electric motor is an AC electric motor inwhich, at steady state, the rotation of the shaft is synchronized with thefrequency of the supply current; the rotation period is exactly equal to anintegral number of AC cycles.The Hansen Synchron motordistinguishes itself with low noise levels and a robust, precision gear train.The motor is permanently lubricated and requires no maintenance during itslifetime. Gear material has been selected for the quiet operation and long liferequired in time measurement instrumentation and event recording applications.
Supply: 115VAC 60Hz 1.5 watt.
Speed: 6 RPM. (One Revolution every 10 Seconds)
Frame Size: Pear Shape.
MechanicalMounting: 2-Hole Mount 1.88\" Spacing.
Weight: 4.2 oz.
Note: Reversible.
Shaft: 1/8\" D x 3/4\" long (with 1/16\" hole @midpoint).
Dimensions:2.52\" x 2.14\" x 1.13\"
With 0.1uF Capacitor required and included.
Hookup Instructions: 0.1uF 250V capacitor between Red &Green, Connect two Whites Together - 115VAC on Red & White and watch itturn.
Haydon reversible synchronous motors such as the AW HaydonE81302 have simple wiring change for reversal.
1.Identify the wiring:For a motor with three tofour leads and an external capacitor, the wiring instructions typically involveconnecting the capacitor between two leads (e.g., Red and Green).
2.Change the power connection:To reverse themotor, you move the hot (AC) power wire to a different terminal. For example,if you initially had AC power connected to the Red wire and the Whites tiedtogether, moving the AC power from the Red to the Green wire would reverse thedirection.
Applications: Teardrop-shaped and made for timing displays,sign animation and experimental purposes.
New Old Stock - Rare - Highly Discounted - Difficult Motor To Fine New
Proudly Made in USA.
Discounts are provided for purchases of 2, 3 or4 with \"Make Offer\" option provided for bulk purchases.
