92mm high Intake Manifold LS1 LS2 LS6 4.8L 5.3L 5.7L w/ Fuel Rail Throttle Body For Sale

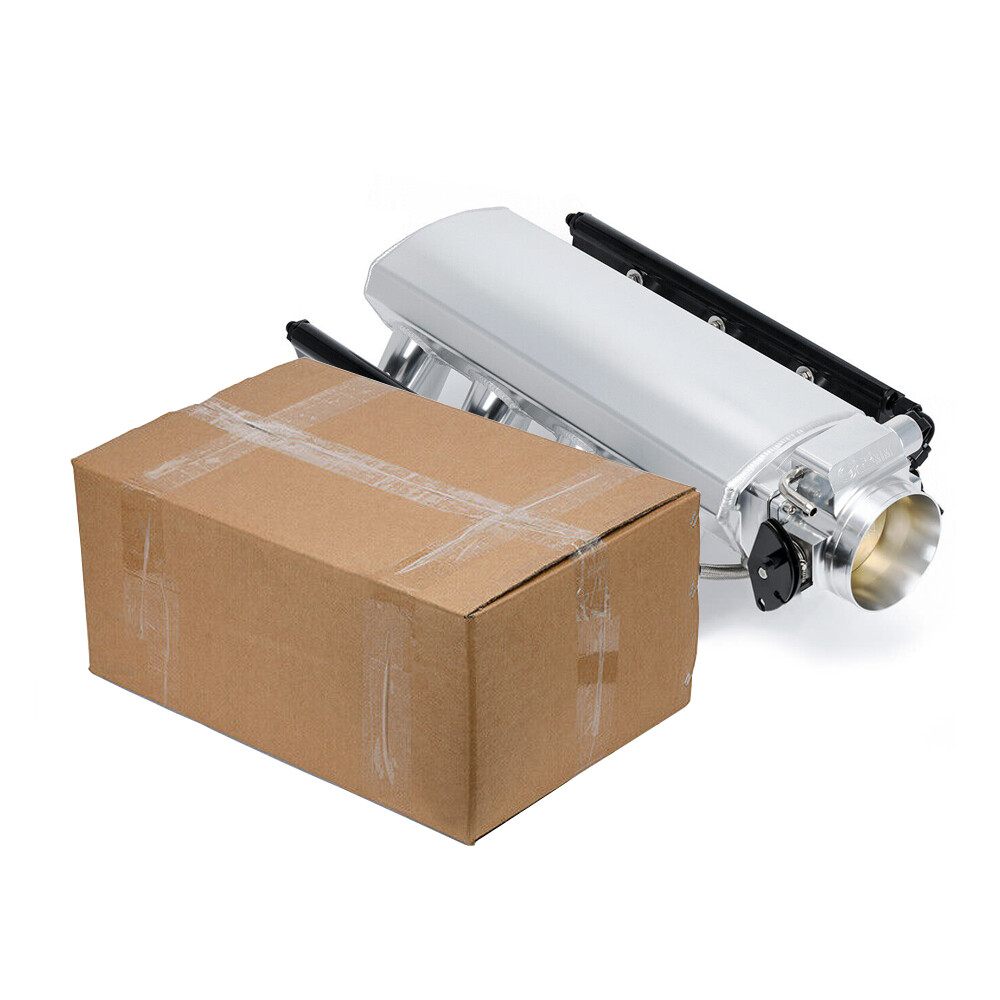

92mm high Intake Manifold LS1 LS2 LS6 4.8L 5.3L 5.7L w/ Fuel Rail Throttle Body

To explore more images of the intake manifold inside the box, please feel free to contact our online customer service.

Item Description:

• 100% quality assurance tested, more responsive, less expensive, easier to install.
• Tapered top intake runner increases air velocity, improved performance and throttle response.
• Made of high quality T6061 Aluminum Sheet with 3mm thickness.
• TIG welded by professional craftsmen.
• Able to handle 30lbs of boost and suitable for boosted and vacuum.
• Precision CNC machines head flanges.
• MAPportincluded.

Installation Steps:

Installationof the Intake Manifold:

• 1. Trial fit the intake manifold without installing the gasket. Make sure that the included mounting studs can be threaded freely into the cylinder head through the intake manifold mounting holes. The mounting flange should be properly seated.
• 2. Check the port opening alignment. Test fit fuel and vacuum plumbing, throttle linkage, wiring, etc. to ensure there are not any fit issues.
• 3. Install 8 gaskets in the groove of the base (it is recommended to apply grease to prevent falling off).
• 4. Install the mounting studs into the cylinder heads.
• 5. Put the intake manifold into place on the mounting flange.
• 6. Install the washers and bolts provided, engine oil should be applied to the threads. (see the following tightening sequence diagram)
• 7. On the underside of the intake manifold plenum area, there is a flange with 4 threaded holes. These ports will provide an adequate source of vacuum ports for the carburetor and EFI manifold. Any of these ports can be used as desired. Any unused ports can be easily plugged or NPT fittings can be capped for later use.

Installation of the Fuel Rails:

• 1.Fix the Rail Fixing Bracket.
• 2.Fix the guide rail to the bracket with screws.
• 3.The ends of the fuel rail can accommodate the supplied (AN6) fittings and (AN6) cross braided hose with (AN6) fittings on both ends.
• Installation of the Throttle Body:
• For all EFI 92mm and 102mm throttle body mounting flanges, bosses on the side of the throttle body flange for the mounting of a throttle cable bracket. The throttle body flange may work with a GM LS3 or Ford Coyote drive-by-wire throttle body.

Fitment:

Original LS1/LS2/LS6 Engine applications:

• For 04-07 Cadillac CTS V-series.
• For 06-09 Chevrolet Chevrolet TrailBlazer SS.
• For 97-07 Chevrolet Corvette.
• For 05-06 Chevrolet SSR.
• For 01-04 Corvette Z06.
• For 98-02 Pontiac Firebird Formula, Trans AM.
• For 05-06 Pontiac GTO.
• For08-09 Saab 9-7X Aero.

Vehicle compatibility charts are for REFERENCE ONLY. Check product type and size to match your needs.

For LS1 LS2 LS6 (6.0L 5.6L 5.3L 4.8L).

For Chevrolet Small Block V8 GEN. III/ IV(LS-Based):

• 4.8L/ 293 CI (LR4).
• 5.3L/ 325 CI (L33, L59, LM4, LM7).
• 5.7L/ 346 CI (LS1, LS6).
• 6.0L/ 364 CI (LQ4, LQ9, LS2).

Material & Color:

• Material: Made of high quality T6061 Aluminum Sheet with 3mm thickness.
• Color: As Picture.

Package Included:

• 1x92MM Intake Manifold.
• 1x92MM Throttle Body.
• 1x Fuel Crossover Line.
• 2x Fuel Rails.
• 4xAir Outlet Plug.
• 4x AN6 Fuel Rail Adapters.
• 1x Fuel Rail Block-off Plug, Gasket and other fitting hardware. (100% Brand New Never Used Or Installed)

Note:

• Provide Tracking Number With Every Order, Please Buy With Confidence!
• No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.
• Will come with everything you see in the picture. Please allow difference due to manual measurement.
• Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
• For any inquiries or special requests such as larger amount ordering please write to us.
