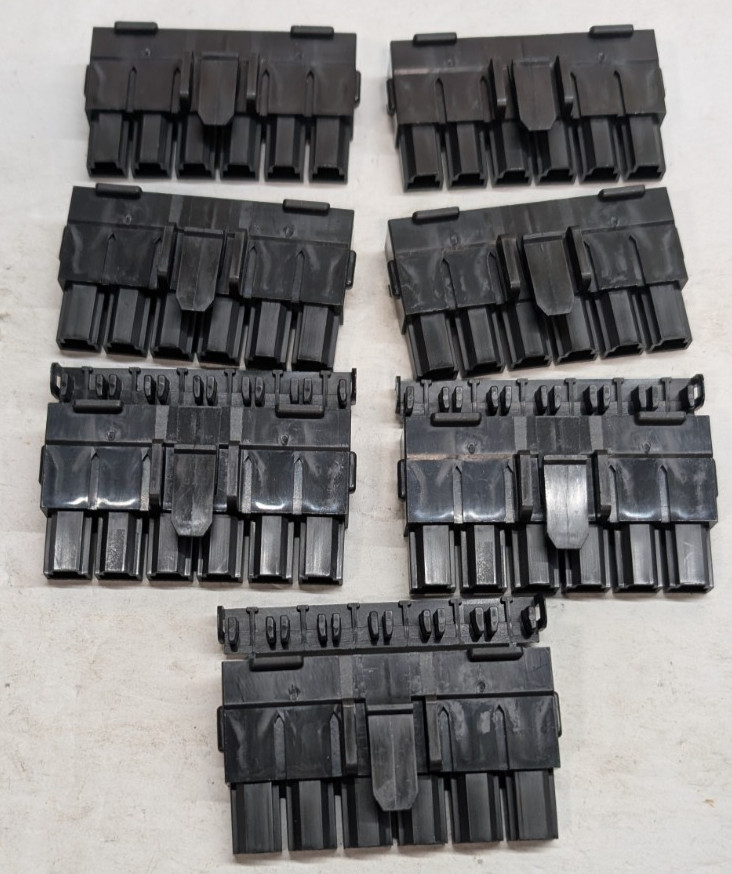

Lot of 7 genuine Molex Mini-Fit Sr.™ receptacle housings.
Manufacturer: Molex
Series: Mini-Fit Sr. 42816
Part number: 42816-0612 / 0428160612 / 428-16-0612 / MOL428-16-0612
Bag label: Heilind Electronics / Wire Techniques Ltd. — Customer P/N 428-16-0612 — MFG P/N MOL428-16-0612 — “6POS .393 MF SR RECPT HSG” — date 04/06/05 — green lot sticker P/N MOLX-42816-0612, 6 POS. REC. BUILT-IN T.P.A.
Condition: New old stock (NOS). Unused housings from original distributor bag. Some pieces are missing the snap-on TPA / retention cover (the long latch bar with numbered 1–6 positions).
Technical specs
- Gender: Female / receptacle housing
- Circuits: 6
- Rows: 1 (single row)
- Pitch: 10.00 mm (0.394\" / .393\")
- Color: Black
- Material: Polyester (PBT), UL 94V-0
- Mounting: Free-hanging / cable (wire-to-wire or wire-to-board)
- Lock: Positive latch to mating part, polarized
- TPA: Terminal Position Assurance clip designed into this P/N (included on some units)
- Operating temp: −40 °C to +105 °C
- Voltage: 600 V
- Current: up to 50 A per contact (depends on wire gauge and 42815 terminal; see Molex PS-42815)
- Contacts: Not included — use Molex 42815 female crimp terminals
- Mates with: 42818-0612 plug housing; 42819 vertical / 42820 right-angle 6-circuit headers
- Agency: UL E29179, CSA LR19980, TUV
- RoHS: Compliant on current production of this P/N
- Approx. housing length: 63.5 mm
- Net weight (each, complete): ~12 g
Country of origin: Typically Malaysia for current Mini-Fit Sr. 42816 production (RS / Rapid list MY). This Heilind bag does not print COO on the label.
Applications: High-current power, industrial equipment, telecom, medical, gaming/vending, wire harness repair.
